The coefficient of thermal expansion describes how the size of an object changes with a change in temperature. Specifically, it measures the fractional change in size per degree change in temperature at a constant pressure, such that lower coefficients describe lower propensity for change in size.

What does coefficient of thermal expansion depend on?

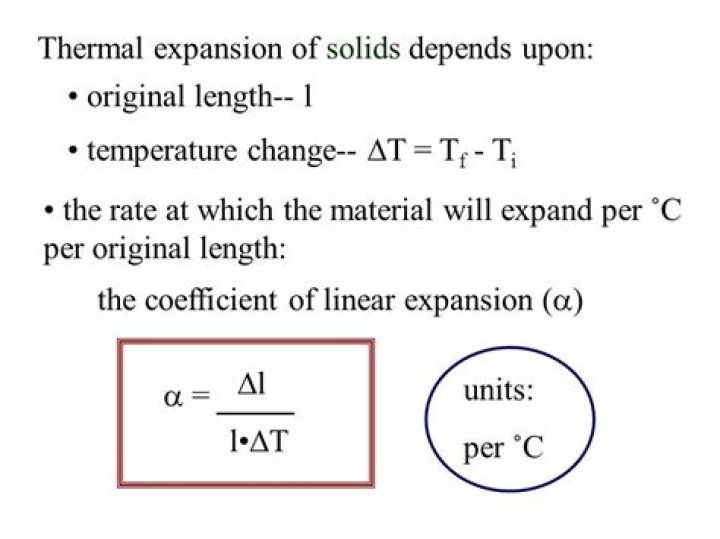

It increases in length, breadth, and thickness. The increase in length of any side of a solid will depend on the original length l₀, the rise in temperature t, and the coefficient of linear expansion α. The value of the coefficient of expansion varies from substance to substance.

What affects the coefficient of thermal expansion?

The amount by which it expands depends on three factors: its original length, the temperature change, and the thermal (heat) properties of the metal itself. Some substances simply expand more easily than others. ... The ease with which a substance expands is given by its coefficient of expansion.

What does high coefficient of thermal expansion mean?

This coefficient is called the coefficient of thermal expansion and is used to predict the growth of materials in response to a known temperature change. ... The higher a coefficient of thermal expansion a material has, the more it will expand in reaction to being heated.

How do you use thermal expansion coefficient?

1. Find the original length of the object. ...
2. Find the coefficient of thermal linear expansion. ...
3. Find the initial temperature. ...
4. Find the final temperature. ...
5. Calculate the change in length. ...
6. Verify The Result. ...
7. Calculate the Sensitivity Coefficient (Optional)

Origin of thermal expansion coefficient

What is thermal expansion example?

The expansion of alcohol in a thermometer is one of many commonly encountered examples of thermal expansion, which is the change in size or volume of a given system as its temperature changes. The most visible example is the expansion of hot air.

What is thermal expansion measured in?

Thermal expansion refers to a fractional change in size of a material in response to a change in temperature. For most materials, over small temperature ranges, these fractional changes… uses the SI unit inverse kelvin (K⁻¹ or 1/K) or the equivalent acceptable non SI unit inverse degree Celsius (°C⁻¹ or 1/°C).

Why is the thermal expansion coefficient important?

The coefficient of thermal expansion is an important factor when welding two dissimilar base metals. Large differences in the CTE values of adjacent metals during cooling will induce tensile stress in one metal and compressive stress in the other.

What happens thermal expansion?

Thermal expansion is where an object expands and becomes larger due to a change in its temperature. A higher temperature means that the molecules are moving faster on average, causing them to take up more space. Consequently, objects that are heated up increase in size.

What is the meaning of coefficient of expansion?

: the ratio of the increase of length, area, or volume of a body per degree rise in temperature to its length, area, or volume, respectively, at some specified temperature, commonly 0° C, the pressure being kept constant. — called also expansivity.

Is coefficient of thermal expansion constant?

The coefficient of thermal expansion (CTE) refers to the rate at which a material expands with increase in temperature. More specifically, this coefficient is determined at constant pressure and without a phase change, i.e. the material is expected to still be in its solid or fluid form.

Does thermal expansion coefficient change with temperature?

Thermal expansion is the tendency of matter to change in volume in response to a change in temperature. ... The degree of expansion divided by the change in temperature is called the material's coefficient of thermal expansion; it generally varies with temperature.

Why does coefficient of thermal expansion decrease with increasing bond energy?

When a material is heated, molecular activity increases and the energy stored in the bonds between atoms is changed. With the increase in stored energy, the length of molecular bonds also increases. ... With an increase in energy of bond thermal expansion usually decreases, due to which the hardness of solids is affected.

What do you understand by coefficient of thermal conductivity?

Coefficient of thermal conductivity of a material is defined as the quantity of heat conducted per second through a unit area of a slab of unit thickness when the temperature difference between its ends is 1K.

What is the coefficient of area expansion?

Coefficient of Area Expansion is defined as degree of area expansion divided by the change in temperature. This means there is increase in area of an object with the change in temperature. It is characteristic of the substance and it varies with temperature.

What is thermal expansion and its types?

Thermal expansion refers to the expansion or contraction of the dimensions of the solid, liquid or gas when their temperature is changed. There are three types of thermal expansion depending on the dimension that undergo change and that are linear expansion, areal expansion and volumetric volume.

What is thermal expansion?

Thermal expansion is the tendency of matter to change in shape, volume, and area in response to a change in temperature. Temperature is a monotonic function of the average molecular kinetic energy of a substance. ... Thereby, the molecules start to vibrate and move more and usually maintain a greater average separation.

What is thermal expansion in short?

thermal expansion, the general increase in the volume of a material as its temperature is increased. ... If it is not isometric, there may be different expansion coefficients for different crystallographic directions, and the crystal will change shape as the temperature changes.

What is thermal expansion write only its types?

Thermal expansion defines the tendency of an object to change its dimension either in length, area or volume due to heat. ... Depending on the type of expansion thermal expansion is of 3 types: Linear expansion. Area expansion. Volume expansion.

What is coefficient of thermal expansion in dentistry?

The linear thermal coefficient of expansion of a material is a measure of how much it expands per unit length if heated 1 degree higher. ... The thermal coefficient of expansion for a solid, such as a dental wax, generally increases at some point as the temperature is increased.

What are 2 examples of thermal expansion?

• If you have ever tried to unscrew a stuck lid off a glass jar, you'll appreciate this expansion effect. ...
• Bridges have a long span and in hot weather the materials that the bridge is made of will expand. ...
• A liquid, when heated, will expand and can be made to rise up a tube.

What is thermal expansion in solid?

In physics, Thermal expansion can be defined as the change in the length, width, height, or volume of any material on changing the temperature. Thermal expansion is very evident in solids as atoms are densely packed. Thermal expansion of solids has loads of applications in day to day life.

What causes high thermal expansion?

The thermal expansion of liquids is usually higher than in solids because of weak intermolecular forces present in liquids. Thermal expansion of solids usually shows little dependence on temperature, except at low temperatures, whereas liquids expand at different rates at different temperatures.

Which material has highest coefficient of thermal expansion?

Aluminium has high coefficient of thermal expansion of about 22×10^-6K^-1. Aluminium has an elastic modulus of 70 GPa.
