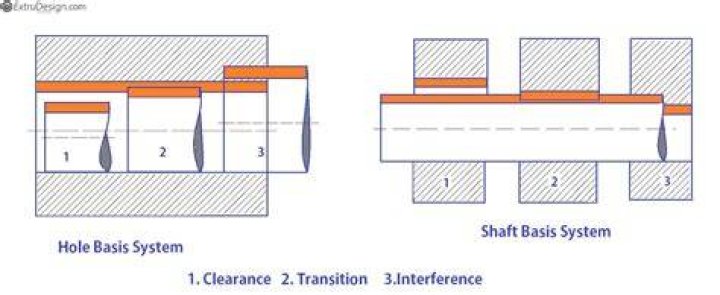

In the hole basis system, the basic diameter of the hole is constant while the shaft size varies according to the type of fit. This system leads to greater economy of production, as a single drill or reamer size can be used to produce a variety of fits by merely altering the shaft limits.

What is mean by hole basic system?

In a hole basis system, the hole is kept as the constant, and the shaft upper and lower deviation values determine the type of fit. In a hole basis system, the Lower deviation of the hole will be Zero.

What is hole basis system in engineering?

In Hole basis system the hole is kept to constant and the shaft size is changed according to the different types of fit. In this method, depending upon the basis size lower limit follows the size of basis, this is due to the lower deviation of the hole is zero in this system.

Why do we use hole basis system?

The hole basis system is commonly used because it is more convenient to make correct holes of fixed sizes, since the standard drills, taps, reamers and branches etc. are available for producing holes and their sizes are not adjustable. On the other hand, size of the shaft produced by turning, grinding, etc.

Why is the hole basis system adopted in all modern system of fits?

52. Hole Basis systems This system is widely adopted in industries, easier to manufacture shafts of varying sizes to the required tolerances. Standard-size plug gauges are used to check hole sizes accurately.

Hole Basis System & Shaft Basis System (3D Animation)

How holes shafts and fits are designated explain with suitable example?

The fits are two digit letter/number designations where the hole basis fits are noted with a capital letter (H7) while the shaft basis fits are noted with a lower case letter (h7). ... For example, using a H7 hole basis as a reference, a strong interference fit would utilize a t6 shaft specification.

What is it in the system of fits?

In engineering, a fit refers to the clearance between two mating parts. The choice of an engineering fit determines whether the two parts can move relative to each other in case of a clearance fit, or act as a whole in case of a tight interference fit.

Why do we prefer hole basis system over a shaft basis system?

The Hole basis system is referred to in mass production because it is convenient and less costing to make a hole of correct size due to availability by stand grills. It is more easily to vary a shaft size according to the fit required. It requires less amount of capital and storage space.

Which deviation is zero in hole basis system?

In this system, the upper deviation of the shaft is zero, i.e. the upper limit of the shaft is same as basic size.

What is hole in metrology?

When the hole is at its upper limit the minimum amount of metal is left. The limit of 20.05 mm is therefore called the least or minimum metal limit (LML). When the hole is at its lower limit the maximum amount of metal is left and hence the limit of 19.95mm is called the maximum metal limit (MML).

What is go limit?

Explanation: 'Go limit' deals with upper limit of shaft and lower limit of hole and refers to the maximum material condition. 'No-go' limits deals with lower limit of shaft and upper limit of hole and refers to the minimum material condition.

Why tolerances are given to the parts?

Explanation: Tolerances are provided to the parts because variations in the material properties introduce errors and production machines themselves have inherent inaccuracies. Another reason to introduce tolerance is that it is not possible to make perfect settings by operator so some tolerances are provided.

What are the types of fit?

• Clearance Fit. Clearance fits allow for loose mating, where free movement is important and a certain amount of play is desired. ...
• Interference Fit. An interference fit will be much tighter than a clearance fit. ...
• Transition Fit.

What is difference between Limit fit and tolerance?

Two extreme permissible sizes of a part between which the actual size is contained are called limits. The relationship existing between two parts which are to be assembled with respect to the difference on their sizes before assembly is called a fit. Tolerance is defined as the total permissible variation of a size.

What is the difference between tolerance and allowance?

A tolerance is the planned limit of acceptable unintended deviation from a nominal or theoretical dimension. ... In contrast, an allowance is a planned deviation from the nominal or theoretical dimension.

What is meant by nominal size and tolerance?

NOMINAL SIZE : The size used for general description. Example; 7/8 inch Shaft, 25mm Shaft etc. BASIC SIZE : The size used when the nominal size is converted to the decimal and from which deviation are made to produce limit dimension. ... Tolerance equals the difference between lower and upper limit dimensions.

What is upper and lower deviation?

Upper Deviation: It is the algebraic difference between the maximum size and the basic size. The upper deviation of a hole is represented by a symbol ES (Ecart Superior) and of a shaft, it is represented by es. Lower Deviation: It is the algebraic difference between the minimum size and the basic size.

Which grades are available in shaft assembly?

5. Which grades are available in shaft 'j' assembly? Explanation: Shaft 'j' is a transition fit and available in grades 5 to 11. It is good for location fits which require less clearance than 'h' and also where a slight interference is permitted.

What is clearance in engineering metrology?

Clearance − Clearance in a fit is when the difference between the sizes of the hole and the shaft before being assembled is when the difference is positive. ... In transition, the upper limit size of the hole is smaller or at least equal to the amount of the lower limit size of the shaft.

What is basic shaft and basic hole?

Basic hole means whose lower limit is basic size. and basic shaft means whose upper deviation is zero.

What is the name of system if the size of the hole is kept constant shaft is?

Explanation: Hole basis System: The size of the hole is kept constant and the size of the shaft is varied to get the different classes of fits. In this system, a lower deviation of the hole is zero, i.e. the low limit of the hole is the same as basic size.

What is the name of system if the size of the hole is kept constant shaft is varied?

Hole Basis System:

In the hole basis system, the size of the hole is kept constant and shaft sizes are varied to obtain various types of fits. In this system, lower deviation of hole is zero, i.e. the low limit of hole is same as basic size.

What is H7 g6 fit?

Loose running fit for wide commercial tolerances or allowances on external members. ... Close running fit for running on accurate machines and for accurate location at moderate speeds and journal pressures. H7/g6. G7/h6. Sliding fit not intended to run freely, but to move and turn freely and locate accurately.

Is fits a basic hole system?

Hole and shaft basis

In a hole-basis system, the size of the hole remains constant and the diameter of the shaft is varied to determine the fit; conversely, in a shaft-basis system the size of shaft remains constant and the hole diameter is varied to determine the fit.

Is H7 a press fit?

H8/s7, H8/t7, H7/s6, H7/t6, S7/h6, T7/h6 Pressed fits with medium interference. Assembly of parts using hot pressing. Assembly using cold pressing only with use of large forces.
