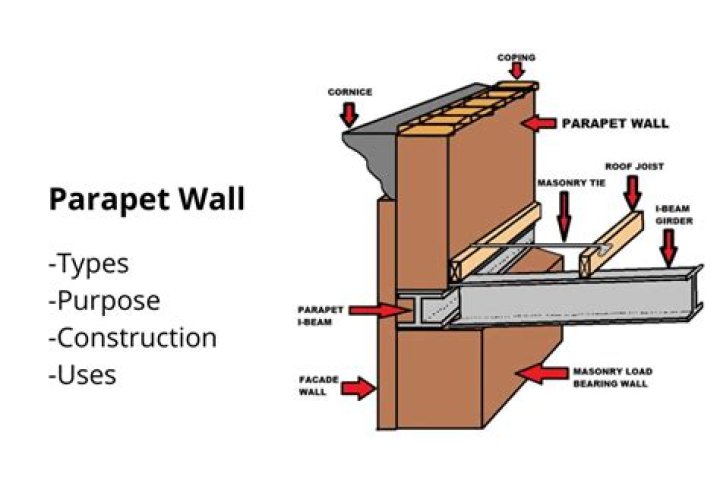

parapet, a dwarf wall or heavy railing around the edge of a roof, balcony, terrace, or stairway designed either to prevent those behind it from falling over or to shelter them from attack from the outside.

What is a parapet on a building?

Parapets are aesthetic features of many buildings—typically vertical extensions of exterior walls used to create architectural elements, conceal rooftop mechanical equipment, or perform other functions.

What is the purpose of a parapet wall?

Parapet walls perform a number of important functions: They can be designed in various shapes to create a desired façade. They can be designed to hide roof top equipment (AC units, etc.) They help prevent roof edge blow off by diverting air flow up, over and away from the roof edge.

Why parapet is required in a building?

It is needed to protect the interior space of the terrace of the buildings. It ensures the safety of the occupants using the roof. It helps to improve the aesthetical appearance of the buildings. When the parapet wall is constructed on the rooftop, space is made which can be used for various purposes.

What is a parapet wall on a house?

A parapet is typically the uppermost reaches of a wall that extends above the roof level and provides a degree of protection to roof, gutters, balconies and walkways of houses, churches, castles, apartment blocks, commercial and other buildings. It may be constructed from brick, stone, concrete, timber or even glass.

PARAPET CONSTRUCTION THE WAY TO DO IT

How is parapet wall?

A parapet wall is a low or dwarf wall built along the edge of the roof, terrace, walkway, balcony etc. Parapet walls can be constructed using different materials like reinforced cement concrete, steel, aluminium, glass etc. Different types of parapet walls and their uses are discussed below.

What is parapet in civil engineering?

What Is Parapet Wall? Parapet walls are short and thin walls constructed at the edges of a building's roof, preferably around its perimeter. It can be constructed in the form of balustrade or other architectural shapes. Parapets can also be found in houses, bridges, walkways, and balconies.

Does a flat roof need a parapet?

Most flat roofs have a parapet.

They hide necessary roofing materials including drains and vents. They protect furniture and other objects from falling off the roof (If the roof is being used as a public space or terrace)

Is a parapet wall part of a roof?

Where extending above a roof, a parapet may simply be the portion of an exterior wall that continues above the edge line of the roof surface, or may be a continuation of a vertical feature beneath the roof such as a fire wall or party wall.

What is the minimum height of parapet wall?

According to the existing development control rules, the surrounding parapet wall should be of at least three feet and three inches (one metre) high.

What is the advantage of the parapet?

If you're thinking of roof restoration or roof replacement for a flat roof, then these are some of the advantages of having parapets: Fire protection. When the wall is extended above the roof plane, it can stop flames from coming up the exterior of the building and immediately igniting the roofing membrane.

What are the types of parapet?

• Plain Parapet Walls.
• Embattled Parapet Walls.
• Perforated Parapet Walls.
• Panelled Parapet Walls.

What is the top of a parapet wall called?

Slope of Coping

The top of a parapet wall is called coping (more on coping in the next section).

What is the difference between a balcony and a parapet?

As nouns the difference between balcony and parapet

is that balcony is an accessible structure extending from a building, especially outside a window while parapet is a low retaining wall.

How tall is a parapet wall?

Parapet wall height:- standard height of parapet wall should be 36″ or 3 feet for full brick wall construction as a parapet wall above the roof, along the edge of roof that surrounding its perimeter, extension of exterior wall.

How tall is a roof parapet?

In order for a roof parapet to provide adequate fall protection, a roof parapet railing should be at least 42" in height. Unfortunately, many buildings get close to this height without quite meeting the height required by OSHA to provide fall protection.

What is the top edge of a building called?

In architecture, a cornice (from the Italian cornice meaning "ledge") is generally any horizontal decorative moulding that crowns a building or furniture element—for example, the cornice over a door or window, around the top edge of a pedestal, or along the top of an interior wall.

What is the sentence of parapet?

Parapet sentence example. The parapet on top was some 3 ft. The living casemates were under the gorge parapet . Fort Chi-Kuan had no artillery parapet .

What is a bridge parapet?

Precast Bridge Parapets units act as a safety barrier and are often installed at the edge of bridges or retaining walls to provide protection for vehicles and pedestrians against an adjacent vertical drop.

What is an upstand in construction?

The job of an upstand (sometimes referred to as a Kerb) is to lift the glass element of your rooflight off of the roof's surface, and is required by building regulations for safety and weathering reasons. The upstand must be at least 150mm in height and should a minimum pitch of at least 3 degrees.

What is parapet coping?

This unique type of cap is designed to cover the top of parapet walls. Many buildings have flat roofs in certain areas specifically for air condoning units and etc. At the edge of these roofs, parapet walls are commonly found, and are vulnerable to leaks if not flashed correctly.

Is parapet wall reinforced?

All corners of masonry parapet walls shall be reinforced with joint reinforcement or its equivalent at vertical intervals not greater than 12 inches (305 mm). ... Concentrated loads shall be supported upon construction of solid masonry, concrete, or masonry of hollow units with cells filled with mortar, grout, or concrete.

What does a parapet on a roof look like?

In modern home building, parapet roof additions are a safety feature. They also add a stylized, finished look to any roofline. Modern parapets are made to look more like a railing around the roofline, a nice finishing touch that's highly decorative. ... Originally, parapets were low walls on the roof of any structure.
