It produces an output when triggered. Multivibrators are characterized by amplifying devices (transistors) and cross coupled devices (registers, capacitors). ... Astable multivibrator is internally triggered, whereas the other two types are externally triggered.

What is an astable multivibrator used for?

The astable multivibrator is used as the wave generator. It is used as voltage-frequency converter. It is used in pulse synchronization. Since it produces square waves, it is a source of production of a harmonic frequency of higher order.

How does a astable multivibrator work?

The basic principle of the Astable multivibrator is a slight variation in the electrical properties or characteristics of the transistor. This difference causes one transistor turn ON fast than the other when power is applied for the first time, thereby triggering oscillations.

Why astable multivibrator is called astable?

An astable multivibrator is also known as a FREE-RUNNING MULTIVIBRATOR. It is called free-running because it alternates between two different output voltage levels during the time it is on. The output remains at each voltage level for a definite period of time. ... The astable multivibrator is said to oscillate.

How many stable states are there in astable multivibrator?

The basic difference among the types of multivibrator is the number of stable states associated with each type. The bistable has two stable states, the monostable has one stable state (and one quasi-stable state), and the astable has no stable states (two quasi-stable states). The waveforms of.

Classic Circuits You Should Know: Astable Multivibrator

What is Astable multivibrator using op amp?

The Op-amp Multivibrator is an astable oscillator circuit that generates a rectangular output waveform using an RC timing network connected to the inverting input of the operational amplifier and a voltage divider network connected to the other non-inverting input.

What is meant by Astable multivibrator?

Astable multivibrator, in which the circuit is not stable in either state —it continually switches from one state to the other. It functions as a relaxation oscillator. ... It can be flipped from one state to the other by an external trigger pulse. This circuit is also known as a flip-flop.

What is the other name of Astable Multivibrator?

In electronic circuits, astable multivibrators are also known as Free-running Multivibrator as they do not require any additional inputs or external assistance to oscillate.

How do you find the symmetrical waveform of Astable Multivibrator?

Explanation: Symmetrical square wave can be obtained by adding a clocked JK flip-flop to the output of Astable multivibrator. The clocked flip-flop acts as a binary divider to the times output and produces 50% duty cycle without any restriction on the choice of resistors.

Which multivibrator has two stable states?

Bistable Multivibrators have TWO stable states (hence the name: “Bi” meaning two) and maintain a given output state indefinitely unless an external trigger is applied forcing it to change state.

What are the characteristics of astable multivibrator?

It is also called free-running relaxation oscillator. It has no stable state but only two quasi-stable states between which it keeps oscillating continuously of its own accord without any external excitation. When one transistor is in ON state and other remains in OFF state.

What is astable multivibrator describe with proper diagram?

Construction of Astable Multivibrator

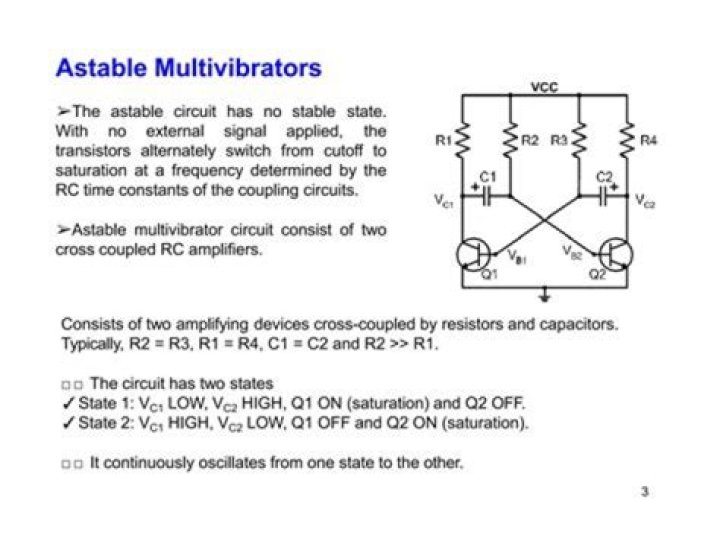

Two transistors named Q₁ and Q₂ are connected in feedback to one another. The collector of transistor Q₁ is connected to the base of transistor Q₂ through the capacitor C₁ and vice versa. ... The following figure shows the circuit diagram for Astable Multivibrator.

What are the different types of multivibrator?

• Astable Multivibrator. An Astable Multivibrator is such a circuit that it automatically switches between the two states continuously without the application of any external pulse for its operation. ...
• Monostable Multivibrator. ...
• Bistable Multivibrator.

What is true about astable multivibrator or a monostable multivibrator?

Explanation: Since, astable multivibrator is unstable and changes their states continually (It means that it can have both the states), whereas in monostable multivibrator, one of the states is stable, but the other state is unstable. SO Monostable Multivibrator is also known as Half-Astable Multivibrator.

What is astable multivibrator using IC 741?

The astable multivibrator is also called as a free-running multivibrator. It has two quasi-stable states i.e. no stable state such. No external signal is required to produce the changes in state. The component values used to decide the time for which circuit remains in each state.

Which one is the astable application?

Astable multivibrators are used in the applications like pulse position modulation, frequency modulation, etc. as they are simple, reliable and easy to construct.

What is the duty cycle of astable multivibrator?

Astable multivibrators generally have an even 50% duty cycle, that is that 50% of the cycle time the output is “HIGH” and the remaining 50% of the cycle time the output is “OFF”.

How can astable multivibrator be used as a voltage to frequency converter?

The same circuit is also called a voltage-to-frequency converter (VFC) because a given voltage gives rise to a specific frequency. An astable multivibrator is used as voltage-controlled oscillator [see Fig. 7.13(a)]. ... As a result, the voltage at the base of Q ₂, V _B2 varies with time, ...

How is an astable multivibrator connected into a pulse position modulator?

In order to achieve Pulse Position Modulation, two 555 timer IC's are used in which one operates in astable mode and the other in monostable mode. The modulating signal is applied at the Pin 5 of the first IC 555 that is operating in astable mode. The output of this IC 555 is a pulse width modulated wave.

Why do we call astable multivibrator as free running multivibrator?

Astable Multivibrator. An astable multivibrator is also known as a FREE-RUNNING MULTIVIBRATOR. It is called free-running because it alternates between two different output voltage levels during the time it is on. The output remains at each voltage level for a definite period of time.

How can you design an astable multivibrator?

Designing Astable Multivibrator Circuit On A PCB

The calculation is fairly simple as the period for the off state of the transistor is given by the 0.69 x RC. An equal value for the RC constant of both sets of resistors and capacitors will produce a 50% duty cycle of the waveform.

What is multivibrator PDF?

A MULTIVIBRATOR is an electronic circuit that generates square, rectangular, pulse waveforms, also called nonlinear oscillators or function generators. Multivibrator is basically a two amplifier circuits arranged with regenerative feedback.

What is astable multivibrator using 555 timer?

The 555 timer IC affords exact time delay from ms to hours. ... Astable multivibrator using 555 IC is a simple oscillator circuit that generates continuous pulses. The frequency of the circuit can be controlled by shifting the values of resistors R1, R2 ad capacitor C1.

Is astable multivibrator is saturated?

Astable multivibrator using OP-AMP

The two states of the circuit between which it switches are those in which the amplifier output is at positive and negative saturation. ... The positive feedback from the output to terminal A causes a regenerative switching which drives the amplifier to positive saturation.

What is an op amp and what does it do?

An operational amplifier is an integrated circuit that can amplify weak electric signals. An operational amplifier has two input pins and one output pin. Its basic role is to amplify and output the voltage difference between the two input pins.
