Siphon Aqueduct: Siphon aqueduct refers to the cross drainage structure in which an irrigation canal is passing over the drainage. However, the drainage water cannot pass clearly underneath the canal and it flows under siphonic action. In siphon aqueduct, the H.F.L of the drain is situated above the canal bed.

What is the condition in a Syphon Aqueduct?

Explanation: In siphon aqueducts, the uplift due to water table acts where the bottom floor is depressed below the drainage bed. The maximum uplift under the worst condition is when there is no water flowing in the drain and the water table has risen up to drain bed. 6.

What is Syphon in irrigation?

Siphon tubes are a basic implement used in irrigation to transfer water over a barrier (such as the bank of a raised irrigation canal), using the siphon principle. ... To work they rely on the water level in the canal being at a higher level than the water level in the field being irrigated.

What is canal Aqueduct?

Navigable aqueducts (sometimes called water bridges) are bridge structures that carry navigable waterway canals over other rivers, valleys, railways or roads.

What is an aqueduct used for?

Gravity and the natural slope of the land allowed aqueducts to channel water from a freshwater source, such as a lake or spring, to a city. As water flowed into the cities, it was used for drinking, irrigation, and to supply hundreds of public fountains and baths.

Syphon Aqueduct Design and Drawing Part 1 Module 3 DHS CE302

How does a canal siphon work?

Canal Syphon:

In a canal syphon, drainage is carried over canal similar to a super passage but the full supply level of canal is above than the drainage trough.so the canal water flows under syphonic action and there is no presence of atmospheric pressure in canal. ... This structure is a reverse of Syphon aqueduct.

What is Syphon aqueduct and why do we construct it?

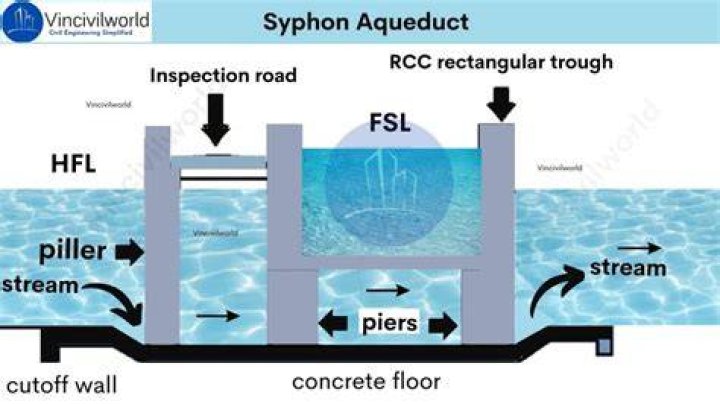

Siphon Aqueduct • In a hydraulic structure where the canal is taken over the drainage, but the drainage water cannot pass clearly below the canal. It flows under siphonic action. So, it is known as siphon aqueduct. This structure is suitable when the bed level of canal is below the highest flood level.

Where is siphon used?

Application or Uses of Siphon:

To carry water from one reservoir to another reservoir separated by a hill or ridge. To take out the liquid from the tank which is not having any outlet. To empty a channel not provided with any outlet sluice.

What means siphon?

b usually syphon : a bottle for holding aerated water that is driven out through a bent tube in its neck by the pressure of the gas when a valve in the tube is opened. 2 : any of various tubular organs in animals and especially mollusks or arthropods that are used for drawing in or ejecting fluids.

What is the difference between aqueduct and canal?

is that canal is an artificial waterway, often connecting one body of water with another while aqueduct is an artificial channel that is constructed to convey water from one location to another.

What is FSL in irrigation?

➢The canal water level is referred as full supply level (FSL) and. drainage water level is referred as high flood level (HFL). The HFL is below the canal bed level.

Which of the following statement is not correct about canal Syphon?

Which of the following statement is not correct about canal syphon? Explanation: For siphoning higher discharges, horseshoe-shaped, rectangular or circular barrels are adopted. For siphoning small discharges, precast RCC pipes are adopted. 5.

What do you mean by canal wings and drainage wings?

(ii) Drainage wings or Water wings or River wings: These wing walls retain and protect the earthen slopes of the canal, guide the drainage water entering and leaving the work, and join it to guide banks and also provide a vertical cut-off for the water seeping from the canal into the drainage bed.

What is the static uplift on the bottom floor of the barrel of an Syphon Aqueduct *?

Particularly in case of siphon aqueduct whose floor bed is depressed below the bed of the drainage, static uplift pressure acts on the floor bed. The uplift pressure is equal to the difference of the bed level of the drain and that of the floor level of the barrel.

What is the main function of a diversion head works of a canal from a river?

Detailed Solution. Diversion head works like Weir or barrage is constructed across a perennial river to raise water level and to divert the water to canal, is known as diversion head work Flow of water in the canal is controlled by canal head regulator.

What does siphon mean in economics?

to move money from one bank account to another, especially illegally or dishonestly. They had siphoned off millions of pounds into their personal accounts.

What does siphon off mean?

transitive verb. : to convey, draw off, or empty by or as if by a siphon —often used with off. intransitive verb.

What is canal outlet?

A canal outlet or a module is a small structure built at the head of the water course so as to connect it with a minor or a distributary channel. It acts as a connecting link between the system manager and the farmers.

What do you mean by canal losses?

When water flows continuously through a canal, losses take place due to seepage, deep percolation and evaporation. These losses are sometimes known as transmission losses. These should be properly accounted for; otherwise lesser quantity of water will be available for cultivation at the tail end.

What are canal falls?

Canal fall is a solid masonry structure which is constructed on the canal if the natural ground slope is steeper than the designed channel bed slope. If the difference in slope is smaller, a single fall can be constructed. If it is of higher then falls are constructed at regular suitable intervals.

What is canal head work?

Canal Headwork is a civil engineering term for any hydraulic structure constructed across a river and supplies water to the off taking canal. Any hydraulic structure which delivers water to off-taking canal is called a headwork.

Where canal drops are provided?

A canal fall is provided when the available natural slope is flatter than the designed bed slope of the channel. Explanation: When the ground has a steep slope heavy earth filling is required to construct the canal with a flatter bed slope.

What is head regulator?

 It is a structure at the head of canal taking off from a reservoir may consists of number of spans separated by piers and operated by gates.  Regulators are normally aligned at 90° to the weir. Up to 10" are considered preferable for smooth entry into canal. These are used for diversion of flow.
