A body-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube shares an atom and with one atom positioned at the center. The atom at the corners of the cube are shared with eight other unit cells. As such, each corner atom represents one-eighth of an atom.

How many atoms are in a body-centered cubic unit cell?

Body Centered Cubic

This unit cell uses nine atoms, eight of which are corner atoms (forming the cube) and one more in the center of the cube. The corners contribute only one net atom and the center atom contributes another for a total of two net atoms.

What is the atomic radius of body Centred cubic structure?

The relation between edge length (a) and radius of atom (r) for BCC lattice is √(3a) = 4r .

Which of the following materials has body-centered cubic structure?

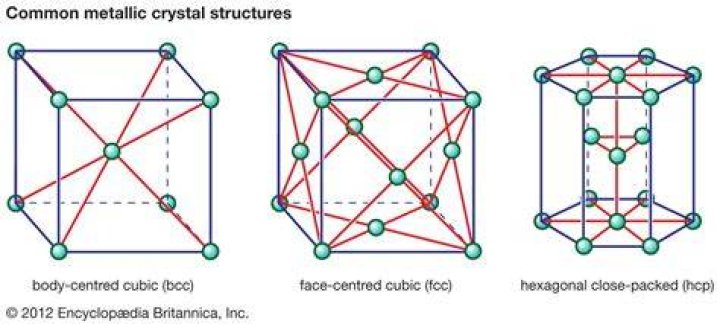

This new structure, shown in the figure below, is referred to as body-centered cubic since it has an atom centered in the body of the cube. Some examples of metals that possess this crystalline structure include the α phase of iron, chromium, tungsten, tantalum, and molybdenum.

Which of the following crystalline is in bcc structure?

Some of the materials that have a bcc structure include lithium, sodium, potassium, chromium, barium, vanadium, alpha-iron and tungsten.

Unit Cell Chemistry Simple Cubic, Body Centered Cubic, Face Centered Cubic Crystal Lattice Structu

Which of the following is an example of body Centred cube?

Sodium is an example of b.c.c. structure.

What is bcc and fcc structure?

The terms BCC and FCC are used to name two different arrangements of crystalline structures. BCC stands for body-centred cubic structure whereas FCC stands for face-centred cubic structure. ... The unit cell of BCC has spheres in the corners of a cube and one sphere in the centre of the cube.

What is body centered cubic packing?

A third common packing arrangement in metals, the body-centered cubic (BCC) unit cell has atoms at each of the eight corners of a cube plus one atom in the center of the cube. Because each of the corner atoms is the corner of another cube, the corner atoms in each unit cell will be shared among eight unit cells.

Which of the following has face Centred cubic lattice?

Metals with the fcc structure include aluminum, copper, nickel, gamma iron, gold, and silver.

Which is the example of simple cubic structure?

Examples of simple cubic crystals are beautiful air sphere and square rod crystals.

What is a body-centered cubic unit cell?

Body-centered cubic (BCC) is the name given to a type of atom arrangement found in nature. A body-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube shares an atom and with one atom positioned at the center. ... As such, each corner atom represents one-eighth of an atom.

How do you find the volume of a body-centered cubic?

1. Determine mass of two atoms in a bcc cell: 22.99 g/mol / 6.022 x 10²³ mol¯¹ = 3.81767 x 10¯²³ g (this is the average mass of one atom of Na) ...
2. Determine the volume of the unit cell: 7.63534 x 10¯²³ g / 0.971 g/cm³ = 7.863378 x 10¯²³ cm³

How do you find the density of a body-centered cubic?

Body-Centered Cubic Unit Cell: When it comes to a body-centered cubic unit cell, then the total number of atoms in a unit cell are two. This means that the value of z is two. Hence, the density of a body-centered cubic unit cell is equal to 2 x M / A3 x Na.

How many atoms are in a body centered cube assuming that all atoms occupy lattice points?

How many atoms are in a body-centered cubic, assuming that all atoms occupy lattice points? The BCC contains 2 atoms. This type of cell consists of one central atom and eight 1/8 atoms in each corner of the unit cell. This adds up to 2 total atoms in the unit cell.

What is the volume of face Centred cubic structure?

The APF of an FCC structure is equal to the volume of the atoms in the unit cell divided by the volume of the unit cell. To further break this down, we can express “a” in term of “r”. Cancelling common terms, we get APF_FCC = 0.74. In other words, 74% of the volume of the unit cell is occupied by atoms.

What percentage of space occupied in body centered cubic structure?

Hence, we can conclude that the correct option is (B) that is the percentage of free space in a body centred cubic unit cell is 32%.

What is a face Centred cubic structure?

FCC is formally defined as a cubic lattice with the face positions fully equivalent to each of the eight corners. Face Centred Cubic structures are, as the name implies, based around "faces" of a cube with an atom at each of the corners and one at the centre of each face.

What is the dominant characteristic of body centered cubic metals?

BCC structures have no close packed planes. Its coordination number is just the number of equidistant neighbors from the atom in the center of the unit cell. BCC coordination number is therefore 8, as each cube corner atom is the nearest neighbor.

How many lattice points are there in the body centered cubic?

Answer: One unit cell of body centered has 8 lattice points are corners and 1 lattice points at faces, total 9 lattice points.

What's the packing efficiency of the body centered cubic structure?

The volume of the unit cell is given as. Therefore, packing efficiency of BCC is 68.04%.

What is the difference between face Centred cubic and body Centred cubic?

body-centered cubic: There is one atom or ion in the center of the unit cell in addition to the corner atoms or ions. face-centered cubic: There are also atoms or ions in the center of each of the six faces of the unit cell.

Is Tungsten a BCC or FCC?

Metallic Tungsten adopts the close packed body centred cubic structure.

What is the difference between CCP and FCC?

CCP is the cubic closed packing,FCC is for face entered cubic structures. When we place the atoms in the octahedral voidsthe packing is of ABCABC type hence its known as CCP while FCC stands for the unit cell.
