How to make conductive paint recipe. Add in a small amount of Elmer's glue (hence why it can also be called electric glue). Add 2 teaspoons of graphite powder to start and mix well. Graphite is electrically conductive, so this is the ingredient that makes your paint conductive.

How do you use conductive paint?

Use an Electric Paint Tube to draw circuitry on almost any surface. Squeeze the tube gently to dispense a thin bead of paint. Leave for 15 minutes to dry and start testing. Remember that what you create doesn't need to look like a traditional circuit diagram.

What paint is conductive?

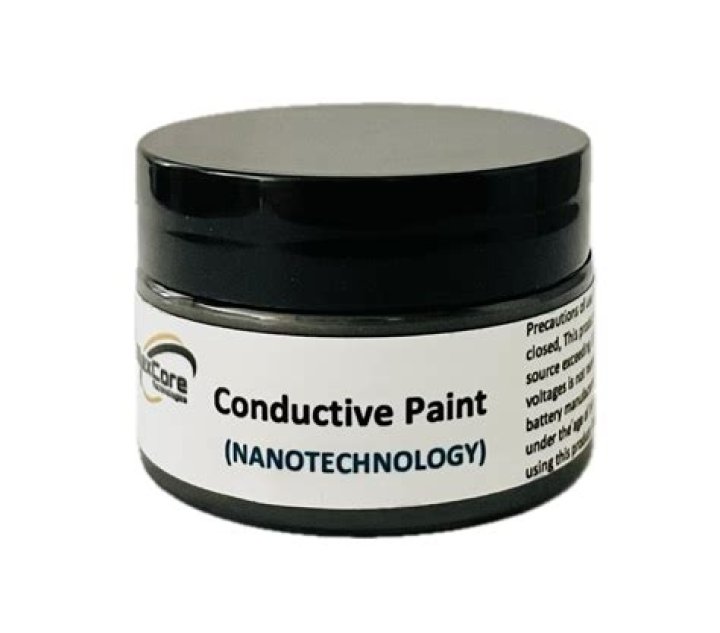

Electric Paint is a water-based electrically conductive paint which was developed as an easy-to-use alternative to industrial conductive inks. The material is non-toxic, water soluble, electrically conductive, and Electric Paint is used to create small printed circuits and capacitive sensors.

Can I paint over conductive paint?

Changing the color of Electric Paint is easy, just paint over with another coating. ... In this tutorial, we will show you how to cover Electric Paint with a different color, using acrylic varnish and paint. Of course, you can use a different colored paint, but be sure to use a paint that doesn't break the varnish seal.

Is acrylic paint electrically conductive?

So can acrylic paint conduct electricity? Yes, despite being plastic and water based, acrylic paints are good to moderate conductors of static electrical charges.

DIY How To Make Conductive Paint At Home || Part 1

Is dried paint conductive?

It's important to note that Electric Paint is most conductive when dry, so wait until it feels dry to the touch before testing your circuits. Because conductivity increases as the paint dries, it's important to let the paint dry completely before testing it, particularly if your project requires calibration.

Is silver paint conductive?

The fast drying silver paint forms a thin, highly conductive and flexible layer. ... Other applications are conductive paths for electronic components and EMI/RFI shielding. Excellent adhesion to most nonconductive materials such as plastics, ceramics, wood, glass, epoxies and most metals.

How long does conductive paint last?

How long does conductive paint last? If stored correctly and unopened, conductive paint can last for years, once it's opened it'll last another 6 months, but all these numbers are dependant on when the paint begins to crack and dry.

How long does conductive paint take to dry?

Although conductive paint seems to dry instantly, allow 24 hours of dry time before electroforming. Do not directly touch the surface of your piece, as skin oils or dirt and residue will create unplated spots while your piece is electroforming.

Can I paint electrical wires?

Is it safe to paint over electrical wires? Fortunately, painting over electrical wires is safe to do. You should not paint over outlets or switches, and though it's unlikely you will have any in your ceiling, any electrical outlets and switches should be covered with painter's tape.

How does electrical paint work?

Electric paint uses carbon to conduct electricity. "Inside of this liquid, there are lots of small particles of carbon. When the liquid dries, those particles get closer together," Bare Conductive CEO and cofounder Matt Johnson told Business Insider.

Is copper spray paint conductive?

These paints are filled with conductive metals such as silver, nickel, copper or other specialty powders and flakes. Conductive paints cannot be applied in the same way conventional paints are. Many first attempts do not go as well as planned. With proper preparation and practice, you will achieve success.

How do you thin out conductive paint?

As such, it can be diluted by simply adding water, similar to acrylic paint. There is no need for distilled water, and you don't need a thinner like with oil-based paint. However, adding water to Electric Paint will also decrease the conductivity of the material as it changes the ratio of conductive particles to water.

Is all graphite powder conductive?

Graphene and graphite are crystal allotropes of carbon which also conduct electricity. Graphite powder can be mixed with a binder such as acrylic glaze to make a conductive paint that can be used in solar and battery projects. ... These materials can be used as conductors or semiconductors in circuits.

Is normal ink conductive?

Is conductive ink a good conductor of electricity? In short yes it is, but not as much as more traditional materials used for making electrical circuits, at least for now. In order for a material to conduct electricity, it must allow the movement of electrons through it.

What is a conductive pen used for?

CircuitWorks Conductive Pens have a wide range of uses, from drawing traces between components on prototype circuit boards, coating components and assemblies to shield them from electrical and radio frequency interference, to repairing broken solder traces on PCBs and broken grid lines on automobile rear-windshield ...

Is there an epoxy that conducts electricity?

8331 is an electrically conductive, silver-filled two-part epoxy adhesive. It is smooth, non-sagging, thixotropic, and bonds well to a wide variety of substrates. This conductive epoxy allows for quick cold-soldering repairs.

How do you make silver conductive paste?

Take silver metal and add Isoamyl Acetate in that. Mix it using a brush like paint mixing. Thats it. Coat using the same, in few minutes the Isoamyl Acetate will get evaporated and you get a proper silver coat.

Is acrylic an electrical insulator?

Acrylic is a clear thermoplastic with about 92% transparency, making it useful in many optical applications. It is also a good electrical insulator and resistant to weathering. It is often preferred because of its moderate properties, easy handling, durability and low cost.

What is non-conductive paint?

Non-conductive coatings are specialized coatings that limit the transfer of heat or electricity to the metal substrate with the coating applied. Most non-conductive coatings are organic in nature and achieve their insulative properties by being devoid of conductive metals such as copper, zinc and nickel.

Can painted metal conduct electricity?

Metallic paint conduct electricity.
