Waney=edge boards are cut from green (wet) timber and will, as a result, shrink by up to 15mm as the board dries. We recommend that each board is fixed once with a nail located 10mm above the upper edge of the previous board.

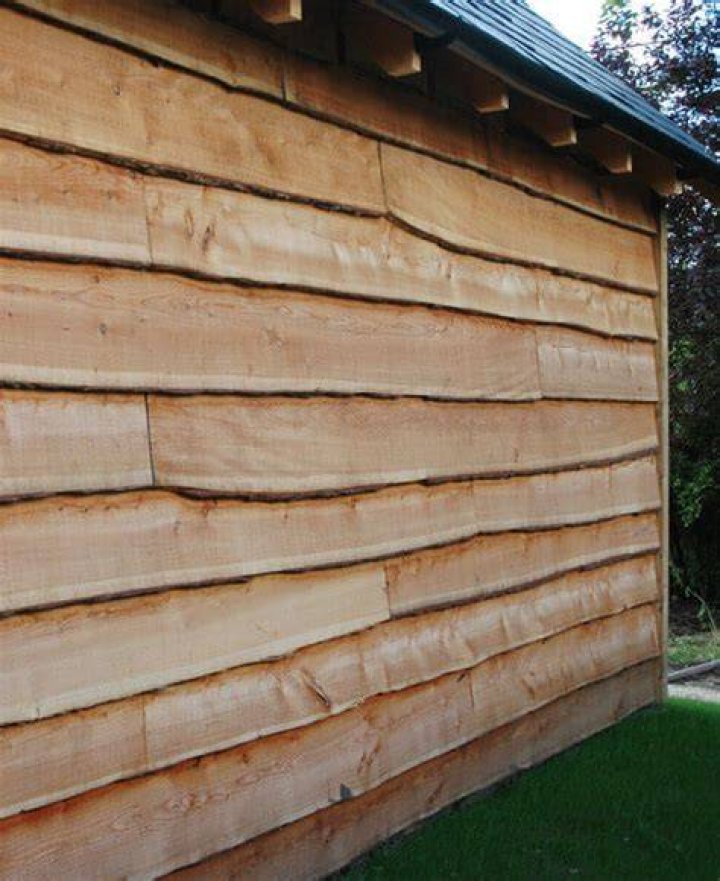

How do you fit a Waney Edge board?

Waney edge should be fixed 10mm up from the edge of the board behind (Fig: 1). Overlap boards between 50mm to 70mm as upon drying, the boards will shrink by as much as 15mm. Use one nail per fixing point as two nails will not allow the timber to shrink as it dries. This can result in splitting.

Do you treat waney edge cladding?

Do I need to treat the timber? As Waney Edge cladding is such a rustic looking product you can leave it untreated. ... If you would like to treat your cladding you could either seal it to stop water movement and let it go silvery grey or use a UV protection oil to keep the colour of your timber.

Can you screw feather edge boards?

The choice is yours. The rails can be screwed into the posts through the sides and supporting brackets can be used to give extra strength. 3 inch number 8 screws are usually needed for this, all timber should be treated. The first feather edge board can then be fixed on the outside of your fence.

How much should Featherboard overlap?

Overlap Consistently

The overlapping of the feather edge cladding is very important and must be kept consistent. For boards less than 150mm wide an overlap of 40mm is ideal, but for boards wider than 150mm, 50mm overlap is recommended.

Dont fix Cladding/Siding like this!!!

How do you overlap feather edge?

Use a 10mm strip behind the lower edge of the bottom board for support. Overlap subsequent boards by 40 – 50mm. It is important not to reduce the recommended overlap. Feather-edge profiles are generally cut from green (wet) timber and will, as a result, shrink by up to 15mm as the board dries.

Is Live Edge the same as waney edge?

Now it's called waney edge. Or natural edge. Or most often, live edge (that one makes us chuckle… & grimace at the same time!*)

What does Waney Edge mean?

The guide defines 'waney edged' as: A sawn plank of wood still retaining a natural edge (may include the bark) along one or both sides of the piece of timber.

Why is cladding needed?

The purpose of cladding is to protect a building's structure from natural elements like wind and rain but it can have other benefits, such as, insulation, noise control and it can boost the aesthetic appeal of a building.

How do I fix larch cladding?

Always fix larch cladding directly through the face of the cladding boards with ring shank nails or screws. Because larch is unstable we strongly recommend that you avoid installing the boards using hidden fixings.

How long does feather edge fencing last?

A secure and strong fence would not be complete without a gate to match. Jacksons Featherboard gates are made from Jakcured sawn finish softwood, constructed with galvanised bolts and stainless steel nails, all made to the same exceptional quality, guaranteed for 25 years to give you many years of trusty service.

How do you fix broken shiplap?

1. Step 1 - Buy Replacement Siding. ...
2. Step 2 - Create Cut Line. ...
3. Step 3 - Cut Out the Damaged Section of Shiplap Siding. ...
4. Step 4 - Measure and Cut New Siding Piece. ...
5. Step 5 - Install New Shiplap Siding. ...
6. Step 6 - Seal with Caulk. ...
7. Step 7 - Sand the Edges. ...
8. Step 8 - Paint or Stain the New Siding.

How do I stop my feather edges from warping?

Install backrails on the fence no more than 8 inches from the top and bottom of the fence to prevent warping. For fences taller than 6 feet, install another backrail in the middle. At 8 feet, two backrails should be installed in the middle to further prevent warping.

How do you attach feather edge boards horizontally?

Horizontal attachment only

Begin at the bottom, ensuring that the first board is level. Use a 10mm strip behind the lower edge of the bottom board for support. Overlap subsequent boards by 40 – 50mm. It is important not to reduce the recommended overlap.

How many Featheredge boards do I need?

As a guide Fencing Essentials recommend the following, when deciding how many boards are needed: Allow 12 boards per metre when using 100mm boards. Allow 10 boards per metre when using 125mm boards. Allow 8 boards per metre when using 150mm boards.

What nails do I use for feather edge fencing?

Use 50mm galvanised nails to attach them - it is important you only use one nail per pale per rail (i.e. 3 nails) - do not nail two pales together. The single fixing is to allow the pales to expand and contract with the weather. As the top of the fence is continuous, capping can be any length.
