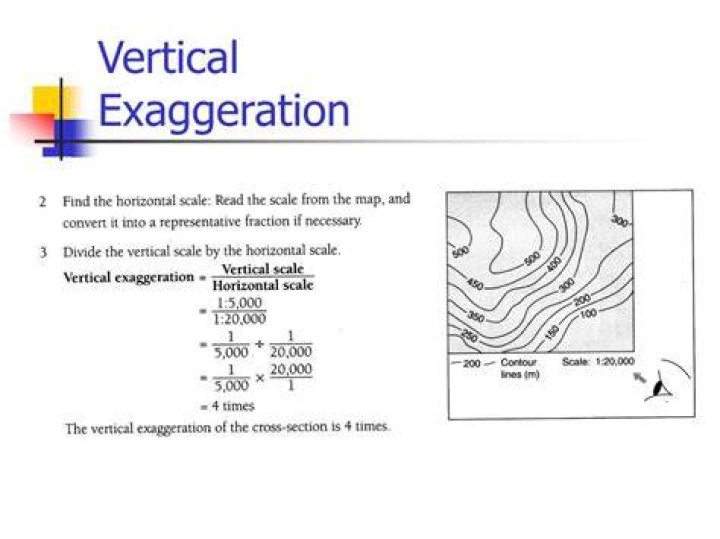

Vertical exaggeration formula: VE = (real world units of horizontal scale) / (real world units of vertical scale). As an example for a 1:50000 topographic map, we can set the horizontal scale (x axis) of the profile the same as the map.

Why is vertical exaggeration calculated?

Vertical exaggeration (VE) is a scale that is used in raised-relief maps, plans and technical drawings (cross section perspectives), in order to emphasize vertical features, which might be too small to identify relative to the horizontal scale.

What is vertical exaggeration in geography?

Vertical exaggeration refers to the common practice in topographic profiles of different horizontal and vertical scales. ... The resulting scene would not look at all like the human eye perceives terrain; we overestimate slopes and the vertical dimension of topography. Vertical exaggeration x40.

How do you find the vertical scale on a topographic map?

The ex- aggeration is determined by comparing the inches on the profile with feet in nature. Thus, on a profile with a hor- izontal scale of 1:24,000 and a vertical scale of 1/10 inch to every 100 feet of elevation: Horizontally 1 inch represents 24,000 divided by 12 2,000 ft.

How do you find vertical exaggeration on a map?

Vertical exaggeration formula: VE = (real world units of horizontal scale) / (real world units of vertical scale). As an example for a 1:50000 topographic map, we can set the horizontal scale (x axis) of the profile the same as the map.

Mapwork Vertical Exaggeration

What is the vertical exaggeration of the profile?

Vertical exaggeration is a common practice used to display information in profile view. In most places, the earth is relatively flat, and changes in elevation are subtle. To make the peaks and valleys stand out a bit more, the elevations are exaggerated while the horizontal distances are kept the same.

How do you graph vertical exaggeration?

In order to calculate vertical exaggeration, divide the real world units of horizontal scale by the real world units of vertical scale. Make sure same units are used in numerator and denominator of the division. Also always show vertical exaggeration value on your profile graph.

What is vertical and horizontal?

The terms vertical and horizontal often describe directions: a vertical line goes up and down, and a horizontal line goes across. You can remember which direction is vertical by the letter, "v," which points down.

What is vertical exaggeration quizlet?

vertical exaggeration. the ratio of the vertical scale divided by the horizontal scale. A ratio of one means a scale that shows the accurate bottom. Values are usually much greater than one and make the vertical features appear much more dramatic than they really are. Bathymetry.

How do you find the gradient in geography?

Gradient = vertical difference in elevation / horizontal distance. So, to calculate the average gradient along the stream from the red dot at B to the red dot at A (or vice versa) two facts need to be known: The difference in elevation between B and A.

How do you do vertical exaggeration in Excel?

This should work, in Excel 2003, right-click on the Y-axis, select Format Axis... , click on the Scale tab, set the minumum and maximum to the min and max Y values for your data.

What is vertical scale?

Vertical scale is the ability to move a single instance to a more powerful machine. ... Vertical scaling is far more limited than horizontal scaling because there is a limit to the size of a single machine. Moving to more powerful instances can also be expensive as compared to adding many cheap instances.

How do you draw a topographic map?

Draw a horizontal line on the graph paper that is the length of your profile line. Draw vertical lines above your starting and ending points. Label the y-axis (vertical lines) with elevations making sure that your scale goes from highest to lowest on your cross-section (see step 3).

How do you find the contour interval?

What Is the Contour Interval Equal To? Divide the difference in elevation between the index lines by the number of contour lines from one index line to the next. In the example above, the distance 200 is divided by the number of lines, 5. The contour interval is equal to 200 / 5 = 40, or 40-unit contour intervals.

What is vertical interval?

Vertical Interval is the vertical distance between two contour lines. Horizontal Equivalent is the actual distance between two points on two contour lines. Slope of the land is known as the gradient.

Does vertical exaggeration have units?

It's all got to do with profiles! Vertical exaggeration is a comparison between the horizontal and vertical scales on a profile. Its value is gotten by taking what a unit, such as an inch, represents on the horizontal scale and dividing it by what that unit represents on the vertical scale.

What is Intervisibility in geography?

Intervisibility is defined as the ability to see in a direct line of sight from one position on the earth's surface to another, considering the intervening terrain.

What is vertical exaggeration in aerial photography?

WHAT IS VERTICAL EXAGGERATION? When one looks at overlapping vertical aerial photographs through a refraction stereoscope, he sees a three-dimensional model whose vertical scale exceeds the horizontal. Such a model, or mental image, is said to be vertically exaggerated.

How do you increase vertical exaggeration on Google Earth?

To do this, click Tools > Options > 3D View from the Tools menu (for the Mac, choose Google Earth > Preferences > 3D View) and change the Elevation Exaggeration figure. You can set it to any value from 1 to 3, including decimal points.
