To position then accurately it is important to be able to identify the "angle of Louis", or "sternal angle". To find it on yourself, place your fingers gently at the base of your throat in a central position and move your fingers downward until you can feel the top of the sternum, or rib cage.

What level is sternal angle?

The sternal angle (of Louis) is the angle between the manubrium and body of the sternum it is located 5 cm inferior to jugular notch at the level of the 2nd costal cartilage; thus, it is a useful landmark for rib counting since the first rib is difficult to feel.

Where does the sternal angle lie?

The sternal angle lies at the level of the intervertebral disc between thoracic vertebra, T4 and T5. Body. The second rib attaches to the sternum at the sternal angle.

How do you palpate sternal notch?

Sternal Notch Palpation

From the left upper sternal border move your fingers to the sternal notch. Feeling a pulsation here suggests ascending aortic aneurysm or a prominent aortic arch.

How do you find the sternal angle of Louis?

To find it on yourself, place your fingers gently at the base of your throat in a central position and move your fingers downward until you can feel the top of the sternum, or rib cage. From this position, continue to move your fingers downward until you feel a boney lump. This is the "angle of Louis".

Sternal angle

What is the sternal angle of Louis?

The sternal angle (angle of Louis) is the name of the manubriosternal joint. It is a fibrocartilage joint that allows for some movement acting like a hinge so that the body can move anteriorly during deep inspiration.

What happens at the sternal angle?

The movement at the sternal angle allows the body of the sternum to move anteriorly and superiorly. This increases the volume of the intrathoracic cage and in particular, allows transverse expansion in the lower thoracic cage leading to maximal airflow.

What is the sternal notch?

Anatomical terms of bone

The suprasternal notch, also known as the fossa jugularis sternalis, or jugular notch, or Plender gap is a large, visible dip in between the neck in humans, between the clavicles, and above the manubrium of the sternum.

How do you find the 5th intercostal space?

You can usually feel it at the 5th intercostal space on the left side (the mitral area), about 3.5 inches from the midline. To find the 5th intercostal space, find the 2nd rib and just slide your fingers inferiorly.

How is sternal angle formed?

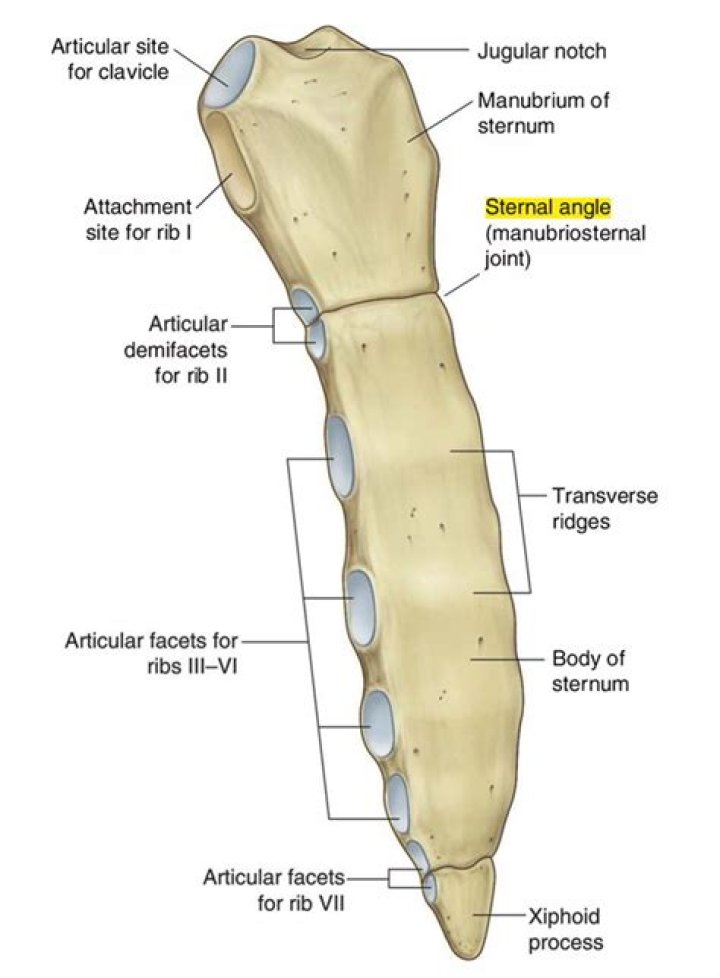

The sternal angle (of Lewis) is formed by the angle between the manubrium and the body of the sternum at the manubriosternal symphysis (see Fig. 6-2). This angle makes the sternum slightly convex anteriorly. The second costal cartilage articulates with the sternum at this angle.

Where does the sternal angle lie quizlet?

The sternal angle (angle of Louis) is located where and what is it a landmark for? It is located between the manubrium and the body of the sternum- located at the articulation of the 2nd ribs.

How much is the sternal angle?

The sternal angle (angle of Louis) is the anterior angle formed by the junction of the manubrium and the body of the sternum which varies around 162 degrees in males.

Where does trachea bifurcate sternal angle?

It is at the level of the sternal angle - the inferior margin of the fourth thoracic vertebra.

Who discovered the sternal angle of Louis?

The Angle of Louis, more commonly known as the sternal angle or the manubriosternal joint (MSJ), was first described by Pierre Charles Alexandre Louis, a 19 th century Frenchman who postulated that increased angulation was associated with worsening progression of emphysema [1] .

What is thoracic plane?

The thoracic plane, also known as the transthoracic plane or the plane of Ludwig is an artificial horizontal plane used to divide the mediastinum into the superior mediastinum and the inferior mediastinum.

What are 3 types of notches of the sternum?

The sternum is divided anatomically into three segments: manubrium, body, and xiphoid process.

What is the clavicular notch?

Medical Definition of clavicular notch

: a notch on each side of the upper part of the manubrium that is the site of articulation with a clavicle.

What is the hole between your collarbones called?

The thoracic outlet is the space between your collarbone (clavicle) and your first rib. This narrow passageway is crowded with blood vessels, muscles, and nerves. ... The thoracic outlet is the space between your collarbone and first rib.

What level is the jugular notch?

The upper border of the manubrium is marked by the jugular notch, which is easily palpable and is usually at the level of the T3 vertebrae. On each side of this is a notch for the medial end of the clavicle. The first costal cartilage is attached to the side of the manubrium.

What is the vertebral level of the angle of Louis?

The angle of Louis lies at the level of the lower border of the fourth thoracic vertebra [2]. The sternal body is 10 cm long and lies opposite the fifth to eighth vertebrae in front of the heart. Below the body is the cartilaginous xiphoid, which may be palpable, and lies at the level of the ninth thoracic vertebra.

What is the superior thoracic aperture?

The superior thoracic aperture allows connection of the anatomic structures of the thorax and the neck. The term thoracic inlet has a slightly different meaning. It refers to the superior thoracic aperture, the region just above the first rib, and the opening between the clavicle and the first rib.

What is costal angle?

The angle of the rib (costal angle) is the region where the rib is the most strongly bent located on on the proximal part of the body of the rib.

Why is the sternal angle an important landmark quizlet?

Sternal Angle- Often called the "angle of Louis," this is the articulation of the manubrium and body of the sternum, and it is continuous with the second rib. The angle of Louis is a useful place to start counting ribs, which helps localize a respiratory finding horizontally.
