The reciprocal of the impedance Z is the admittance, Y. Y=1Z=1R+jX.

What is admittance of a circuit?

In electrical engineering, admittance is a measure of how easily a circuit or device will allow a current to flow. It is defined as the reciprocal of impedance, analogous to how conductance & resistance are defined.

How do you use admittance?

Examples of admittance in a Sentence

He tried to enter the restaurant but was refused admittance. They opposed the admittance of women into the club. The sign said “No Admittance.” These example sentences are selected automatically from various online news sources to reflect current usage of the word 'admittance.

What is input admittance?

The input admittance (1/impedance) is a measure of the load's propensity to draw current. The source network is the portion of the network that transmits power, and the load network is the portion of the network that consumes power.

What is the inverse of admittance?

In electrical engineering, susceptance (B) is the imaginary part of admittance, where the real part is conductance. The reciprocal of admittance is impedance, where the imaginary part is reactance and the real part is resistance. In SI units, susceptance is measured in siemens.

Electrical Engineering: Ch 10 Alternating Voltages & Phasors (69 of 82) Find Admittance=?

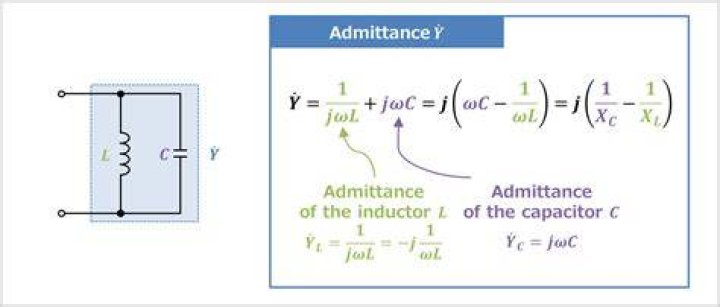

What is the admittance of inductance?

Admittance ( Y ) :

The admittance of a parallel circuit is the ratio of phasor current to phasor voltage with the angle of the admittance being the negative to that of impedance.

How is load admittance calculated?

In equation [1], Y_L is the admittance of the load, which is the inverse of the impedance of the load (Z_L). The real part of Y_L is written as C, and is known as the conductance. The imaginary part of Y_L is written as S, and is known as the susceptance. In equation [3], Y_0 is equal to 1/Z_0.

How the admittance parameters are calculated?

[ I ] = [ Y ] [ V ]

where [ Y ] is the admittance matrix, [ I ] and [ V ] are the current and voltage matrix. From the above matrix form representation of two port network, it is clear that there are four admittance parameters i.e. Y₁₁, Y₁₂, Y₂₁ and Y₂₂.

How do you calculate input impedance?

The generalised formula for the input impedance of any circuit is Z_IN = V_IN/I_IN. The DC bias circuit sets the DC operating “Q” point of the transistor and as the input capacitor, C1 acts as an open circuit and blocks any DC voltage, at DC (0Hz) the input impedance (Z_IN) of the circuit will be extremely high.

How is admittance matrix calculated?

The line admittance between nodes i and k is represented by y_ik = y_ki. Further, the mutual admittance between lines is assumed to be zero. Applications of Kirchhoff's current law to the four nodes gives the following equation. The above equation can be rearranged and written in matrix form as below.

What is admittance relay?

A mho Relay is a high-speed relay and is also known as the admittance relay. In this relay operating torque is obtained by the volt-amperes element and the controlling element is developed due to the voltage element. It means a mho relay is a voltage controlled directional relay.

What is admittance control?

Admittance control is one of the most common methods to make the connection between humans and robots [7]. The admittance control can be considered as a dynamic mapping of forces/torques to the movement (position or velocity). It uses forces/torques to admit a certain number of movements [8].

What is series admittance?

Admittance is defined as a measure of how easily a circuit or device will allow current to flow through it. Admittance is the reciprocal (inverse) of impedance, akin to how conductance and resistance are related. ... Its real part is resistance, and the imaginary part is reactance, which came from the impeding mechanism.

How do you find inductance from impedance?

1. Z: is the impedance in ohms.
2. j: is the operator for imaginary numbers. (imaginary unit)
3. L: is the value of the inductor in Henrys (H)
4. w: is equal to 2. π. f, where the letter f represents the frequency of the signal applied to the inductor.

What is short circuit admittance?

Similarly, Y ₂₂ is known as short circuit output admittance. It is seen that dimensionally each parameter is admittance (ratio of current and voltage). Also, each parameter is obtained by short circuiting either the input or output port. Therefore, these parameters are called the short circuit admittance parameters.

Where are Z parameters used?

Impedance parameters or Z-parameters (the elements of an impedance matrix or Z-matrix) are properties used in electrical engineering, electronic engineering, and communication systems engineering to describe the electrical behavior of linear electrical networks.

What is short circuit admittance parameters?

Y parameters (also known as admittance parameters or short-circuit parameters) are properties used in electrical engineering to describe the electrical behavior of linear electrical networks. ... That is to say that I_x=∞, where x=1, 2 refers to the input and output currents flowing through the ports of a two port network.

What is the determinant of admittance matrix?

The value of determinant of indefinite admittance matrix is zero. For a reciprocal n-terminal network, indefinite admittance matrix is symmetric.

How do you calculate VSWR?

Therefore: VSWR = (Z_L + Z_O + Z_O - Z_L)/(Z_L + Z_O - Z_O + Z_L) = Z_O/Z_L. We noted above that VSWR is a specification given in ratio form relative to 1, as an example 1.5:1. There are two special cases of VSWR, ∞:1 and 1:1.

How do you calculate reflection coefficient?

The reflection coefficient is equal to the ratio of the amplitude of the reflected wave to the incident wave.
