Much like when you take a hammer to nail something into a wall, the pile driver uses, in most cases, a hydraulic hammer to place the pile into the ground. Depending on the soil type, more or less force is used to drive it properly into the ground.

What is the process of piling?

Piling is the process of inserting structural piles into the ground that will become the base of the building. Piles are required where soil and earth are performing poorly and are used to spread the load of a building and firm the ground.

How is piling done in construction?

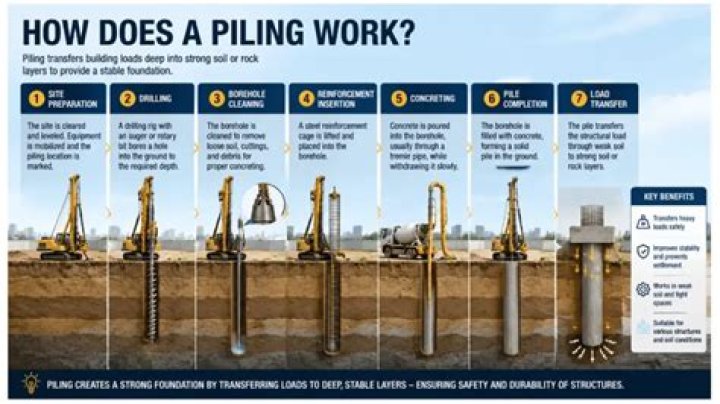

Piling works by inserting large amounts of wood, steel or concrete into the soil of the ground. The deep insertion of these elements ensures a sturdier base for the construction project to take place.

How is pile foundation done?

1. hammer a thin-walled steel tube into the ground.
2. remove all earth left inside the tube.
3. lower a steel reinforcement cage into the tube.
4. cast the pile by pouring wet concrete into the tube.

How does a piling rig work?

A piling rig is used to drive piles into soil to provide foundation support for buildings, bridges and other structures. A heavy weight is placed between guides allowing it to move up and down in a single line. ... At its optimum height the weight is then released which hammers the pile and drives it into the ground.

56 | Piling work construction| Cast in situ Pile Foundation| Rig Machine| Civil Engineer| Success555

What is piling hammer?

MOVAX Piling Hammers are excavator-mounted, hydraulic impact-type hammers for driving load-bearing piles or assisting in sheet pile driving in even the most difficult soil conditions.

How do you drill a pile?

The drilling process may include driving a temporary steel cylinder, or sleeve, into the soil. This remains in place in the upper portion of the hole until the pile is poured. Once the hole is drilled, a structure of reinforcing steel rebar is built and lowered into the hole, then the hole is filled with concrete.

What is pile load test?

THE PURPOSE of pile load testing can be either to prove the adequacy of the pile-soil system for the proposed pile design load or to develop criteria to be used for the design and installation of the pile foundation.

What is pile depth?

A foundation is described as 'piled' when its depth is more than three times its breadth. Pile foundations are principally used to transfer loads through weak, compressible strata or water onto stronger, more compact, less compressible and stiffer soil or rock at depth.

How do you calculate the number of piles?

Both the dynamic and static formulas indicate that an allowable load of 15 tons per pile is reason- able. The number of piles required to support the load is 180/15 = 12 piles.

Why is piling needed?

Piling is an essential part of building works to ensure strong foundations and prevent the risk of any future subsidence or ground movement. ... If your property is built on piled foundations, any additions will require piling to ensure the new construction is built on a like for like basis.

What are pile types?

Depending on their function, piles are classified as bearing piles, friction piles, friction-cum-bearing piles, batter piles, guide piles, and sheet piles. Based on the composition of materials, piles are classified as timber piles, concrete piles, sand piles, or steel piles.

Why piling technique is used?

Introduction. Pile foundations are used for jacket-type offshore structures, which are subjected to large magnitudes of lateral loads due to waves and winds. ... At a low loading, the soil compresses elastically, but the movement is sufficient to transfer some pressure from the pile to the soil at a greater depth.

What is pile cap in construction?

A pile cap is a thick concrete mat that rests on concrete or timber piles that have been driven into soft or unstable ground to provide a suitable stable foundation. ... The cast concrete pile cap distributes the load of the building into the piles.

What is pile design?

Pile foundations are the part of a structure used to carry and transfer the load of the structure to the bearing ground located at some depth below ground surface. ... Piles made from these materials are driven, drilled or jacked into the ground and connected to pile caps.

How many types of piles are there in construction?

There are three types of pile foundations according to their construction methods which are driven piles, cast-in-situ piles, and driven and cast-in-situ piles.

What is strip footing?

A wall footing or strip footing is a continuous strip of concrete that serves to spread the weight of a load-bearing wall across an area of soil. It is the component of a shallow foundation.

What is soil bearing capacity?

In a nutshell, bearing capacity is the capacity of soil to support the loads that are applied to the ground above. It depends primarily on the type of soil, its shear strength and its density. It also depends on the depth of embedment of the load – the deeper it is founded, the greater the bearing capacity.

Is code for test pile?

The portion relating to load test on piles has been covered in a separate part, namely, IS 2911 (Part 4) : 1984 'Code of practice for design and construction of pile foundations: Part 4 Load test on piles'. Accordingly IS 2911 has been published in four parts.

How is pile load capacity calculated?

Step 2: compute the ultimate end bearing capacity (acting as individual piles). Ultimate end bearing capacity in clay = N_c × C × pile tip area (N_c = 9). Ultimate end bearing capacity in soft clay = 9 × 120 × π × diameter²/4 = 848.2 lbs/per pile. Total ultimate bearing capacity per pile = 76,920 + 848.2 = 77,768 lbs.

How are piles tested?

Static load testing, where the pile is loaded gradually via a load cell from either reaction piles, kentledge or surface footings. This method of testing is generally considered the most reliable method of testing piles and most closely resembles the working loading conditions on the piles.

How many piles should be tested?

The number of piles in the sampling test may not be less than 2% of the total piles and should be no less than 5 piles in routine inspection. If there is any serious problem, the whole pile foundation engineering must be evaluated.

How deep can piles go?

What is the maximum depth? With the benefit of using pile joints, precast concrete piles can be driven to lengths longer than 30mx. Often concrete precast piles can be driven down to 30m, however, in special circumstances, such as offshore projects, piles can be driven down to a maximum of 150m.

What is driven pile?

A driven pile is a long, slender column made of preformed material and having a predetermined shape and size that can be installed by impact hammering, vibrating or pushing it into the ground to a design depth or resistance.

What are bored piles?

Bored piles are cylindrical bodies made of concrete (with or without reinforcement) which are installed in the ground by a variety of methods. They transmit high structural loads into lower, load-bearing soils.
