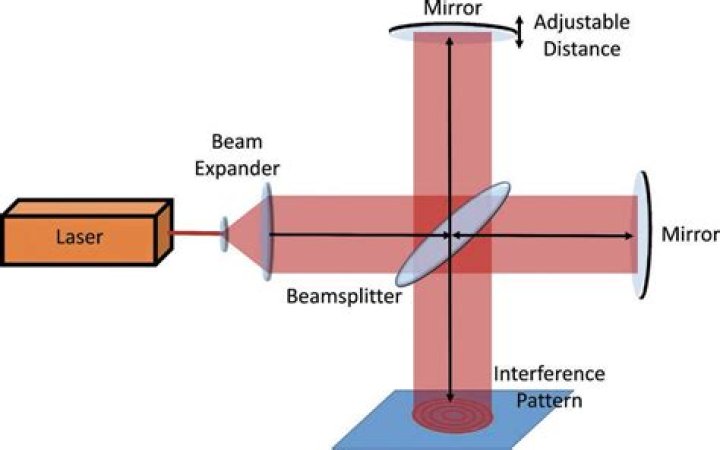

Laser interferometry is used by gravitational wave detectors like LIGO. ... A laser interferometer measures the resulting distance by splitting a laser beam into two, sending each of the two beams along different directions in space (each along one of the two arms of the detector), and then recombining the beams.

What is the principle of interferometer?

Interferometry makes use of the principle of superposition to combine waves in a way that will cause the result of their combination to have some meaningful property that is diagnostic of the original state of the waves.

How does an interferometer measure things?

'Interferometry' is a measurement method using the phenomenon of interference of waves (usually light, radio or sound waves). ... By using two light beams (usually by splitting one beam into two), an interference pattern can be formed when these two beams superpose.

What is Laser Interferometer application?

Applications of laser interferometry. Many industrial processes require non-contact sensors for various reasons, including high temperature, moving parts, hostile environment or simply the necessity for remoteness.

What are the advantages of laser interferometer?

Advantages of interferometry

Interferometry has several advantages over other surface-measurement techniques. It has very high sensitivity to surface topography, typically measured in nanometers. It also does not require mechanical contact with the surface under test.

laser interferometer

What does N P and L mean in NPL gauge interferometer?

Sravanthi -Posted on 26 Oct 15. - N, P and L in N.P.L. Gauge interferometer indicate National Physics Laboratory. - N.P.L.

What is DC laser interferometer?

Laser interferometer uses A.C laser as the light source and thus it enables the measurements to be made over longer distance. ... The laser beam wavelength is exact and pure for highly accurate measurements. The laser interferometers utilize the principles of both optical techniques and digital electronics.

What are the different types of interferometer?

• Air-wedge shearing interferometer.
• Astronomical interferometer / Michelson stellar interferometer.
• Classical interference microscopy.
• Common path - Bath.
• Cyclic interferometer.
• Diffraction-grating interferometer (white light)
• Double-slit interferometer.
• Dual-polarization interferometry.

Which application is ideally suited for two frequency laser interferometer?

Which application is ideally suited for two frequency laser interferometer? Explanation: 2 frequency laser interferometer techniques are ideally suitable for measuring linear positioning, pitch, yaw and straightness in two planes.

What are interferometers?

Interferometers are investigative tools used in many fields of science and engineering. They are called interferometers because they work by merging two or more sources of light to create an interference pattern, which can be measured and analyzed; hence 'Interfere-o-meter', or interferometer.

How the angle is measured using a laser interferometer?

When the output beam from the laser reaches the angular interferometer it is split into two separate beams by the internal beam-splitter. ... The laser system measures changes in angle by detecting the relative changes between the optical path lengths in the two “arms” of the interferometer (ΔL).

How do interferometer telescopes work?

Instead of a supercomputer, the VLTI uses a system of underground tunnels, known as delay lines. As the light waves from the observed cosmic object travel through both space and the Earth's atmosphere, they arrive at each telescope at slightly different times.

What is precision interferometer?

Demands on dimensional stability and on the detailed knowledge of thermal expansion of "high tech" materials are growing constantly. The method of absolute length measurements by optical interferometry is the appropriate tool for extracting these properties in a direct way.

How can an interferometer be used to improve resolution?

This can be achieved by increasing the size of a telescope's primary mirror: the larger the mirror diameter, the higher its resolution — that is, the better its ability to distinguish such small details. The hunger for even better resolutions is the reason for the use of interferometry in astronomy.

Can two lasers interfere?

Interference from two beams of different sources are possible, if they have same wavelength. Interference always occurs even if the wavelengths are different. However, interference between two beams of different wavelength results in a traveling interference pattern.

How does a Fizeau interferometer work?

Fizeau Interferometers Measure Surface Heights or Transmitted Wavefront Error. When the two reflected beams pass back through the beam splitter, they recombine at the sensor (camera). When recombined, the beams form an interference pattern. ... The sensor records this interference pattern as a single measurement frame.

On what factor the accuracy of laser interferometer mainly depends?

The stability of laser interferometer systems depends on the stability of the wavelength which, in turn, is dependent on the laser frequency and the fluctuations of the refractive index of the medium (typically air or vacuum), or how well the wavelength variations can be calibrated inline using an (absolute) ...

Why is laser preferred in engineering metrology?

Regular calibration of mechanical length etalons by a system with direct traceability to the fundamental etalon of length is a key to any industrial metrology. Precision and stability of these laser etalons influences the whole chain of metrology, from the fundamental down to the industrial level.

Why tolerances are given to the parts?

Explanation: Tolerances are provided to the parts because variations in the material properties introduce errors and production machines themselves have inherent inaccuracies. Another reason to introduce tolerance is that it is not possible to make perfect settings by operator so some tolerances are provided.

How accurate are interferometers?

How accurate are interferometers? A state-of-the-art interferometer can measure distances to within 1 nanometer (one billionth of a meter, which is about the width of 10 hydrogen atoms), but like any other kind of measurement, it's subject to errors.

Why interferometer is used in FTIR?

The FTIR spectrometer uses an interferometer to modulate the wavelength from a broadband infrared source. A detector measures the intensity of transmitted or reflected light as a function of its wavelength. ... The intensity can be plotted as the percentage of light transmittance or absorbance at each wavenumber.

Which of the following is the squareness measuring method?

The squareness on a machine system is measured by three methods with different optical artefacts. Two of these methods are the diagonal and the cross-diagonal methods with a linear scale of one-dimension. The one-dimension linear scale is calibrated, and implies that all the scale distances are known.

Which type of fringe is formed if a path difference of λ 2 is observed in an interference pattern *?

If the path length difference between the two reflected light beams is an odd multiple of the wavelength divided by two, λ/2, the reflected waves will be 180 degrees out of phase and destructively interfere, causing a dark fringe. ... The constructive interference of the two reflected waves creates a bright fringe.

Which of the following is the most important characteristics of an instrument?

Accuracy is the degree of agreement of the measured dimension with its true magnitude. It can also be defined as the maximum amount by which the result differs from the true value. The most important characteristic of the quality of measurement is accuracy.

What is the angle at which a glass plate reflector set in NPL interferometer?

N.P.L. FLATNESS INTERFEROMETER

The fringes formed are viewed directly above by means of a thick glass plate semi-reflector set at 45° to the optical axis.
