When it comes to laser, Galvo systems use mirror technology to move the laser beam in different directions by rotating and adjusting mirror angles within the boundaries of a work area. Galvo lasers are ideal for using fast speed and intricate fine detailed marking and engraving.

How does galvo head work?

Galvo mirrors

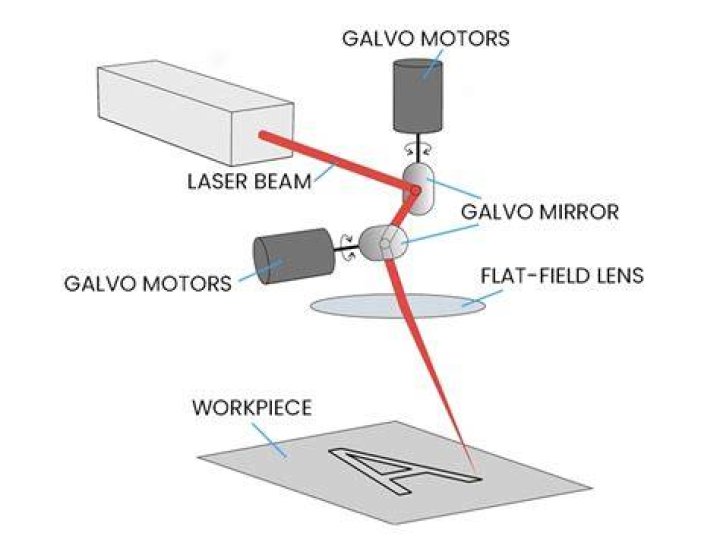

Mirrors mounted on galvanometric rotary motors deflect the laser beam. These motors transform electrical voltage into angular movement. The mirrors, mounted perpendicularly on the engines, move the laser beam along the X and Y axes according to the input received from the motor.

What is a fiber galvo laser?

The Radian CO2 Galvo-based Laser System are high speed systems designed for engraving & cutting dense items including power coated tumblers and drinkware, wood, stone and cleanly cutting delicate materials like fabric and paper.

What is galvo control?

The beam of light projected on a scale acts as a long massless pointer. ... In modern times, the term mirror galvanometer is also used for devices that move laser beams by rotating a mirror through a galvanometer set-up, often with a servo-like control loop. The name is often abbreviated as galvo.

What is fiber laser cutting?

Fiber laser cutting machine is a currently popular laser cutting type which adopts fiber laser source to fulfill perfect cutting effect. Fiber lasers are a type of solid state laser that is rapidly growing within the metal cutting industry.

Inside the Closed Loop Laser Beam Stearing Galvanometer.

How does a fiber laser works?

Fiber lasers use pump light from what is called laser diodes. These diodes emit light that is sent into the fiber-optic cable. Optical components located in the cable are then used to generate a specific wavelength and amplify it. Finally, the resulting laser beam is shaped and released.

How thick can fiber laser cut?

Fiber laser cutting systems can certainly cut more than one inch thick with higher Fiber laser powers and even cut faster when utilizing nitrogen as the assist gas, but the “sweet spot” where the most significant benefits are realized is in the 1/2 inch and under range for steel when making comparisons with CO2 systems ...

What is a galvo motor?

These devices were at the heart of all moving coil meters. In the laser world, the term "galvanometers," also known as galvoscanners, galvopositioners, or galvos, refers to a high-resolution rotary motor with a mirror mounted, instead of a pointer.

How does a resonant scanner work?

A resonant scanner uses a high-frequency (~7.8 kHz for the A1R HD25) sinusoidal wave, which reduces stress on the motors and allows them to indefinitely function at a very high speed. For A1R HD25, this translates into speeds up to 30 frames per second (FPS) across the entire industry-leading 25-mm field of view (FOV).

How does a mirror galvanometer work?

A lamp is positioned behind the scale; its light passes through an aperture in the scale that is directed at the galvanometer's mirror. The mirror reflects that light back onto the scale; when the magnet/mirror is deflected by an electric current, the light deflects with it, measured by the scale.

What is F theta lens?

F-theta lenses are designed to focus a laser beam onto a planar image plane. They are often used in a scanning system with two galvanometer mirrors. One mirror is responsible for beam deflection in one direction and the second one for the perpendicular direction.

What is laser plotter?

Plotter that uses a laser to produce images on photographic film in raster or vector format. A printer that uses a laser to generate the character image. A laser printer is sometimes called an intelligent copier/printer, as it uses some of the same methods to produce the final image as does a copier.

What is resonant scanning?

A resonant scanner is a type of galvanometric mirror scanner that allows fast image acquisition with single-point scanning microscopes (true confocal and multiphoton laser scanning). High acquisition speed is required to track fast processes, especially in living samples.

What is resonance frequency?

The resonant frequency can also be defined as the natural frequency of an object where it tends to vibrate at a higher amplitude. ... For example, you could feel a bridge “shake” if the collective oscillation force from vehicles caused it to vibrate at its frequency.

What does changing the Z axial focal plane enable?

What does changing the Z-axial focal plane enable? To see different depths into the sample. How is optical sectioning achieved in confocal microscopy? The sample stage moves closer to the objective to image at different depths.

What is galvo meter?

galvanometer, instrument for measuring a small electrical current or a function of the current by deflection of a moving coil. The deflection is a mechanical rotation derived from forces resulting from the current.

What is the principle of galvanometer?

A moving coil galvanometer works on the principle that a current-carrying coil placed in a magnetic field, experiences a torque. The coil springs along with the radial field ensure the deflection to be proportional to the strength of the current.

Can a laser cut a human?

Unlike other ordinary light sources, laser cutting lasers can achieve energy concentration due to their monochromaticity, coherence, collimation and high energy density, thus causing damage to human organs (especially human eyes). .

Can a fiber laser cut glass?

Generally speaking, it's not possible to cut glass with a laser of a wavelength in the visible spectrum. This makes sense given that glass is typically clear, meaning very little laser energy within the visible spectrum would be absorbed.

Can a fiber laser cut metal?

Which laser sources can be used to cut metal? In general, it is possible to cut metal with both CO₂ and fiber laser. Metals such as steel or ferrous materials can be cut more easily than light or non-ferrous metals such as copper or aluminum.

Can Fibre laser cut wood?

If you're wondering if you can use a laser machine to cut through wood materials, the answer is yes. ... If you're cutting a non-organic material, you want to use a fiber laser. They have the power to cut through very hard materials such as metals and metal alloys.

Can lasers remove rust?

This epic contraption is built buy a company called Clean Laser and is its 1000 Watt rust-remover called the CL 1000. ... This is achieved using high frequency bursts of micro-plasma which - when combined with extremely high thermal pressure and shockwaves - can be set to a certain depth to skim away a surface of rust.

Do fiber lasers use gas?

Why do we need auxiliary gas when we use a fiber laser cutting machine to cut metal materials? There are four reasons: we use auxiliary gas when using a fiber laser cutting machine. 1. First, the assist gas will chemically react with the metal material to increase the working capacity.

What is a polygon scanner?

Polygon scanners are ideally suited for line-oriented full-surface processing of workpieces – at fine resolutions and with freely definable patterns and structures. Thanks to their high speed, these systems can drastically reduce material processing times.
