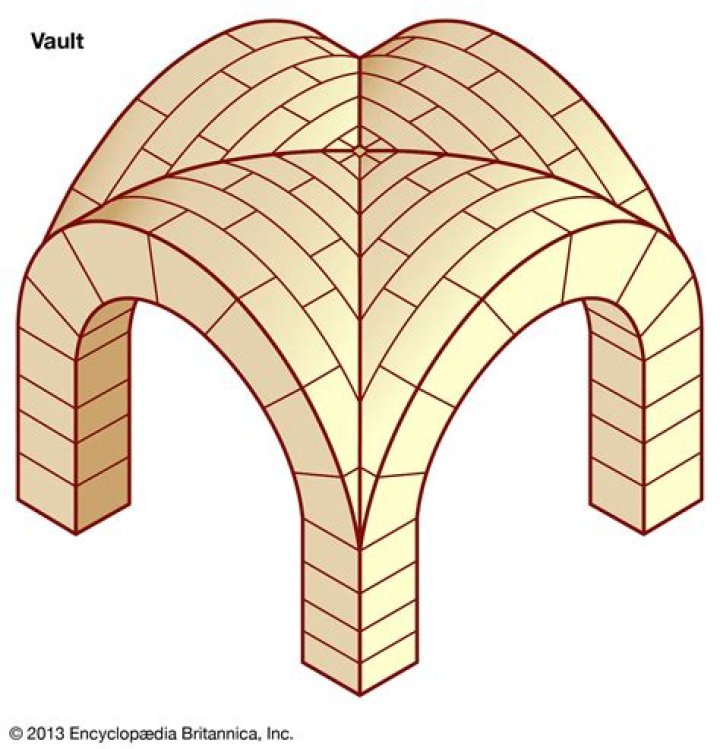

A groin (or cross) vault is formed by the perpendicular intersection of two barrel vaults. A rib (or ribbed) vault is supported by a series of arched diagonal ribs that divide the vault's surface into panels. A fan vault is composed of concave sections with ribs spreading out like a fan.

How are vaults constructed?

vault, in building construction, a structural member consisting of an arrangement of arches, usually forming a ceiling or roof. The basic barrel form, which appeared first in ancient Egypt and the Middle East, is in effect a continuous series of arches deep enough to cover a three-dimensional space.

How are rib vaults made?

Ribbed vaults are made by connecting arches; it incorporates two diagonal arches reaching from corner to corner, along with other arches that span the length and side of the vaults. The placement and spaces between the ribs are engineered in such a way that the pressure from the ceiling is transferred to the piers.

What was the groin vault made of?

A groin vault is an arched structure normally made of brick or stone that's designed to support a ceiling or covering of a room. To make a groin vault, builders create two barrel vaults, shaped like a half circle (or top of a barrel), and cross them in the middle at a perpendicular or right angle to form an X.

Is cross vault and groin vault the same?

A groin vault or groined vault (also sometimes known as a double barrel vault or cross vault) is produced by the intersection at right angles of two barrel vaults. The word "groin" refers to the edge between the intersecting vaults.

What is a vault in architecture? | Types of Vaults - Barrel Vault, Groin Vault, Ribbed Vault

What is the oldest known type of arch?

The Etruscan Gate at Volterra from the fourth century B.C. is considered the first example of a true arch. In Europe, the oldest known arch is the Cloaca Maxima, a huge drain built in 578 B.C. by Lucius Taquinius Priscus.

Why is it called a groin vault?

It's called a groin vault because the parts meet together in a V, like the V where your legs come together. You make a groin vault by building two barrel vaults that cross each other, so that they make an X. A groin vault can be rounded, as in Romanesque churches, or pointed, as in Gothic churches.

What's the difference between a ribbed vault and a groin vault?

A rib vault is the intersection of two pointed barrel vaults while a groin vault is the intersection of two barrel vaults. That is why that vault get more attention during the gothic period. Better load transfer means smaller buttresses. Smaller buttresses means more windows.

What is blind arcade in art?

A blind arcade is a series of blind arches that are filled-in instead of being left open as with traditional arcades. Rather than having a load-bearing function, a blind arcade is often included in masonry facades as an ornamental element, with well-defined columns.

Who created ribbed vaults?

Ribbed vaults were built by William the Englishman at Canterbury Cathedral and in St Faith's Chapel in Westminster Abbey (1180).

When were vaulted ceilings invented?

From an architectural point of view, a vaulted ceiling is characterized by an arch with self support that's located underneath the ceiling and above the walls. Some of the earliest vaulted ceilings date all the way back to a Neolithic hamlet in Crete that was erected some 7,000 years ago.

What acts a ribbed vault structure?

A rib (or ribbed) vault is supported by a series of arched diagonal ribs that divide the vault's surface into panels. A fan vault is composed of concave sections with ribs spreading out like a fan.

What are the few main components of vault?

3.1.

Its main components are: A persistence backend – storage for all secrets. An API server which handles client requests and performs operations on secrets. A number of secret engines, one for each type of supported secret type.

What's the difference between arches and vaults?

Since an arch depends on the interdependence of its parts, it will not stand until each of its parts is in place. ... A vault is a ceiling of brick, stone, or concrete built in the principle of the arch.

Did Romans invent vaults?

1. The arch and the vault. The Romans did not invent but did master both the arch and vault, bringing a new dimension to their buildings that the Greeks did not have. ... Stacks of arches allowed them to build higher spans, best seen in some of their spectacular aqueducts.

What were the three types of vaults?

The 3 types of vaults that were used are barrel-vault, groined or the four-part vault and the dome.

What is parchment quizlet?

What is parchment? thin material made from sheepskin or goatskin, used for books or manuscripts.

What type of arch vault or dome is each?

What type of arch, vault, or dome is each? Corbel dome: This type of dome is made up of rotating corbel arches along a central axis. Tholos: A small circular dome structure. Rotunda: A round, cylinder structure, usually toped with a dome.

What is a quadripartite vault?

Quadripartite vault – A Rib vault where the bay is divided by diagonal and transverse ribs into four cells or webs. ... A rib vault may be a quadripartite rib vault (which is divided into four sections by two diagonal ribs) and a sexpartite rib vault (a rib vault whose surface is divided into six sections by three ribs).

When you place two cradle vaults together at a right angle you create a N ):?

A groin or cross vault is formed at the point at which two barrel vaults intersect at right angles. In a ribbed vault, there is a framework of ribs or arches under the intersections of the vaulting sections.

What are vaults and domes?

The distinction between the two is that a vault is essentially an arch which is extruded into the third dimension, whereas a dome is an arch revolved around its vertical axis.

How do Catalan vaults work?

Design and origin. Catalan vault is a building technique that lays plain bricks lengthwise over the parallel wooden beams or centering to form an arch-shaped ceiling. ... Constructing vaults in brick was mastered by the Romans, who use arched structure to strengthen their buildings and constructions.

What is Catalan tile?

The Catalan vault (Catalan: volta catalana), also called thin-tile vault, Catalan turn, Catalan arch, boveda ceiling (Spanish bóveda 'vault'), or timbrel vault, is a type of low brickwork arch forming a vaulted ceiling that often supports a floor above.

What is a barrel vault in architecture?

A barrel vault is a continuous arched shape that may approximate a semi-cylinder in form, resembling the roof of a tunnel, or may be pointed at its apex. ... It is typically formed by a series of arches or vaults placed side by side or by a continuous shell.
