In the petrographic microscope, the light is collimated by the condenser into a bundle of beams,all parallel to the optical aids of the microscope. ... The light beams are polarized in one direction (by the polarizer) before the light reaches the specimen. This light is called plane polarized light.

How does petrographic microscope help geologists?

A petrographic microscope is a type of optical microscope used in petrology and optical mineralogy to identify rocks and minerals in thin sections. (Credit: Renee Pillers, USGS. ... This microscope can be used for optical observations and imaging of samples.

How does crossed polarized light microscopy function?

In a polarized light microscope, a polarizer intervenes between the light source and the sample. Thus, the polarized light source is converted into plane-polarized light before it hits the sample. ... These two waves are called ordinary and extraordinary light rays. The waves pass through the specimen in different phases.

How do you use a polarizing microscope?

Rotate the 10x objective lens into position on the nosepiece. If necessary, push the analyser completely into place so that it is aligned in the light path. Before placing the specimen on the stage, gradually rotate the polariser until the field of view becomes as dark as possible (extinction).

What is the function of petrological microscope?

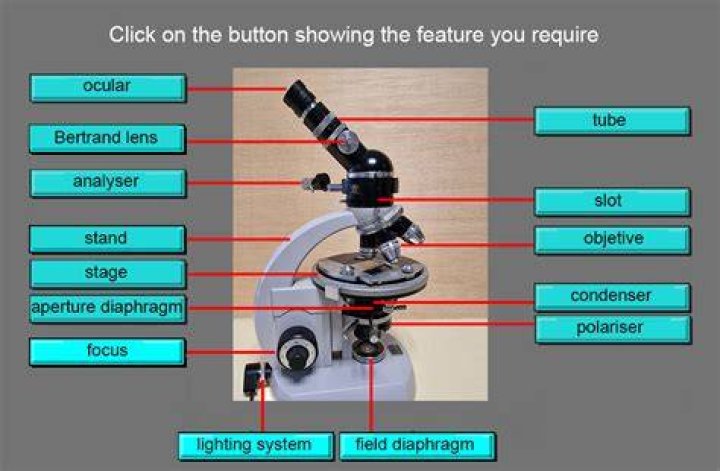

A petrographic microscope is used to observe a series of characteristics in a mineral which reflect its properties and allow us to identify it. The petrographic microscope is a compound microscope which can work with plane polarised light, meaning that it has some peculiarities.

The Petrographic Microscope

Why is polarized light used in petrographic microscope?

Polarized light is a contrast-enhancing technique that improves the quality of the image obtained with birefringent materials when compared to other techniques such as darkfield and brightfield illumination, differential interference contrast, phase contrast, Hoffman modulation contrast, and fluorescence.

What is petrographic analysis?

Petrology is the study of rocks. A petrographic analysis is an in depth investigation of the chemical and physical features of a particular rock sample. A complete analysis should include macroscopic to microscopic investigations of the rock sample.

What is the function of the polarized microscope in fiber analysis?

A polarized light microscope is a central tool for the identification and analysis of manufactured fibers. Many characteristics of manufactured fibers can be viewed in non-polarized light, however, and these provide a fast, direct and accurate method for the discrimination of similar fibers.

Why polarized light is used in petrographic microscope for the study of anisotropic minerals?

Light entering a crystal may be refracted or reflected. Petrographic microscopes have polarized light sources that illuminate a thin section. ... In plane polarized light we can distinguish opaque and nonopaque minerals; we can see crystal shape, habit, cleavage, color and pleochroism, and relief.

What is crossed polarized light?

Cross-polarisation, with regard to visible light, is a process wherein two polarisers with perpendicular orientation to one another are used on the incident and reflected lights. ... Cross-polarised light eliminates glare and specular highlights, allowing for an unobstructed view of subsurface pathology.

What happens when a polarized light strikes an analyzer?

When two polarizers are crossed, their transmission axes are oriented perpendicular to each other and light passing through the first polarizer is completely extinguished, or absorbed, by the second polarizer, which is typically termed an analyzer.

What is the meaning of petrographic?

pe·trog·ra·phy. (pə-trŏg′rə-fē) The description and classification of rocks.

What is petrographic analysis of concrete?

Petrographic Analysis (ASTM C856) - A microstructural examination by optical and scanning electron microscopy (SEM) of the paste and aggregate on a prepared sample of concrete to look for features such as degree of cement hydration, microcracking, reaction products, breakdown of aggregate and evidence of poor freeze- ...

How do you distinguish opaque minerals from non opaque minerals in thin section?

Opaque minerals do not transmit light in thin sections. So, they appear black in both PP and XP light at all times. Common opaque minerals are graphite, oxides such as magnetite or ilmenite, and sulfides such as pyrite. Isotropic minerals are minerals that have the same properties in all directions.

What is the difference between plane polarized light and cross polarized light?

If the lower polarizer transmits light in a N-S orientation, the upper polarizing direction is E-W. When both polars are being used, the polars are "crossed". ... When the analyzer is not in use, the light seen through the microscope is called "plane light" or "plane polarized light".

What is the purpose of using phase contrast and polarized microscope?

Phase contrast is a light microscopy technique used to enhance the contrast of images of transparent and colourless specimens. It enables visualisation of cells and cell components that would be difficult to see using an ordinary light microscope.

What is polarizer and analyzer?

Polarizers and analyzers are parts of optical instruments that use plane polarized light. ... In other words, a polarizer can generate plane polarized light from light waves coming from a normal light source. The analyzer acts as a second polarizer. Polarizers and analyzers are used in polarized light microscopy.

What will happen if the analyzer and polarizer are removed from a polarized light microscope?

Removal of the polarizer and analyzer (while other components remain in place) from the light path renders the instrument equal to a typical brightfield microscope with respect to the optical characteristics. ... These components control the size, intensity, and distribution of light in the illumination field.

What are the advantages of polarizing microscope?

Advantage: Polarized light microscopy is a quick and convenient method for the identification of salts. The mineralogy and chemistry of salts is determined. Basic polarizing microscopes are portable and can be used in any location, hence sensitive salts can be identified on site.

What is the importance of making petrographic reports for samples obtained in the field?

Brief Exploration Petrographic Report

This report provides identification, formal description of textures, structures and mineralogy, percentage modal estimate and significance (both economical and geological) of the sample in the suite and in relation to requested aspects.

What is petrographic thin section?

In optical mineralogy and petrography, a thin section (or petrographic thin section) is a thin slice of a rock, mineral, soil, pottery, bones, or even metal sample, prepared in a laboratory, for use with a polarizing petrographic microscope, electron microscope and electron microprobe.

What do you understand by igneous petrology?

Igneous petrology is the study of igneous rocks—those that are formed from magma. As a branch of geology, igneous petrology is closely related to volcanology, tectonophysics, and petrology in general. ... Petrography, crystallography, and isotopic studies are common methods used in igneous petrology.
