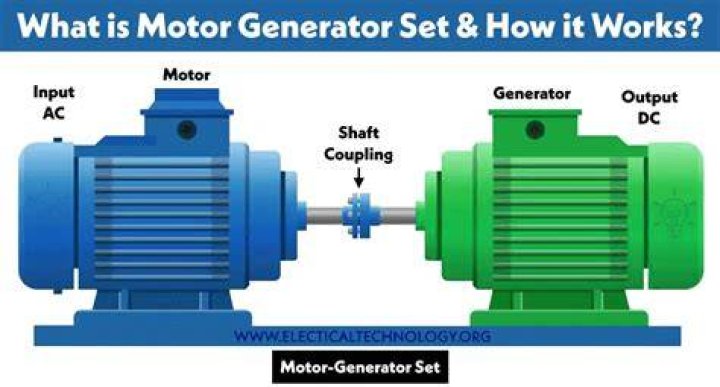

motor generator, also called Motor-generator Set, an electric motor coupled to an electric generator to convert electric power from one from to another. The motor operates from the available electric power source, and the generator provides power of the characteristics desired for the load.

What is the purpose of a motor generator?

Motor generators are used to isolate electrical loads from power supply lines. It consists of an electrical generator driven by an electric motor. This is used to convert the electrical power frequency, voltage, and phase.

How does a generator work step by step?

Electric generators work on the principle of electromagnetic induction. A conductor coil (a copper coil tightly wound onto a metal core) is rotated rapidly between the poles of a horseshoe type magnet. The conductor coil along with its core is known as an armature.

What is the principle of motor and generator?

The motor uses electricity. It works on the principle that when a current-carrying conductor is placed in a magnetic field, it experiences a force and rotates. The word 'generator' means to generate something, and an electrical generator produces (generates) electricity.

How current is produced in motor and generator?

The principle of rotating a conductor in a magnetic field to generate current is used in electrical generators. A generator converts mechanical energy (motion) into electrical energy. ... The conductor is formed of a coil of wire, placed inside a magnetic field. The conductor is manually rotated within the magnetic field.

What's the difference between motors and generators?

How do motors and engines differ?

“People use both interchangeably, but the difference is that motors run on electricity and engines run on combustion. The engine converts various forms of fuels into mechanical force, while the motor transforms electrical energy into mechanical energy.”

What is motor principle?

The electric motor works on the principle of magnetic effects of current. Its principle is when a rectangular coil is placed in a magnetic field and current is passed through it, the coil rotates as a result of the forces acting on the coil.

What are the main parts of a generator?

• Engine.
• Alternator.
• Fuel System.
• Voltage Regulator.
• Cooling and Exhaust Systems.
• Lubrication System.
• Battery Charger.
• Control Panel.

How does a generator produce electricity?

How Do Generators Create Electricity? Generators don't actually create electricity. Instead, they convert mechanical or chemical energy into electrical energy. They do this by capturing the power of motion and turning it into electrical energy by forcing electrons from the external source through an electrical circuit.

Can we convert motor to generator?

Any DC motor with permanent magnets can easily be a generator. It doesn't matter whether it is brushed or not; brushless motors make great generators but you will need to add a rectifier to get a DC output.

Can motors generate electricity?

You can use just about any motor to generate electric current, if it is wired correctly and you follow specific rules for its use. Modern AC induction motors are quite simple to wire as alternating current generators, and most will begin generating electricity the first time you use them.

How a simple motor and generator operates?

When an electrical current is applied to the motor, the magnets or windings create a magnetic field that both attracts and repels the rotor, causing it to spin. The spinning motion of the rotor drives the shaft that it is mounted on, which in turn can deliver the mechanical power wherever it is needed.

Do generators produce AC or DC?

While generators feature a stationary field in which the conductor rotates to produce electromagnetic induction, an alternator's entire magnetic field turns with its conductors remaining stationary. Generators are capable of both AC and DC power.

What are the 6 methods of producing electricity?

In this learning activity you'll review the six different ways in which electricity is produced: chemical, friction, heat, light, magnetism, and pressure.

What determines the voltage of a generator?

The speed at which the conductor moves through the fixed magnetic field and the strength of the magnetic field determine the output voltage. This speed is a function of the rotational speed (RPM) of the generator/engine. As the speed of the engine the generator increases, the voltage produced also increases.

What are the 2 types of generator?

There are two fundamental types of generators known as AC (alternating current) and DC (direct current) generators. While the technique of producing electricity is the same in both types, AC and DC power become different in terms of their applications – the way in which loads receive electric power.

What are the 3 parts of a generator?

A generator consists of three main parts: A fuel system, an engine, and an alternator. The fuel system supplies stored chemical energy to the engine, where its combustion takes place. As a result, mechanical energy is generated, which is supplied to the alternator.

What is the rotating part of a generator called?

Mechanically a generator consists of a rotating part and a stationary part: Rotor: The rotating part of an electrical machine. Stator: The stationary part of an electrical machine, which surrounds the rotor.

How do motors work?

How do motors work? Electric motors work by converting electrical energy to mechanical energy in order to create motion. Force is generated within the motor through the interaction between a magnetic field and winding alternating (AC) or direct (DC) current.

How do DC motors work?

But how do DC motors work? ... In a DC motor, the stator provides a rotating magnetic field that drives the armature to rotate. A simple DC motor uses a stationary set of magnets in the stator, and a coil of wire with a current running through it to generate an electromagnetic field aligned with the centre of the coil.

Is an electric motor AC or DC?

A Primer on Electric Motors

Electric motors are machines that convert electrical energy—from either stored power or a direct electrical connection—into mechanical energy through the production of rotational force. ... AC motors, which are powered by alternating current. DC motors, which are powered by direct current.

Do cars have motors or engines?

A motor is a subset of engines that produce motion as the mechanical work. So all motors are engines but not all engines are motors. Sometimes they are used interchangeable eg. rocket engine and rocket motor.

Why are engines called motors?

“Motor” is rooted in the Classical Latin movere, “to move.” It first referred to propulsive force, and later, to the person or device that moved something or caused movement. “As the word came through French into English, it was used in the sense of 'initiator,'” says Fuller.

Is the alternator a generator?

An alternator is an electrical generator that converts mechanical energy to electrical energy in the form of alternating current. For reasons of cost and simplicity, most alternators use a rotating magnetic field with a stationary armature.

Can generators produce DC voltage?

A direct-current (DC) generator is a rotating machine that supplies an electrical output with unidirectional voltage and current. The basic principles of operation are the same as those for synchronous generators. ... The field is produced by direct current in field coils or by permanent magnets on the stator.
