An optical collimator consists of a tube containing a convex lens at one end and an adjustable aperture at the other, the aperture being in the focal plane of the lens. Radiation entering the aperture leaves the collimator as a parallel beam, so that the image can be viewed without parallax.

What do collimators control?

As collimation increases, the quantity of scatter radiation decreases, and radiographic contrast increases; as collimation decreases, the quantity of scatter radiation increases, and radiographic contrast decreases.

What is the main function of a collimator?

The function of a collimator is to stop all non-perpendicular photons from striking the crystal. In spectrometer, Collimator is used as the telescope. The collimator affects two important imaging parameters – sensitivity and resolution.

How does a laser collimator work?

A laser collimator emits a beam that bounces off the primary and secondary mirrors in a reflector and (hopefully) back onto the collimator's target. Collimation cap: A collimation cap, or sight tube, is a plug that fits in your reflector's focuser. It has a small central hole.

How are collimators classified?

Commercially available collimators are categorized according to the maximum 'V-ray energy for which their septal thickness is considered to be adequate. Low-energy collimators generally have an upper limit of about 150 ke V arid medium-energy collimators about 400 ke V.

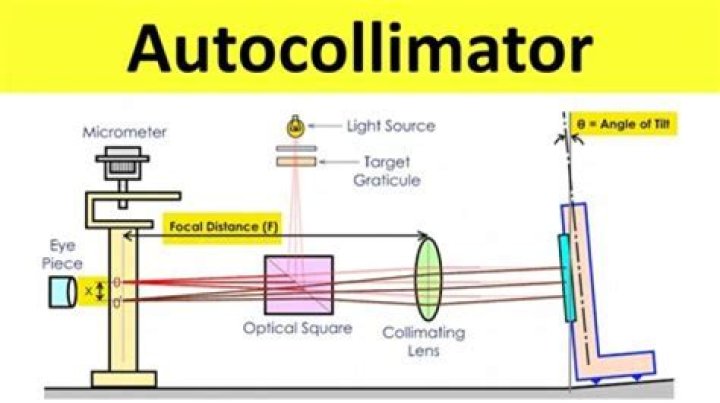

Autocollimator Working animation

What are the functions of secondary collimators?

The secondary collimator ensures that only constant angle scatter reaches the detector. As indicated in Fig. 21, it consists of a series of thin lamella that are conical surfaces of resolution around the Z axis.

What is meant by collimation of electromagnetic radiation?

A collimated beam of light or other electromagnetic radiation has parallel rays, and therefore will spread minimally as it propagates. A perfectly collimated light beam, with no divergence, would not disperse with distance. ... Other forms of electromagnetic radiation can also be collimated.

How often should you collimate Dobsonian?

I colliminate for every observing session. Only takes me a minute or two to do so even with my grab and go 8 inch.

Is laser an incoherent?

Light emitted by normal means such as a flashlight or a bulb, is incoherent or the photons of the many wave frequencies of light are oscillating in different directions. ... Only a beam of laser light will not spread and diffuse. In lasers, waves are identical and in phase, which produces a beam of coherent light.

Why are collimators made of lead?

Lead is the most commonly used material for collimators, because of it's high density. Besides this, lead is the least expensive material for collimator purposes. ... Nuclear Shields can provice Microcast and Microlinear collimators for low, medium or high energy imaging.

What is collimator in radiotherapy?

Collimators (beam limiting devices) are used in linear accelerators used for radiotherapy treatments. They help to shape the beam of radiation emerging from the machine and can limit the maximum field size of a beam. ... When using photons, it is placed after the beam has passed through the X-ray target.

Why is collimation important in radiology?

Proper collimation is one of the aspects of optimising the radiographic imaging technique. It prevents unnecessary exposure of anatomy outside the area of interest, and it also improves image quality by producing less scatter radiation from these areas.

What is the 15 rule in radiography?

The 15% rule states that changing the kVp by 15% has the same effect as doubling the mAs, or reducing the mAs by 50%; for example, increasing the kVp from 82 to 94 (15%) produces the same exposure to the IR as increasing the mAs from 10 to 20. A 15% increase in kVp has the same effect as doubling the mAs.

What is the advantage of collimators over other beam restricting devices?

Collimating to the appropriate field size is a basic method for protecting the patient from unnecessary exposure. As beam restriction or collimation increases, field size decreases and patient dose decreases. As beam restriction or collimation decreases, field size increases and patient dose increases.

Why does the air gap technique work?

Air gap technique is a well-known method to reduce the amount of scattered x-ray radiation reaching the detector, thus reducing noise and improving image contrast. It is rather commonly utilized instead of a conventional grid in plain radiography.

What is a fast Newtonian?

Fast: A fast scope has a focal ratio fast enough that aberrations are a serious concern. An F/4 Newtonian has enough coma that it takes care and expense to deal with. Careful collimation, a coma corrector and fancy eyepieces and your are on the road.

Can you use a reflector telescope in daylight?

#6 Rick J. Any reflector can be used for terrestrial viewing, just they aren't very well suited to the task even with an erecting lens. By day the eye's pupil is often smaller than the shadow of the secondary at low power, about all you can use by day due to local seeing issues.

Do Dobsonian telescopes need to be collimated?

A Dobsonian is a reflector telescope, it uses mirrors, a primary and a secondary, and these need to work together. They can get out of alignment through movement and with use. Hence, the reason for collimation.

What type of telescope is a Dobsonian?

Since the 1990s, manufactured Dobsonians using the truss tube design have become increasingly popular. The first commercial truss Dobsonian was released into the market by Obsession Telescopes in 1989.

How do you light collimate?

To produce collimated light you can either place an infinitesimally small source exactly one focal length away from an optical system with a positive focal length or you can observe the point source from infinitely far away.

What is height of collimation method?

Height of Collimation is the height of the horizontal plane through the telescope. ... The survey station is below the horizontal plane through the instrument, so to find reduced level, or ground height, take the staff reading away from Height of Collimation.

What does collimate mean?

verb (used with object), col·li·mat·ed, col·li·mat·ing. to bring into line; make parallel. to adjust accurately the line of sight of (a telescope).
