A cascade reverser is a reverse thrust system most typically installed on high bypass ratio turbofan engines. A cascade reverser incorporates radially arranged openings near the aft edge of the fan cowl of a turbofan engine. Within each of the openings is mounted a cascade set of air flow turning vanes.

How does thrust reversers work?

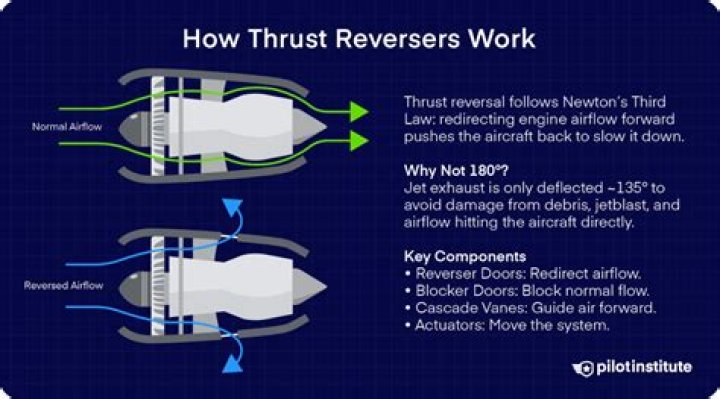

How Does a Thrust Reverser Work? A thrust reverser is contained within the nacelle system, an aerodynamic structure surrounding the jet engine. ... To slow down after landing, the aircraft engine itself does not run in reverse; rather, the direction of the engine's fan airflow is reversed, creating a massive drag.

How effective are thrust reversers?

By the OP's proposed measurement (reverse thrust / forward thrust), the efficiency is also strongly dependent on the engine speed. At maximum thrust the reverser may be 50% or 60% efficient, but at lower power levels it may be less than 10%.

What are the two types of thrust reversers?

Normally, a jet engine has one of two types of thrust reversers: a target reverser or a cascade reverser. [Figure 15-19] Target reversers are simple clamshell doors that swivel from the stowed position at the engine tailpipe to block all of the outflow and redirect some component of the thrust forward.

What are thrust reversers used for what are the two categories of thrust reversers?

Most thrust reverser systems can be divided into two categories: mechanical-blockage and aerodynamic-blockage. Mechanical blockage is accomplished by placing a removable obstruction in the exhaust gas stream, usually somewhat to the rear of the nozzle.

Thrust reverser system

How do thrust reversers work on a jet engine?

Propeller-powered aircraft reverse thrust action by changing the pitch of the propeller blades. Usually, a hydro-mechanical system is used to change the blade angle, giving a braking response when activated.

What is Cascade reverse thrust?

A cascade reverser is a reverse thrust system most typically installed on high bypass ratio turbofan engines. A cascade reverser incorporates radially arranged openings near the aft edge of the fan cowl of a turbofan engine. Within each of the openings is mounted a cascade set of air flow turning vanes.

When should thrust reversers be used?

Reverse thrust is typically applied immediately after touchdown, often along with spoilers, to improve deceleration early in the landing roll when residual aerodynamic lift and high speed limit the effectiveness of the brakes located on the landing gear.

Why does the A380 only have 2 reversers?

When the A380 was first designed, there was a debate about whether the plane would feature reverse thrust at all. A380s are designed to come to a complete stop using their brakes alone. Ultimately the decision was made to put reverse thrust on two engines to help minimize the risk of aquaplaning.

Can thrust reversers be deployed in flight?

They tend to make extremely steep descents more often (called a tactical descent/approach), so thrust reversers can be used in flight. I did some testing with the stock 747-400 in X-Plane. Deploying the thrust reverser only changes the force applied by the engine, but doesn't seem to affect the air flow.

Why do jet engines open when landing?

Jet engines split open in order to slow down the speed of airplanes when landing. The opening of engines during landing is technically known as a thrust reversal mechanism, and diverts the airflow in the opposite direction. This helps reduce the speed of the airplane, and allows for landings on shorter runways.

How does a jet plane slow down?

In addition to wing spoilers, airplanes use disc brakes. Airplane disc brakes are similar to the braking system in automobiles. ... Disc brakes will squeeze the wheels, thereby slowing down the speed at which they spin. In turn, this reduces the speed of the airplane so that it can come to a complete stop on the runway.

Is reverse thrust mandatory?

Under normal conditions, reverse thrust usually isn't necessary after landing as the plane's braking system will suffice. However, in adverse conditions such as rain and snow, reverse thrust can be crucial as brakes are much less effective.

How does C 17 reverse thrust work?

Thrust reversal, also called reverse thrust, is the temporary diversion of an aircraft engine's thrust so that it acts against the forward travel of the aircraft, providing deceleration. ... The C-17 Globemaster III cargo aircraft is one of the few modern aircraft that uses reverse thrust in flight.

Why can't planes go in reverse?

Planes move by pulling or pushing themselves through the air, rather than by applying engine power to spin their wheels, and thus have no forward or reverse gears. Like ground vehicles' engines, the aircraft's engines can't run backwards. ... The vehicles obviously do not have the strength to push the plane.

What prevents thrust reverser deployment in flight?

There are three types of safety sensors and switches that can be installed to monitor the position of the thrust reverser and prevent a mid-flight deployment. These are limit switches, proximity sensors, and proximity switches.

Can an A380 fly on 2 engines?

An A380 has four engines, each of which provides around 356.81 kN (80,210 lbf) of thrust. ... Indeed, even flying the A380 under the power of two engines is something that Federal Aviation Regulations state should only be done in extreme cases.

What is the weight of an A380?

With the Airbus A380 weighing in fully loaded at 1,265,000 pounds, you might think stopping it within a reasonable distance after landing would require a Phalanx of Heavy-duty thrust reversers.

What and where do we use reverse thrust?

Airplanes can't reverse direction in midair. Rather, reverse thrust is used primarily to assist pilots in decelerating their airplane prior to landing. When engaged, it changes the direction in which air comes out of the airplane's engines, allowing the airplane to slow down in preparation of landing.

Can a plane reverse on its own?

no one ever does. Some aircraft can do a so-called 'powerback', but in most cases, airplanes either don't have this technical capability. Most airplanes can taxi backwards by using reverse thrust. This entails directing the thrust produced by the plane's jet engines forward, rather than backwards.

Can a jet plane reverse?

Direct answer to your question: No, the engines do not reverse. However, there is thrust reverse on most jetliners to help the deceleration by this deflected air.

How does an afterburner work?

The idea behind an afterburner is to inject fuel directly into the exhaust stream and burn it using this remaining oxygen. This heats and expands the exhaust gases further, and can increase the thrust of a jet engine by 50% or more. ... Therefore most planes use afterburners sparingly.

Do jet engines reverse when landing?

Is that reverse? A: Yes, after touchdown the air from the fan is deflected out the side of the cowling. To increase drag, the RPM of the engine is increased.

How fast do jet engines rotate?

It's the small turbine blades that spin, and they're connected to a shaft, which is connected to the compressor itself and the fan,” Attia explained. That turbine shaft spins around 20,000 RPM — which is really, really fast.
