pressure, permitting fuel pressure to force the inlet needle off its seat allowing fuel to enter the metering chamber. The fuel then travels from the metering chamber through the idle and main fuel supply orifices and channels to the discharge ports, into the carburetor bore and to the engine.

How to adjust Tillotson carburetor?

1. Locate the idle set screw at the very bottom of the Tillotson carburetor. ...
2. Find the low-speed adjustment screw with the "L" next to it on the carburetor body. ...
3. Locate the high-speed adjustment screw with the "H" on the body. ...
4. Start the motor and let it warm up for a few minutes.

How do you adjust the float on a Tillotson carburetor?

To adjust the float level, remove the cover to which the needle valve and float assembly are attached. Hold the assembly in an inverted position and bend the float lever arm until the correct setting is obtained. Two points should be considered when checking float level on Tillotson carburetors.

How do you identify a Tillotson carb?

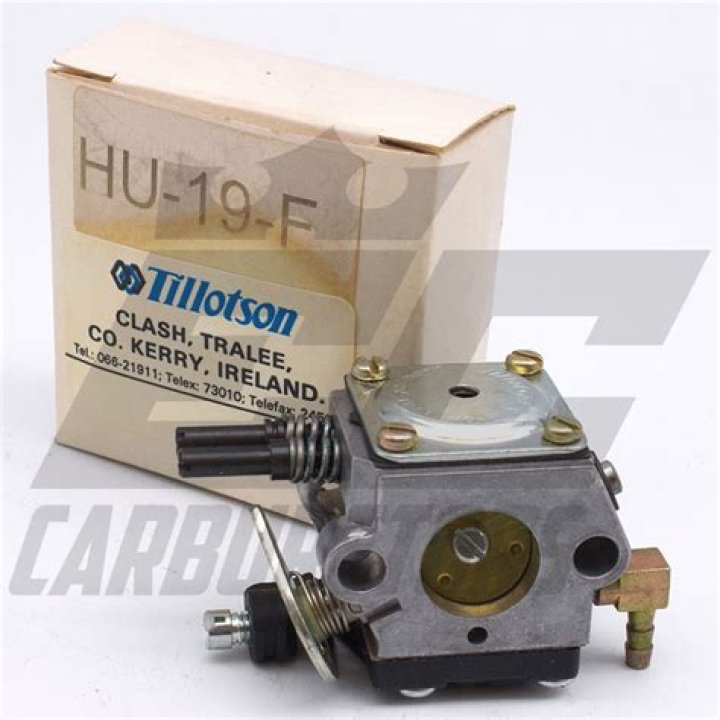

Typically, Tillotson carburetor model numbers begin with a two-letter designation, such as "HS" or "HU," followed by a position code, such as "158F" or "7A." The first section is the carburetor model series and the second number is the specific carburetor designation within that series.

Where are Tillotson carburetors made?

Our innovative technologies and OE quality make us the carburetor of choice for long life, reliability and performance. We offer worldwide support and flexible manufacturing alternatives through our manufacturing and support facilities in Ireland, the United States, China and Argentina.

TILLOTSON CARBURETOR REBUILD TRICKS! IT'S EASY!

Is Tillotson still in business?

The company still exists today simply as Tillotson. They continue to produce carburetors, as well as fuel injection systems and other automotive components. The collection consists of three volumes produced by the Tillotson Manufacturing Company. Two volumes are an appraisal of the Bordan Avenue plant from 1964.

How do I know which carburetor I have?

Look at the upper front of the carburetor on the piece known as the airhorn, or choke tower. This is a rectangular part of the carburetor with rounded edges, open to the top of the part. There will be a small number stamped there.

What does the float needle do in a carburetor?

The carburetor float needle, moved by the float, controls fuel flow, maintaining the fuel level in the chamber. As suggested by its name, the “float” needs to float in the fuel, so it's usually made of hollow plastic, metal or fuel-resistant foam — some were made of cork in the old days.

How do you adjust a Ski Doo carburetor?

1. Turn both the low-speed and high-speed mixture needles clockwise gently on the carburetor with a screwdriver until the needles are lightly seated. ...
2. Adjust the low-speed mixture needle by turning it counterclockwise 3/4 of a turn with the screwdriver.

Why is my lawn mower not getting gas?

The engine can't get gas if the fuel filter is plugged or the carburetor inlet needle is stuck. Check the fuel filter (if equipped) by removing the fuel line at the carburetor. ... If you still don't get any gas, the fuel line is kinked or plugged. And check inside the tank for any debris that might clog the outlet.

How do I know what carburetor is in my riding mower?

Carburetor Location in Riding Mowers

On a riding mower, you will generally find the carburetor on the side of the mower's engine. Similar to a walk-behind mower, the carb is located below or behind the air filter.

How do I know if my lawn mower carburetor is bad?

1. The lawn mower engine has trouble starting.
2. The engine starts but stalls while you're cutting the lawn.
3. The engine runs rough during mowing.
4. Black smoke is seen coming out of the muffler.
5. There is a noticeable increase in fuel consumption during normal lawn mower use.

What does CFM mean on a carburetor?

Like we said, how much hp your engine makes doesn't matter when sizing a carburetor. What matters is this formula: Cubic Inches x RPM / 3456 = CFM (cubic feet per minute) / Volumetric Efficiency.

What are the different parts of a carburetor?

• Throttle Valve.
• Strainer.
• Venturi.
• Metering system.
• Idling system.
• Float Chamber.
• Mixing Chamber.
• Idle and Transfer port.

How much horsepower does a Tillotson 212 have?

Tillotson 212cc Engine stock with Ruixing or comparable carburetor. 9+ Horse Power with a lightened flywheel rated at 10,000RPM (not aluminum), High compression and high flow Hemi Head with 27mm-24mm valves. -- VERY LIMITED SUPPLY -- ONLY AT GOPOWERSPORTS.

Does carburetor cleaner work?

Most carburetor cleaners do the work for you, no scrubbing required. Readily available and affordable. Most auto parts stores will carry a few brands of carburetor cleaner. Typically less than $20, carburetor cleaners are a cheap, efficient way to improve the overall performance of your vehicle.

How do you unstick a floating needle?

When the pin is almost out hold onto the float and pull the pin out the rest of the way. With the pin, out the float should be free. If the gas is still on be prepared to shut it off. Gently pull down on the float and which will release the needle valve and the float and valve will come off.

How do you test a carburetor float?

Hold a float next to your ear and shake it. If you hear gas inside, the float has an obvious leak. Reveal less-obvious leaks by grasping the float by the tang with a pair of pliers and submerging it into a pan of very hot water. A stream of bubbles will also indicate a leak.
