Two or more capacitors in series will always have equal amounts of coulomb charge across their plates. As the charge, ( Q ) is equal and constant, the voltage drop across the capacitor is determined by the value of the capacitor only as V = Q ÷ C.

How do you calculate capacitors in series?

When capacitors are connected one after another, they are said to be in series. For capacitors in series, the total capacitance can be found by adding the reciprocals of the individual capacitances, and taking the reciprocal of the sum.

What is the formula to find capacitors?

The generalised equation for the capacitance of a parallel plate capacitor is given as: C = ε(A/d) where ε represents the absolute permittivity of the dielectric material being used. The dielectric constant, ε_o also known as the “permittivity of free space” has the value of the constant 8.84 x 10^-12 Farads per metre.

How do we calculate capacitors in series give examples?

Here are the rules for calculating capacitances in series: If the capacitors are of equal value, you're in luck. All you must do is divide the value of one of the individual capacitors by the number of capacitors. For example, the total capacitance of two, 100 μF capacitors is 50 μF.

Are capacitors in series equal?

Generally, any number of capacitors connected in series is equivalent to one capacitor whose capacitance (called the equivalent capacitance) is smaller than the smallest of the capacitances in the series combination.

Capacitors in Series and Parallel Explained!

How do you calculate capacitors in parallel and series?

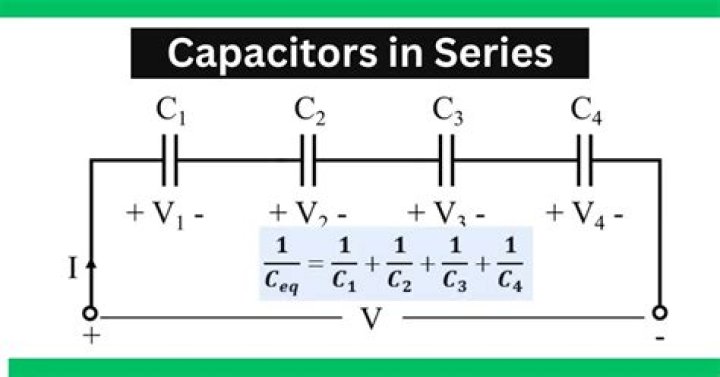

1. Total capacitance in series 1CS=1C1+1C2+1C3+…
2. Total capacitance in parallel C_p = C₁ + C₂ + C₃ + …
3. If a circuit contains a combination of capacitors in series and parallel, identify series and parallel parts, compute their capacitances, and then find the total.

How do you solve capacitors in series and parallel?

To calculate the total overall capacitance of a number of capacitors connected in this way you add up the individual capacitances using the following formula: CTotal = C1 + C2 + C3 and so on Example: To calculate the total capacitance for these three capacitors in parallel.

How do you calculate capacitors in a circuit?

As the capacitor charges, the value of Vc increases and is given by Vc = q/C where q is the instantaneous charge on the plates. At this instant (time t) there will be a current I flowing in the circuit. We also know that Vs = Vc + Vr and Vc = q/C.

How do you solve a capacitor problem?

1. For example: The voltage across all the capacitors is 10V and the capacitance value are 2F, 3F and 6F respectively.
2. Charge in first capacitor is Q₁ = C₁*V₁ = 2*10 = 20 C.
3. Charge in first capacitor is Q₂ = C₂*V₂ = 3*10 = 30 C.
4. Charge in first capacitor is Q₃ = C₃*V₃ = 6*10 = 60 C.

When a number of capacitors are connected in series?

When capacitors are connected in series, the total capacitance is less than any one of the series capacitors' individual capacitances. If two or more capacitors are connected in series, the overall effect is that of a single (equivalent) capacitor having the sum total of the plate spacings of the individual capacitors.

What is the formula of circuit?

Now the Ohm's law equation (ΔV = I • R) can be used to determine the total current in the circuit. In doing so, the total resistance and the total voltage (or battery voltage) will have to be used. For parallel branches, the sum of the current in each individual branch is equal to the current outside the branches.

What is the resistor formula?

According to Ohm's law, the voltage drop, V, across a resistor when a current flows through it is calculated by using the equation V=IR, where I is current in amps (A) and R is the resistance in ohms (Ω). This implies that the total resistance in a series is equal to the sum of the individual resistances.

Why does capacitance decrease in series?

By connecting capacitors in series, we are virtually moving plates apart. Of course we can place the capacitors closer or farther on the circuit board, but we have now have two gaps instead of one between the top-most plate and the bottom-most plate. This reduces capacitance.

Which is true about capacitors in series?

Which is true about capacitors in series? They have the same charge. Which is true about capacitors in parallel? They have the same potential difference.

Can I use 2 capacitors in series?

Much like resistors, multiple capacitors can be combined in series or parallel to create a combined equivalent capacitance. Capacitors, however, add together in a way that's completely the opposite of resistors.

What is capacitor combination?

When one terminal of a capacitor is connected to the terminal of another capacitors , called series combination of capacitors. In series, each capacitor has same charge flow from battery. The three capacitors C1​,C2​ and C3​ are in series.

How do you calculate the charge on a capacitor?

The amount of charge that moves into the plates depends upon the capacitance and the applied voltage according to the formula Q=CV, where Q is the charge in Coulombs, C is the capacitance in Farads, and V is the potential difference between the plates in volts.

What is the value of uF?

The base unit of capacitance is the farad (F). This value is much too large for ordinary circuits, so household capacitors are labeled with one of the following units: 1 µF, uF, or mF = 1 microfarad = 10^-6 farads.

How do you find the capacitance of a capacitor?

The capacitance of a capacitor is the ability of a capacitor to store an electric charge per unit of voltage across its plates of a capacitor. Capacitance is found by dividing electric charge with voltage by the formula C=Q/V.

Why would you put capacitors in series?

Higher working voltage

It is sometimes desirable to use a series connection of capacitors in order to be able to work with higher voltages. ... In this case, by connecting five or more such capacitors in series, the high voltage would be divided across all the capacitors and the maximum rating would not be exceeded.

Why the capacitances of capacitors add up in series and parallel the way they do?

The greater the value of capacitance, the more electrons it can hold. If the size of the plates is increased, the capacitance goes up because there's physically more space for electrons to hang out.

How do you calculate power in a series circuit?

The total power in a series circuit is equal to the SUM of the power dissipated by the individual resistors. Total power (PT) is defined as: PT = P1 + P2 + P3... Pn. As an example: A series circuit is made up of three resistors with resistance values of 5 ohms, 10 ohms, and 15 ohms.
