In Normal SCRs(Converter Grade) the Turn ON time will be in the range of 1 to 4 μsec approximately and Turn OFF time ranges between 50 - 100 μsec. So the Turn ON time is less than turn OFF time.

What is turn on time of SCR?

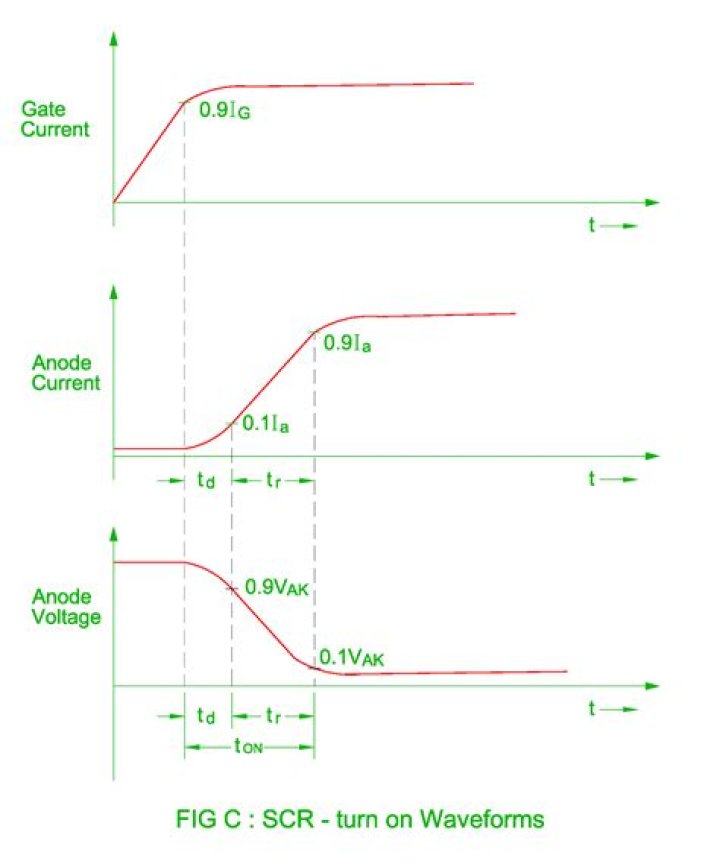

Turn ON Time of SCR

A forward biased thyristor can be turned on by applying a positive voltage between gate and cathode terminal. ... This transition time is called turn on time of SCR and it can be subdivided into three small intervals as delay time (t_d) rise time(t_r), spread time(t_s).

What is turn off time of SCR?

The turn-off time of SCR:

That means the gate circuit cannot turn off the device. For turning off the SCR anode current must fall below the holding current. After the anode current falls to zero, we cannot apply a forward voltage across the device due to the presence of the carrier.

How does an SCR turn on?

To trigger, or fire, an SCR, voltage must be applied between the gate and cathode, positive to the gate and negative to the cathode. When testing an SCR, a momentary connection between the gate and anode is sufficient in polarity, intensity, and duration to trigger it.

How fast can a SCR turn on and off?

The SCRs, which have slow turn OFF time, usually between 50 to 100 microseconds, are called as converter grade SCRs. These are used in phase controlled rectifiers, cyclo converters, AC voltage regulators, etc. The SCRs, which have fast turn OFF time, usually between 3 to 50 microseconds, are inverter grade SCRs.

SCR Triggering Methods or SCR turn ON Methods in Power Electronics by Engineering Funda

How is SCR turned off?

To turn OFF the conducting SCR, the anode or forward current of SCR must be reduced to zero or below the level of holding current, and then a sufficient reverse voltage must be applied across the SCR to regain its forward blocking state.

How turning on & off the SCR is done?

When the SCR is on, the transistor is in the off state. To turn the SCR off, a positive pulse is applied to the base of Q, turning it on. The anode current is diverted to the transistor. When the anode current falls below the holding current, the SCR turns off.

Why is SCR always turned on by gate current?

SCRs are triggered only by currents going into the gate. ... When the gate-to-cathode current exceeds a certain threshold, the device turns ON and conducts current. The SCR will remain in the ON state even after gate current is removed so long as the current through the device exceeds the holding current.

When an SCR is turned on the voltage across it is about?

When conducting, the SCR acts like a closed switch. The voltage drop across the cathode and anode will be approximately 0.7–1.8 V, depending on the size of the SCR and how much current is flowing through it.

What is the turn off time of a thyristor?

So, the turn-off time of the thyristor is defined as the time being between the instants when anode current becomes 0 and the thyristor attains its forward blocking ability. This turn-off time corresponds to the duration within which all the excess carriers must be removed from the layers of the thyristor.

What is turn on time?

[′tərn‚ȯn ‚tīm] (electronics) The time that it takes a gate circuit to allow a current to reach its full value.

What is circuit turn off time?

Define circuit turn off time.

It is defined as the time during which a reverse voltage is applied across the thyristor during its commutation process.

What is turn on characteristics of SCR?

Switching characteristics of SCR is the time variation of voltage across its anode and cathode terminals and the current through it during its turn on and turn off process. This means, there will be two types of characteristics: One during turn on process and other during turn off process of SCR.

When the thyristor is turned on and conducting?

The thyristor is now turned fully “ON” (conducting) allowing full load circuit current to flow through the device in the forward direction and back to the battery supply. One of the main advantages of using a thyristor as a switch in a DC circuit is that it has a very high current gain.

What are the different turns on methods of an SCR explain briefly?

There are three modes of operation for an SCR depending upon the biasing given to it: Forward blocking mode (off state) Forward conduction mode (on state) Reverse blocking mode (off state)

When SCR is turned on the voltage across SCR is?

Therefore voltage across SCR is zero.

What is the most suitable method to turn on the SCR device among the following?

Gate triggering is the method in which positive gate current is flown in forward biased SCR to make it ON. Gate triggering is, in fact, the most reliable, simple, and efficient way to turn on SCR.

Why silicon is used in SCR?

The first reason for using silicon for thyistors is that silicon is the ideal choice because of its overall properties. It is able to handle the voltage and currents required for high power applications. Additionally it has good thermal properties.

What is triggering of SCR?

Triggering:-

The turning on Process of the SCR is known as Triggering. In other words, turning the SCR from Forward-Blocking state to Forward-Conduction state is known as Triggering.

What type of triggering is used in SCR?

Gate triggering is an efficient and most commonly used method to trigger the thyristor or SCR. As the thyristor is in forward biased, then an ample voltage on the gate terminal adds some electrons to the J2 junction.

How is thyristor turned on?

Thyristor is turned on by increasing the anode current flowing through it. The increase in anode current can be achieved by many ways. Voltage Thyristor Triggering:- Here the applied forward voltage is gradually increased beyond a pt. known as forward break over voltage VBO and gate is kept open.

Why it is needed to turn off the SCR?

When the anode current is reduced below the level of the holding current, the SCR turns off. ... The voltage reverses every half cycle in an ac circuit, so that an SCR in the line would be reverse biased every negative cycle and would turn off.

Why turn on losses of SCR are highest during rise time?

During rise-time, turn-on losses are the highest due to high anode voltage Va and large anode current IT occurring together in the thyristor.

Which type of pulse can be used to reduce the turn on time of an SCR?

Turn on time of an SCR can be reduced by using a rectangular pulse of high amplitude and narrow width.
