Lead and lag compensators are used quite extensively in control. A lead compensator can increase the stability or speed of reponse of a system; a lag compensator can reduce (but not eliminate) the steady-state error. ... Lead, lag, and lead/lag compensators are usually designed for a system in transfer function form.

Is lag lead and lead lag compensator same?

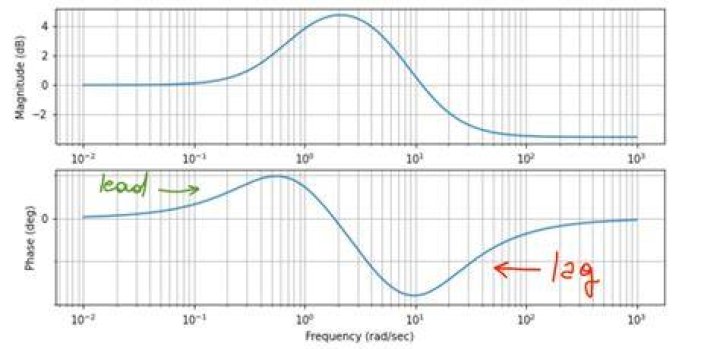

Lag-Lead compensator is an electrical network which produces phase lag at one frequency region and phase lead at other frequency region. It is a combination of both the lag and the lead compensators. ... This circuit looks like both the compensators are cascaded.

How does a lag compensator work?

Lag compensator applies its attenuation property to shift down the Bode magnitude plot at mid and high frequencies. In the meantime, Lag compensator can increase the low frequency gain and hence reduce steady state error. The phase is always negative, that is why it is called a lag compensator.

What is lead compensator?

The lead compensator increases the gain of the system at high frequencies (the amount of this gain is equal to a). This can increase the crossover frequency, which will help to decrease the rise time and settling time of the system (but may amplify high frequency noise).

What is lag lead?

Definition: A lag lead compensator is a type of electrical network that generates phase lag as well as phase lead in the output signal at different frequencies when a steady-state sinusoidal input is provided to it. It is also known as lag lead network.

What are Lead Lag Compensators? An Introduction.

What does a lead lag compensator do?

The lead compensator provides phase lead at high frequencies. This shifts the root locus to the left, which enhances the responsiveness and stability of the system. The lag compensator provides phase lag at low frequencies which reduces the steady state error.

What is lag compensation?

Lag compensation is the notion of the server using a player's latency to rewind time when processing a usercmd, in order to see what the player saw when the command was sent.

Why are lead compensators called lead?

Definition: A lead compensator is an electrical circuit that when provided with a sinusoidal input generates a sinusoidal signal as output with a phase lead in comparison to that of the applied sinusoidal signal. It is also known as lead network.

How does lead lag work?

In a traditional lead-lag system, the lead pump runs until the demand on the system is too great for the pump to meet, at which point the lag pump(s) initiates until demand is met. A lead-lag system can consist of any number of pumps, and they are often alternated to ensure even wear.

Which of the following represents a lead compensator?

Which of the following is/are represents the lead compensator? The transfer function of phase lead compensator = α(1 + TS)/(1 + αTS) Where α < 1 Therefore for lead compensator zero is nearer to origin.

What is the need of compensator?

Compensator is used in the control system to improve system dynamics, improve characteristics of the open loop system, and improve stability. The lead/lag compensator, phase compensator is used to improve the stability of the system.

Which of the following is an effect of lag compensation?

3. Which of the following is an effect of lag compensation? Explanation: Lag compensation is the integral compensation that introduces the lag in the response by slowing the response and reducing the steady state error value by decreasing bandwidth.

Why lead compensator is high pass filter?

Anyway, a lead compensator is essentially a high pass filter and will amplify noise. A lag compensator does reduce noise but it will slow response but improve settling accuracy (the error signal or difference between the demand and the set result will be amplified more with an integrator/low pass network).

How does lag work?

Network latency is how long it takes for data to travel between its source and destination. The lower the latency, the better. If you're gaming with high latency, you might tell your character to walk forward but they won't actually move for a few seconds. This is what causes lag.

Why does lag compensation exist?

According to developer Samy 'Ricklesaucer' Duc, lag compensation allows players on high ping to more fairly compete with those on low ping. ... “Lag compensation is the art of merging slightly different experiences into one shared reality.”

How do games compensate lag?

Lag compensation is a method of normalizing server-side the state of the world for each player as that player's user commands are executed. You can think of lag compensation as taking a step back in time, on the server, and looking at the state of the world at the exact instant that the user performed some action.

What is the difference between compensator and controller?

A compensator is a form of controller designed to alter certain characteristics (such as gain/phase) of the open-loop system. ... The difference between them is as follows: the compensator change the behavior of the open loop system while controller change the behavior of the close loop system.

What are the different types of compensators?

There are three types of compensators: lag, lead and lag-lead compensators. Adjusting a control system in order to improve its performance might lead to unexpected behaviour (e.g. poor stability or even instability by increasing the gain value).

What is lead pay policy?

Lead Pay-Level Policies: In these policies, the pay range will be above market rates for the occupations, and it will attract the most experienced, trained, and qualified personnel since they pay overall costs because of their experience. ... The wage range under these policies will be determined by the current market.

What is lag and lead in SQL?

Hi there, today we'll be talking about LEAD and LAG functions in SQL. ... The LEAD function is used to access data from SUBSEQUENT rows along with data from the current row. The LAG function is used to access data from PREVIOUS rows along with data from the current row.

Which compensator improve transient response?

➢ A lead compensator is one which adds a zero the system and is used to improve the transient response of the system. A lead compensator provides phase lead (positive phase) in the frequency response of system.

What is double lead compensator?

Generally speaking, a lead compensator will contribute about 70 degrees to the phase margin [2]. If more phase is required, a double lead compensator can be used [2]. This compensator simply has 2 poles in the same location and 2 zeros in the same location.
