The Mohr Theory of Failure, also known as the Coulomb-Mohr criterion or internal-friction theory, is based on the famous Mohr's Circle. Mohr's theory is often used in predicting the failure of brittle materials, and is applied to cases of 2D stress.

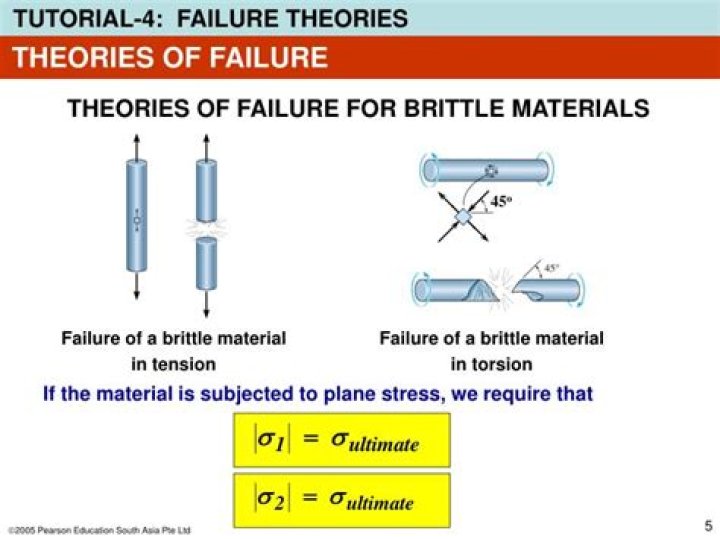

Which theory is suitable for brittle materials?

For example, the maximum principal stress/strain theory would be appropriate for brittle materials like cast iron or glass. On the other hand, the failure of ductile materials such as steel is best represented by the Tresca or Von-Mises criteria.

How does brittle material failure?

Brittle materials do not undergo significant plastic deformation. They thus fail by breaking of the bonds between atoms, which usually requires a tensile stress along the bond. Micromechanically, the breaking of the bonds is aided by presence of cracks which cause stress concentration.

Which theory of failure is used for ductile materials?

Total strain energy theory is suitable under hydrostatic stress condition. 3. This theory is best theory of failure for ductile material. It gives safe and economic design.

What is brittle failure?

Brittle failure refers to the breakage of a material due to a sudden fracture. When a brittle failure occurs, the material breaks suddenly instead of deforming or straining under load. ... Brittle materials absorb less energy before breaking or fracturing, despite the materials having a high strength.

Brittle Failure Theories - Facture Criteria in 10 Minutes (Updated Version Below!)

Which of the following theories is failure is most appropriate for a brittle material?

Maximum principal stress theory (Rankine theory) is suitable for brittle materials.

What is von Mises theory?

Von Mises stress is a value used to determine if a given material will yield or fracture. ... The von Mises yield criterion states that if the von Mises stress of a material under load is equal or greater than the yield limit of the same material under simple tension then the material will yield.

Which theory of failure is used for which type of material?

Maximum distortion energy theory is the best theory of failure for ductile materials because it gives safe and economical design. Maximum shear stress theory will give over safe design for ductile materials.

Which is the most conservative theory of failure?

Of the failure criteria, the Tresca is the most conservative for all materials, the von Mises the most representative for ductile materials, and the Rankine the best fit for brittle materials.

What is Guest's theory of failure?

The theory states that the failure of the mechanical component subjected to bi-axial or tri-axial stresses occur when the strain energy of distortion per unit volume at any point in the component becomes equal to the strain energy of distortion per unit volume in a standard tension test specimen when yielding starts.

What is elastic failure theory?

This theory states that the failure occurs when the maximum shear strain energy component for the complex state of stress system is equal to that at the yield point in the tensile test.

What is modified Mohr theory?

The modified Coulomb-Mohr theory is a three-parameter theory, but all three parameters in principle can be obtained from only two simple tests. It is shown that in the case of cast iron there is an extremely close relationship between cohesive resistance in shear and nominal ultimate strength in single or double shear.

What is Tresca and Von Mises?

The yielding response of materials to three-dimensional stress states is described by the well known yield criteria, the Tresca criterion, where yielding is taken to occur at a critical value of the largest principal stress difference, and the von Mises criterion which suggests that yielding occurs when a critical ...

What is von Mises failure criteria?

The von Mises criterion states that failure occurs when the energy of distortion reaches the same energy for yield/failure in uniaxial tension. Mathematically, this is expressed as, In the cases of plane stress, s₃ = 0. ... Also shown on the figure is the maximum shear stress criterion (dashed line).

Which is better Tresca or von Mises?

The Tresca theory is more conservative than the von Mises theory. It predicts a narrower elastic region. The Tresca criterion can be safer from the design point of view, but it could lead the engineer to take unnecessary measures to prevent an unlikely failure. ... Von Mises versus Tresca criteria in a 2D system.

Which theory of failure is used for Aluminium?

Which theory of failure will you use for aluminium components under steady loading? Aluminium is a ductile material so use maximum shear stress theory. Although Maximum distortion energy theory is the best suitable for aluminium.

What are different failure theories and which theory is used in what condition?

The principal theories of failure for a member subjected to biaxial stress are as follows: Maximum Principal/Normal Stress Theory (Rankine's Theory) Maximum Shear Stress Theory (Guest's Theory) Maximum Principal /Normal Strain Theory (Saint's Theory)

What is brittle Coulomb Mohr theory?

Mohr–Coulomb theory is a mathematical model (see yield surface) describing the response of brittle materials such as concrete, or rubble piles, to shear stress as well as normal stress. ... Generally the theory applies to materials for which the compressive strength far exceeds the tensile strength.

What is distortion energy theory?

The distortion energy theory says that failure occurs due to distortion of a part, not due to volumetric changes in the part (distortion causes shearing, but volumetric changes due not). As examples: Rocks below the earths surface.

What is the maximum shear stress theory?

“The maximum shear stress theory states that the failure or yielding of a ductile material will occur when the maximum shear stress of the material equals or exceeds the shear stress value at yield point in the uniaxial tensile test.”

What are the failure theories?

• Maximum principal stress theory (Rankine's theory)
• Maximum shear stress theory (Coulomb, Tresca and Guest's theory)
• Distortion energy theory (Huber von Mises and Hencky's theory)
• Maximum strain theory (St. Venant's theory)
• Maximum total strain energy theory (Haigh's theory)

What is strain energy theory?

4.3. Maximum strain energy theory This theory postulates that failure will occur when the strain energy per unit volume due to the applied stresses in a part equals the strain energy per unit volume at the yield point in uniaxial testing.

What is a ductile failure?

A ductile failure is one where there is substantial distortion or plastic deformation of the failed part. Normally, a component will fail in a ductile manner when it plastically deforms, and the steadily reducing cross section can no longer carry the applied service load.

What is guest or Tresca theory?

✓The maximum-shear-stress theory predicts that yielding begins whenever the maximum shear stress in any element equals or exceeds the maximum shear stress in a tension-test specimen of the same material when that specimen begins to yield. ✓The MSS theory is also referred to as the Tresca or Guest theory.
