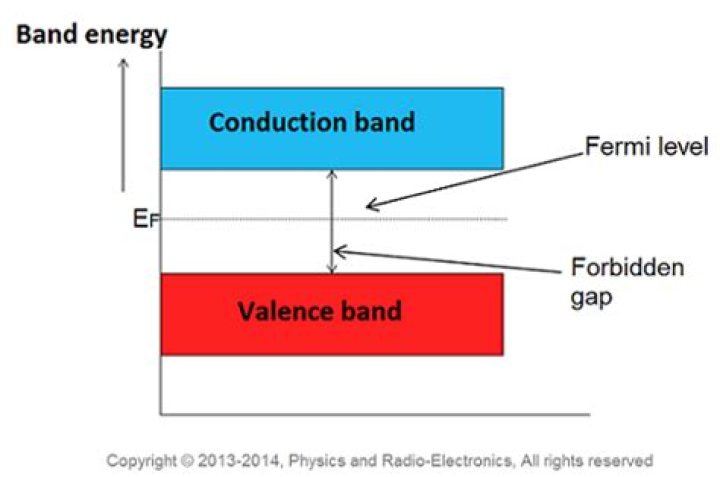

For an intrinsic semiconductor, the electron-carrier concentration is equal to the hole-carrier concentration. Therefore, the Fermi level in an intrinsic semiconductor lies in the middle of the forbidden gap.

Where is the Fermi level in an intrinsic semiconductor?

Position of the Fermi level lies in the middle of the conduction band and valence band because the number of holes and electrons are almost equal in numbers in intrinsic semiconductors .

What is the Fermi level in a semiconductor?

The Fermi Level is the energy level which is occupied by the electron orbital at temperature equals 0 K. The level of occupancy determines the conductivity of different materials.

Where is the Fermi level of intrinsic semiconductor at room temperature?

Thus the Fermi level for the intrinsic semiconductor lies in the middle of the forbidden band. At $0K$, the intrinsic semiconductor acts as a perfect insulator.

What is intrinsic energy level in semiconductor?

In intrinsic semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band. Hence, the probability of occupation of energy levels in conduction band and valence band are equal. Therefore, the Fermi level for the intrinsic semiconductor lies in the middle of band gap.

Electronic Devices: Fermi energy of an Intrinsic semiconductor

What is intrinsic Fermi level?

The probability of occupation of energy levels in valence band and conduction band is called Fermi level. In intrinsic or pure semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band. ...

Do the Fermi energy level changes in a semiconductor?

2. In an intrinsic semiconductor (with no doping at all), the Fermi level is lying exactly at the middle of the energy bandgap at T=0 Kelvin. ... If not then the Fermi level will shift away from midgap position with increasing temperature and will move towards the band with the smaller effective mass.

Where is the Fermi level?

Fermi level is a kind of measure of equilibrium electronic energy of a solid material. It is thought that Fermi level is located just below the CB bottom and above the VB top for n-type and p-type semiconducting materials (13), respectively.

What are the intrinsic semiconductors?

An intrinsic (pure) semiconductor, also called an undoped semiconductor or i-type semiconductor, is a pure semiconductor without any significant dopant species present. The number of charge carriers is therefore determined by the properties of the material itself instead of the amount of impurities.

When temperature increased in an intrinsic semiconductor material Fermi level?

As the temperature increases, free electrons and holes gets generated which results in shift of Fermi level accordingly. In intrinsic semiconductor, the no. of electrons in conduction band and no. of holes in valance band are equal.

What are extrinsic and intrinsic semiconductors?

Intrinsic semiconductors are composed of only one kind of material. Extrinsic semiconductors are made of intrinsic semiconductors that have had other substances added to them to alter their properties (they have been doped with another element).

Why Fermi level lies in an intrinsic semiconductor?

In intrinsic semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band. Hence, the probability of occupation of energy levels in conduction band and valence band are equal. Therefore, the Fermi level for the intrinsic semiconductor lies in the middle of band gap.

What is Fermi level in semiconductor Class 12?

The highest energy level in the conduction band filled up with electrons at absolute is called Fermi level and the energy corresponding to the Fermi level is called Fermi energy. In other words, it can also be defined as the probability by which electrons occupy energy levels in the valence band and conduction band.

What is ap type semiconductor?

A p-type semiconductor is an extrinsic type of semiconductor. When a trivalent impurity (like Boron, Aluminum etc.) is added to an intrinsic or pure semiconductor (silicon or germanium), it is said to be a p-type semiconductor. ... A p-type semiconductor has more holes than electrons.

What is n-type semiconductor material?

An n-type semiconductor is an intrinsic semiconductor doped with phosphorus (P), arsenic (As), or antimony (Sb) as an impurity. Silicon of Group IV has four valence electrons and phosphorus of Group V has five valence electrons.

What is intrinsic semiconductor Class 12?

A pure semiconductor, free from impurities is called intrinsic semiconductor. The electrical conductivity of pure semiconductor is called intrinsic conductivity.

What are intrinsic carriers?

Intrinsic carriers are the electrons and holes that participate in conduction. The concentration of these carriers is contingent upon the temperature and band gap of the material, thus affecting a material's conductivity.

How do you calculate intrinsic semiconductor?

Inside a semiconductor, electrons and holes are generated with thermal energy. The electron and hole concentration remain constant as long as the temperature remain constant. At temperature TK , in an intrinsic semiconductor n = p = n_i where n_i is called intrinsic concentration.

How is Fermi level calculated?

You can use our Fermi level calculator to quickly compute Fermi parameters with the following Fermi level equations: Fermi wave vector (Fermi wavenumber): kf = (3 * π² * n)^(¹/₃) Fermi energy: Ef = ħ² * kf² / (2 * m) Fermi velocity: vf = ħ * kf / m.

Is Fermi level constant?

It is important in determining the electrical and thermal properties of solids. The value of the Fermi level at absolute zero (−273.15 °C) is called the Fermi energy and is a constant for each solid. The Fermi level changes as the solid is warmed and as electrons are added to or withdrawn from the solid.

What does Fermi energy and Fermi level mean?

The Fermi energy is only defined at absolute zero, while the Fermi level is defined for any temperature. ... The Fermi energy is an energy difference (usually corresponding to a kinetic energy), whereas the Fermi level is a total energy level including kinetic energy and potential energy.

What is Fermi energy level and location of semiconductors?

Fermi energy level is defined highest energy level below which all energy levels are filled at ok. But in the case of a semiconductor there is no allowed energy level between the valence band and the Fermi energy level.

What is intrinsic material?

Intrinsic material: Intrinsic material is any semiconductor that is chemically pure, i.e. free of all impurities.

What is the intrinsic semiconductor and derive the mathematical part for finding the Fermi energy level?

At temperature T K, the electron concentration 'n' is equal to hole concentration 'p' in an intrinsic semiconductor i.e., n = p. Hence Fermi level lies in middle of Energy band gap.

What is Fermi level short answer?

What is Fermi Level? The highest energy level that an electron can occupy at the absolute zero temperature is known as the Fermi Level. The Fermi level lies between the valence band and conduction band because at absolute zero temperature the electrons are all in the lowest energy state.
