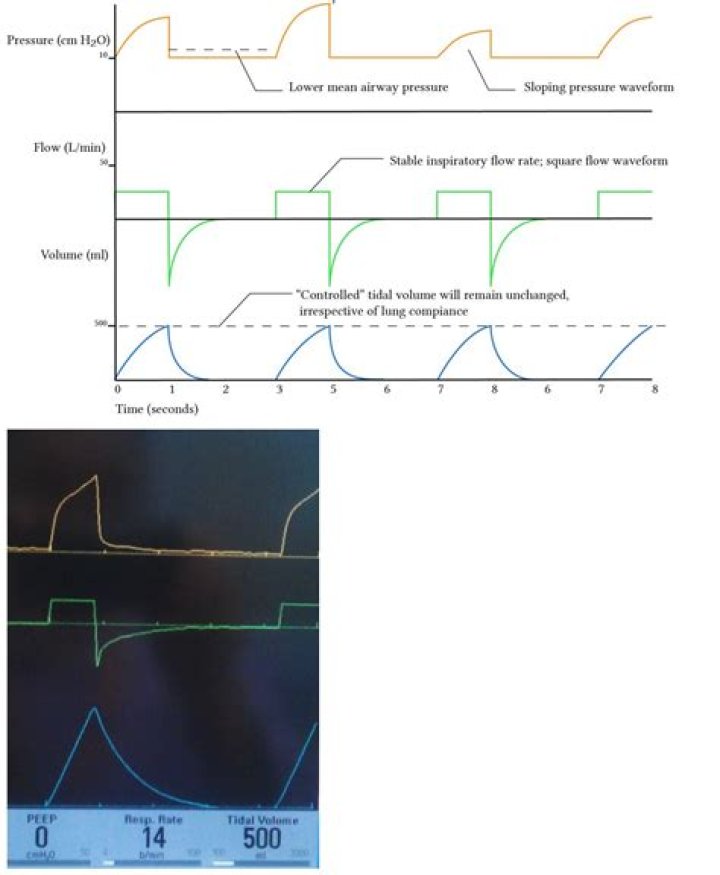

In a volume-controlled mode of ventilation, the inspiratory flow waveform is rectangular (as the machine delivers a steady flow of gas, waiting for the target volume to be achieved).

What is volume control mode in ventilation?

The SIMV mode is used for volume control ventilation with a fixed mandatory minute volume. The patient can breathe spontaneously between the mandatory mechanical breaths and thereby increase the minute volume. During spontaneous respiration, the mandatory mechanical breath is synchronized with the patient's breathing.

How does the pressure waveform differ between volume and pressure control ventilation?

Because pressure is not controlled or regulated in any way, the pressure waveform takes a parabolic sloping shape as the lungs distend during a breath. The pressure waveform is highly variable during volume control ventilation, changing shape depending on lung compliance and airway resistance.

What waveform shows a decrease in lung compliance?

Like the pressure waveform the expiratory flow curve too can illustrate resistance and compliance. waveform and decreased compliance is a concave expiratory waveform.

What is respiratory waveform?

Summary. Ventilator waveforms are graphical descriptions of how a breath is delivered to a patient. These include three scalars (flow versus time, volume versus time, and pressure versus time) and two loops (pressure-volume and flow-volume).

Principles of Mech Vent 12: Inspiratory Time in Pressure Control: How to use the Flow Waveform!

What is auto peeping?

By definition, auto-PEEP occurs when air flow does not return to zero at end-exhalation. It can occur in patients with COPD during spontaneous breathing. ^6,7. Dynamic lung hyperinflation caused by auto-PEEP worsens their inspiratory capacity because inhalation cannot be initiated from relaxation volume.

What is flow in mechanical ventilation?

Mechanical Ventilation

Flow rate, or peak inspiratory flow rate, is the maximum flow at which a set tidal volume breath is delivered by the ventilator. Most modern ventilators can deliver flow rates between 60 and 120 L/min. Flow rates should be titrated to meet the patient's inspiratory demands.

What is Autocycling on a ventilator?

Autocycling is defined as repetitive triggering of a mechanical breath because of reductions in proximal aitway pressure due to causes other than patient effort.

What does it mean when you see active exhalation in your patient?

Active exhalation caused an increase in airway pressure at end-exhalation, causing the ventilator to pressure-cycle rather than flow-cycle.

When do you use ventilation and volume support?

This is primarily used when the patient has no spontaneous breathing but will support the patient if they are able to trigger a breath. If the pressure is set at PC 16 above PEEP of 4, then the ventilator will deliver a top pressure (peak pressure) of 20 (PC level of 16 plus PEEP) with an end pressure of 4.

What does Simv stand for?

Introduction. Synchronized intermittent mandatory ventilation (SIMV) is a type of volume control mode of ventilation. With this mode, the ventilator will deliver a mandatory (set) number of breaths with a set volume while at the same time allowing spontaneous breaths.

What is volume control mode?

In volume-control mode, respiratory rate, tidal volume, and inspiratory flow rate (or inspiratory time) are fixed. This mode is used most often in heavily sedated or paralyzed patients.

What is controlled ventilation?

Control ventilation is a mode of ventilation in which the respirator delivers the preset volume or pressure regardless of the patient's own inspiratory efforts. It is indicated in patients with severe neurological alterations, deep sedation, shock or severe respiratory failure.

What is volume targeted ventilation?

In essence, volume targeted ventilation is a “pressure control” mode of ventilation where tidal volume is a dependent variable to changes in pressure. Depending on the ventilator design or mode of VTV, the tidal volume may be measured at the flow sensor either during inspiration or during expiration or both.

What causes breath stacking on vent?

Breath dyssynchrony stacking (BDS) refers to the unintended high tidal volumes that occur as a consequence of incomplete exhalation between consecutive inspiratory cycles delivered by the ventilator. This can commonly occur during volume-preset assist control modes during lung protective ventilation for ARDS.

What is Flow volume Loops?

The flow-volume loop is a plot of inspiratory and expiratory flow (on the Y-axis) against volume (on the X-axis) during the performance of maximally forced inspiratory and expiratory maneuvers. Changes in the contour of the loop can aid in the diagnosis and localization of airway obstruction [1].

What does a flow volume loop tell us?

) displays airflow (in L/second) as it relates to lung volume (in L) during maximal inspiration from complete exhalation (residual volume [RV]) and during maximum expiration from complete inhalation (TLC).

What does flow volume loop mean?

Overview. Flow-volume loops are produced by asking the patient to breath out then in as forcefully as possible, and may reveal a characteristic pattern suggestive of restrictive, obstructive or other pulmonary disease.

What is flow in respiration?

In mechanical ventilation, flow volume and pressure are the main variables which are susceptible to manipulation. They are all related and are(mostly) directly measured by the ventilator sensors. ... Flow is volume divided by time. Volume is flow multiplied by time.

What is peak flow measuring?

Peak flow is a simple measurement of how quickly you can blow air out of your lungs. It's often used to help diagnose and monitor asthma.

What is FiO2 and PEEP?

Initial Adult Ventilator Settings. You have to start somewhere ✓ Fraction of inspired oxygen (FiO2)—100% ✓ Positive End Expiratory Pressure (PEEP)–5 cmH20 ✓ Respiratory Rate—12 breaths per minute ✓ Tidal Volume 6-8 ml per weight in kilograms (ideal body weight). Most adults will require at least 500 ml.

What is PEEP and auto-PEEP?

Answer. Intrinsic positive end-expiratory pressure (PEEP) or auto-PEEP is a complication of mechanical ventilation that most frequently occurs in patients with COPD or asthma who require prolonged expiratory phase of respiration.
