During electron beam welding the vacuum is of the order of?
William Taylor Unlike the laser beam, however, the electron beam process utilises a vacuum chamber in which is generated a high-energy density beam of electrons of the order of 0.25-2.5 mm in diameter (Fig. 8.8).
Why vacuum is used in electron beam welding?
Electron beam welding is performed in a vacuum environment as the presence of gas can cause the beam to scatter. Due to it being a vacuum process and because of the high voltages used, this welding method is heavily automated and computer controlled.
What is electron beam welding process?
Electron beam (EB) welding is a fusion welding process whereby electrons are generated by an electron gun and accelerated to high speeds using electrical fields. ... The beam of electrons creates kinetic heat as it impacts with the workpieces, causing them to melt and bond together.
How do I produce a vacuum for electron beam?
A vacuum is produced by using a vacuum pump to remove air from a closed volume; the more air that is removed, the better or higher the vacuum, or the lower the pressure. The vacuum level is measured by vacuum gauges. Capture pumps.
Why vacuum is important in producing a good quality weld in EBW?
Many of the features of electron beam welding are only possible because of the vacuum. Precision, single-pass, and quality guarantee each require the removal of interfering agents such as oxygen.
Ebflow - Electron Beam Welding with Local Vacuum
15 related questions foundWhat is vacuum welding?
Vacuum cementing or vacuum welding is the natural process of solidifying small objects in a hard vacuum. The most notable example is dust on the surface of the Moon. ... For example, it is possible for a joint to be the result of both vacuum welding and galling (and/or fretting and/or impact).
What are the sequence of stages in welding inspection?
The typical types of inspection and testing for each sample for Welding Procedure Qualification are: Inspection and Testing for Fillet Welds (Tee Joints) - This involves visual inspection of the completed weld, followed by two macro etches, and one fillet weld break test.
Does electron beam welding produce ozone?
Hazardous UV-radiation and short-wavelength visible (blue) light is emitted by the high temperature plasma above the welding-keyhole. Ozone and NOX is produced due to UV-induced photodissociation of oxygen and high temperature gas-phase reactions.
Where is electron beam welding?
Electron beam welding can also be used to weld metals with high melting points (such as tungsten) as well as active metals that may oxidize during welding (such as titanium). Potential applications are ship's shell plates, bridges, storage tanks, aircraft parts, and electronic components.
What is an electron beam?
Listen to pronunciation. (ee-LEK-tron beem) A stream of electrons (small negatively charged particles found in atoms) that can be used for radiation therapy.
Which of the following welding techniques is conducted in vacuum environment?
Electron Beam Welding
It is performed in a vacuum without shielding gas.
Which of the following equipments are used for electron beam welding?

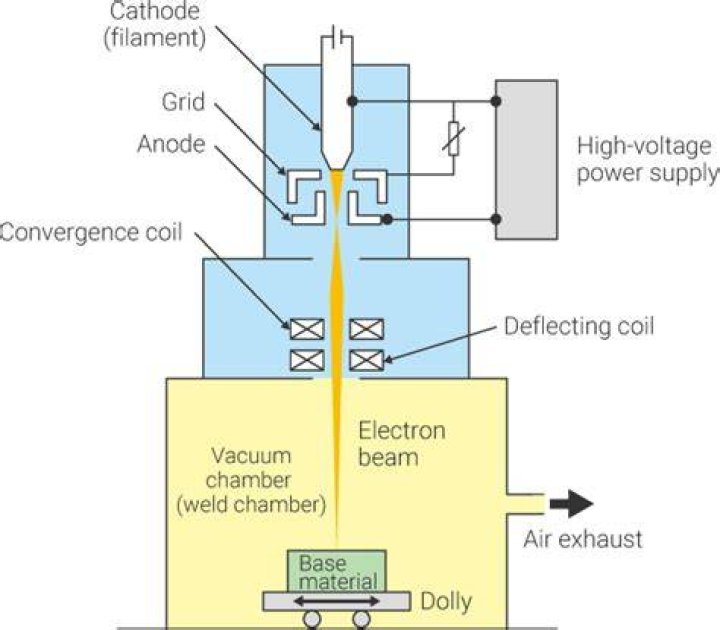

The equipments are: 1. The Cathode 2. Electron Accelerating System 3. Beam Focussing System 4.
How hot is electron beam welding?
Operation. As the electrons strike the workpiece, their energy is converted into heat, instantly vaporizing the metal under temperatures near 25,000 °C. The heat penetrates deeply, making it possible to weld much thicker workpieces than is possible with most other welding processes.
Which type of electrode is used in laser beam welding?
The first type uses one of several solid media, including synthetic ruby (chromium in aluminum oxide), neodymium in glass (Nd:glass), and the most common type, neodymium in yttrium aluminum garnet (Nd:YAG).
Can you weld metal in a vacuum?
For example, although stick welding may seem like an easy, flexible solution for making emergency repairs, any welding that must be done in a hard vacuum would make striking an arc difficult.
Where is electron beam generated controlled and accelerated?
The electron beam is generated in high vacuum and at high accelerating voltage of 150–220 kV. The beam is moved toward the workpiece by the system of vacuum passes, i.e. the system of nozzles gradually reducing vacuum to atmospheric pressure.
What are the two applications of electron beam welding?
Electron Beam Welding Applications
High power electron beam systems for welding and drilling are used in the Aerospace, Automotive, Defense, Semiconductor, Medical, Nuclear, Oil & Gas, Power Generation and a variety of other industries. Today's aircraft have components that were manufactured using EB Welding.
What are the applications of electron beams?
Radiation technologies based on electron beam accelerators today are used for applications such as crosslinking of wire& cables, producing heat-shrink materials, surface curing of materials, sterilization of medical products and for food irradiation [1].
How vacuum is created and describe the principle involved in EBM and its process parameters?
At first, a vacuum is created and maintained using the diffusion pump within the electron beam chamber. ... When the electrons pass through this anode section, the electrons attain a velocity which is nearly half the velocity of light. After passing the anode the electrons pass through the magnetic lens.
What is welding ozone?
The arc welding process generates hazardous gases, and ozone is one of them. Ozone is created by the welding arc and the resulting ultraviolet radiation from the oxygen in the surrounding air. Oxygen molecules are split into oxygen atoms. From there, the free atoms combine with another oxygen molecule to form ozone.
What is explosive welding process?
Explosive welding is a solid-state process in which controlled explosive detonations force two or more metals together at high pressures. ... The angle of collision causes the plasma to jet in front of the collision point, effectively scrub-cleaning both surfaces, and leaving clean metal behind.
What are the four steps in the qualification of a welding procedure?
It has some steps as below:- Code & standard apply for testing: In this case we use: ASME IX.
- Witness for Welder testing: Each performance qualification welder testing shall be done under full supervise and control by a third party. ...
- Train The Welder For The Process To Be Qualified: ...
- Testing procedure:
What are the steps in visual inspection?
Generally, here are 5 simple steps to effectively perform visual inspections:- Step #1 Clearly define defect criteria. ...
- Step #2 Standardize inspection performance. ...
- Step #3 Analyze visual defects. ...
- Step #4 Communicate improvement measures. ...
- Step #5 Use mobile-ready checklists. ...
- Explicitly define defect criteria.
Which of the following would be inspected during the weld?
Check that all parameters stated in the Welding Procedure Specification are being followed. These parameters include items such as wire feed speed, voltage, electrical stickout, welding technique, welding progression, travel and push angles, shielding gas, adequate preheat and interpass temperature (if required), etc.
