You can buy a PCIe 4.0 expansion card but have a motherboard with PCIe 3.0 slots, for example. Thankfully, PCIe 4.0 is backward compatible, so you can still use PCIe 4.0 expansion cards with PCIe 3.0 motherboards. You'll just be bottlenecked by the slower speeds of PCIe 3.0.

Can I use a PCIe 4.0 SSD in a 3.0 slot?

As previously mentioned, PCIe 4.0 is backward and forward compatible. So, you can insert a PCIe 4.0 GPU into a PCIe 3.0 slot, but you'll be bottlenecked by the bandwidth limitations of Gen 3. In other words, you won't be able to take full advantage of the increased speeds of that awesome PCIe 4.0 GPU.

Can you put a PCIe 4.0 card in a 2.0 slot?

Can PCIe 4.0 work with 2.0? Short answer is PCIe is both forwards and backwards compatible so it should. That means you could plug a PCIe 4.0 device in a PCIe 2.0 socket - or PCIe 2.0 device in PCIe 4.0 socket - and it will work at the highest version and bandwidth (lanes) that BOTH support.

Is PCI Express 4.0 worth it?

What Is PCIe 4.0 And Is It Worth It For Gaming? ... It offers double the bandwidth than that of its predecessor, PCIe 3.0. However, it only hit the market recently and it offers virtually no benefits when it comes to actual in-game performance right now.

Does PCIe 4.0 matter for CPU?

PCIe 4.0 lets your PC use the latest GPUs and SSDs to their full potential. PCIe 4.0 doubles the bandwidth of PCIe 3.0. Additional CPU PCIe lanes give both your GPU and SSD access to CPU lanes. Upgrading to a PCIe 4.0 SSD prepares your system for new gaming innovations like DirectStorage.

NVIDIA RTX 3080 PCIe 3.0 vs. PCIe 4.0 x16 Benchmarks (& Intel vs. AMD for 3080 Discussion)

Do I need PCIe 4 3070?

The answer is no -- you will be fine, senior vice president of content and technology at NVIDIA, Tony Tamasi, explains on Reddit: "System performance is impacted by many factors and the impact varies between applications".

What is the difference between PCIe gen3 and gen4?

The read data is 61% faster for the PCIe gen 4 versus the PCIe gen 3 and the write data is 46% faster for the PCIe gen 4. Finally, let us see how PCIe gen 3 and PCIe gen 4 perform for gaming. ... PCIe gen 4 was able to reach a bandwidth of 23.25GB/s whereas the PCIe gen 3 was only able to reach 14.31GB/s.

Is PCI Express 3.0 compatible with PCI Express x16?

Typically they will all be PCI Express, but for a graphics card you need a PCI Express x16 slot. There are three versions of this slot, but they're backwards compatible, so a modern PCI Express 3.0 graphics card will work in a motherboard with a PCI Express x16 2.0 slot. This motherboard has two PCI Express x16 slots.

Does a NVME Gen 3 work in a Gen 4 slot?

yes. Gen 4 nvme work in gen 3 slots, just not at their full speed.

Do I have PCIe 3 or 4?

Under the “Graphic Interface” tab, you'll see what type of PCIe connection you have, along with its link width. Look for 'x16' in 'Link Width' and 'PCI-Express 3.0' under 'Version'.

Is PCIe 5.0 backwards compatible?

The PCIe architecture will continue to stand as the defacto standard for high performance I/O for the foreseeable future.” ... As always, PCIe 5.0 will remain backward compatible with previous PCIe versions. It's not clear how the market will react to the quick appearance of PCIe 5.0 versus 4.0.

Is PCI Express 2.0 backwards compatible?

Are PCI-Express 2.0 graphics cards / motherboards compatible with PCI-Express 1.1 and 1.0? Yes, PCI Express 2.0 products are fully backwards compatible with existing PCI Express products and platforms.

Are PCIe backwards compatible?

Like PCIe 3.0, PCIe 4.0 is forward and backward compatible. However, if you connect a PCIe 3.0 card to a PCIe 4.0 slot, the card will perform to the PCIe 3.0 specs.

Is PCIe 3.0 x4 NVMe?

2 NVMe SSD is designed for a PCIe 3.0 interface and fits in a x4 lane, delivering up to 7.9 Gb/s transfer rate and up to 3.9 GB/s throughput.

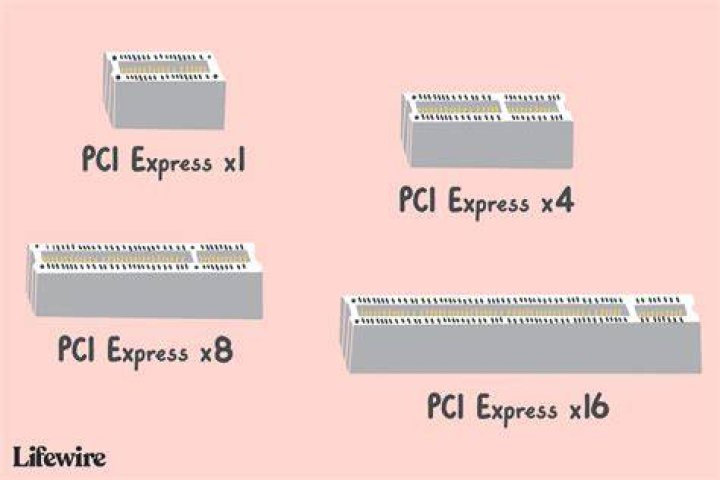

Can I put PCIe x4 in x16 slot?

PCIe boards can fit into slots designed for their lane configuration or higher. Plugging a x4 PCIe into a x16 slot (up-plugging) is acceptable. The opposite (down-plugging) is not physically supported.

Will NVMe work in PCIe?

The NVMe Interface Protocol

There are some NVMe drives that are designed to fit into a standard PCIe motherboard slot much like a graphics card, but most NVMe drives use the M. ... 2 slots for both types (SATA and NVMe M.

How fast is PCIe x2?

The PCIe interface is faster, as the SATA 3.0 spec is limited to ~600MB/s maximum speed, while PCIe Gen 2 x2 lanes is capable of up to 1000MB/s, Gen 2 x4 lanes is capable of up to 2000MB/s, and Gen 3 x4 lanes of up to 4000MB/s.

What means NVMe SSD?

NVMe (nonvolatile memory express) is a new storage access and transport protocol for flash and next-generation solid-state drives (SSDs) that delivers the highest throughput and fastest response times yet for all types of enterprise workloads.

What is the difference between PCI Express 3.0 and PCI Express 3.0 x16?

Each version of the specification fixes issues with the previous version, but the most significant difference is the increase in bandwidth of each version. So to answer your original question. If you buy a card that is PCIe 3.0 x16, it will properly fit in a motherboard that has a PCIe x16 slot of any version.

Are all PCI Express slots compatible?

Almost all modern computers use PCI Express 3.0 slots, which means a video card can go into any open slot. If your computer uses PCI Express 2.0 or another version of PCI Express, a newer card should be backward-compatible with it.

Can I put a PCIe 3.0 card in a 1.0 slot?

PCIE 3.0 cards are backwards compatible with the 1.0 and the 2.0 slots, but you won't be able to enjoy the full extent of your new PCIE card. It will be restricted to Gen 1 speed (2.5 Gt/sec) while Gen 3 allows 8 Gt/sec and a better encoding scheme which actually makes it about X4 times faster.

Is PCIe Gen 4 the same as NVMe?

For now, the biggest change consumers will see is even faster NVMe SSDs on offer. This comes as a result of PCIe 4.0 providing double the data rate of the PCIe 3.0 standard. Previous gen SSDs had max speeds of up to 3500MB/s, while the new generation claims speeds up to 5000MB/s.

What is PCIe gen3?

The most recently introduced specification for PCIe is commonly referred to as PCIe Gen 3. In addition to raising transfer rates to 8 GT/s, Gen 3 uses an upgraded encoding/decoding scheme compared to Gen 1 and Gen 2 to reduce overhead to < 2%.

How many PCIe 4.0 slots do I need?

We recommend a minimum of 8 PCIe Gen 4 lanes per physical x16 slot on the motherboard for a four-GPU build. You may use fewer GPUs and populate the empty PCIe slots with storage or network cards, depending on your requirements.

Does RTX 3080 support PCIe 3?

With the 3950X we found before that PCIe 3.0 x8 bandwidth limits the RTX 3080 to around 320 fps at 1080p and we see the same with the 10900K. As a result, we're looking at a massive 18% reduction in performance at 1080p, but little change to the 1440p and 4K data.
