Dining room, breakfast room, and pantry receptacles are not required to be GFCI-protected, but often are anyway. ... Only the receptacles on those two circuits that serve the kitchen countertop are required to be GFCI protected.

What rooms are GFCI outlets required?

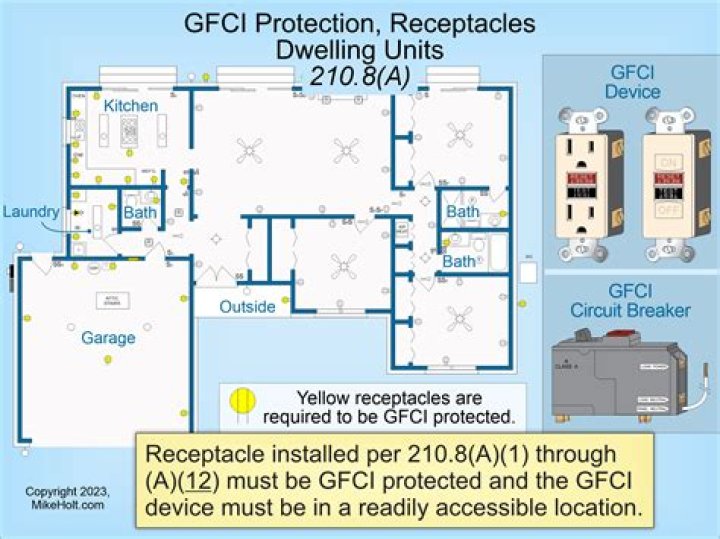

The NEC mandates GFCI protection in many areas of the home: bathrooms, garages, outdoor receptacles, crawl spaces, basements, kitchens and anything within six feet of a sink or water source. While that may seem like a lot, the entirety of a home is not covered.

Does dining room need arc fault breaker?

All 120-volt, single phase, 15- and 20-ampere branch circuits supplying outlets installed in dwelling unit family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, or similar rooms or areas shall be protected by a listed arc-fault circuit interrupter, ...

Does a dining room need to be on its own circuit?

Any wall section wider than 2 feet must have a receptacle. Dining rooms usually require a separate 20-amp circuit for one outlet used for a microwave, entertainment center, or window air conditioner.

Do you need GFCI outlets everywhere?

The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. ... In bedrooms, living rooms, and other areas where water fixtures are not found, regular outlets are fine—and they are still installed in today's new homes.

2020 NEC Kitchen Outlet Rules

When did GFCI become required in kitchen?

Countertop receptacles near the kitchen sink have been required to be GFCI-protected since 1987; just how close those receptacles have to be near the sink have changed over time.

Does a refrigerator need a GFCI?

Residential Kitchen

In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There's no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.

Does dining room have to be 20 amp?

Dining rooms require a 20a. 210.11(C) Dwelling Units. (1) Small-Appliance Branch Circuits. In addition to the number of branch circuits required by other parts of this section, two or more 20-ampere small-appliance branch circuits shall be provided for all receptacle outlets specified by 210.52(B).

How many circuits should be in a dining room?

NEC 210.52(B)(1) requires that receptacles installed in dining rooms must be served by at least one of the two or more required 20-ampere small-appliance branch circuits.

Can kitchen and dining room lights be on same circuit?

Kitchen Lighting Circuits

You're required to have at least a source of general lighting controlled by a wall switch, and the fixtures and switch can be supplied by any standard lighting circuit in the house. The same circuit can supply lighting in the dining room or a nearby living space, for example.

Does a refrigerator need to be on an arc fault breaker?

A modern refrigerator requires a dedicated 20-amp, 120/125-volt circuit. ... This circuit usually does not require GFCI protection unless the outlet is within 6 feet of a sink or located in a garage or basement, but it generally does require AFCI protection.

Do kitchen lights need arc fault protection?

Basically, if the light fixtures (or the switch controlling them) on your 15- or 20-amp circuit are located in any living space or “dwelling area,” you need to add an AFCI breaker.

Where are arc fault breakers not required?

AFCI protection is not required for outlets located outside or in garages or bathroom areas. (B) All 15A or 20A, 120V branch circuits supplying outlets in dormitory unit bedrooms, living rooms, hallways, closets, bathrooms, or similar areas.

How many GFCI outlets are required in a kitchen?

You only need one GFCI if it's installed as the first outlet in the circuit and wired properly. Every outlet in the kitchen was required to be protected by GFCI.

Are GFCI required in bedrooms?

GFCI is not required in bedrooms, but is useful.

Can I use 15 amp GFCI in kitchen?

Requirement: All 15 amp and 20 amp outlets, whether GFCI or not, must be tamper-resistant in the following kitchen-related places: small appliance circuit, countertop space, wall, and hallway space. Why: If you have not done electrical work for a few years, you may be surprised by this requirement.

Does kitchen lights need a dedicated circuit?

Any kitchen needs a lighting circuit to light up the cooking area. A 15-amp, 120/125-volt dedicated circuit is necessary to power canister lights, under-cabinet light, strip-lights and ceiling fixtures. It is important to be able to control the lighting, so you should consider adding a switch to each set of lights.

What needs dedicated circuit?

The National Electrical Code requires dedicated circuits for major electrical appliances such as refrigerators, stoves, washers, dryers, and electric water heaters because they ensure that appliances can operate safely without overloading the home's electrical system.

What size wire is required for a 15 amp circuit?

A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse. A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.

Can bedroom receptacles and lights be on the same circuit?

Is it okay to put bedroom lights and outlets on the same circuit? Yes, it definitely is! You can use the same circuit. For this, you can opt for a 15 amp or a 20 amp.

What appliances require GFCI?

Yes, the current National Electrical Code (NEC) requires ground fault circuit interrupter (GFCI) protection in wet areas including bathrooms, jetted tubs, kitchens, laundry rooms, garages, crawl spaces, exteriors, swimming pools, hot tubs and any areas that could come in contact with moisture.

Do I need GFCI in garage?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

When did laundry room require GFCI?

Receptacles within 6 feet of a laundry sink were first required to be GFCI-protected by the 2005 edition of the National Electrical Code (NEC). The code mandate was later expanded to include any receptacles in a laundry room in the 2014 NEC.

What kind of GFCI do I need for kitchen?

Kitchens and bathrooms should always have 20 amp gfci outlets. However, you must be using number 12 wire for 20 amp gfci or regular outlets If your wiring is number 14 guage then use a 15 amp. So, the wire size and breaker size together should be rated for 20 amps!
