With most conformal coating, that is a misconception. Very few, if any, of the conformal coating processes will give you a long term, hermetic seal on a board.

What is shelf life of PCB?

Surface finishing is a PCB plating option performed at the end of bare board fabrication that protects your boards while being stored until they are assembled. Depending upon the solder used and the specific soldering method, the shelf life for your boards can be as long as 10 years.

How long does it take for conformal coating to dry?

To cure the conformal coating

Full cure can be achieved in 20 minutes or less by using an infrared lamp or in convection oven at 65 °C [149 °F]. At room temperature, the coat dries to the touch in 7 minutes. And full cure takes about 48 hours.

What causes bubbles in conformal coating?

Bubbles occur when solvents or air become trapped and can't escape conformal coating material. The presence of bubbles can lead to long-term product reliability issues including bridging of conductive paths, corrosion of exposed areas, and cracked coating due to temperature changes, shock or vibration.

Can you remove conformal coating?

Conformal coatings should be removable with minimal to moderate effort and easily repairable off-line. ... In general, solvent-based, non-cross-linked coatings will be relatively easy to remove with solvents.

Conformal Coating Rework and Removal

Will acetone remove conformal coating?

Using acetone is good , but it should be mixed with some agents , in order to make the cleaning process better. I faced a difficulty when i tried to clean the pcb with conformal coating in one of my project works. Some types of plastic dissolve in acetone and some electronic components are partially made of plastic.

Can you solder through conformal coating?

It is possible to solder directly through conformal coatings and Parylene coating to remove it. The resultant finish is normally acceptable.

How do you prevent bubbles in coating?

Too close to the substrate and too high in the fluid pressure and you could generate bubbles. To avoid this, just try to improve your coating programs by increasing the distance between the substrate and the tip of the nozzle; or reduce the assisted pressure.

How do you inspect conformal coating?

Most conformal coatings now carry an optical brightener which, when exposed to ultraviolet (UV) light, fluoresces. This, in turn, allows easier inspection. However, some defects cannot be seen under UV and white (natural) light may also be needed.

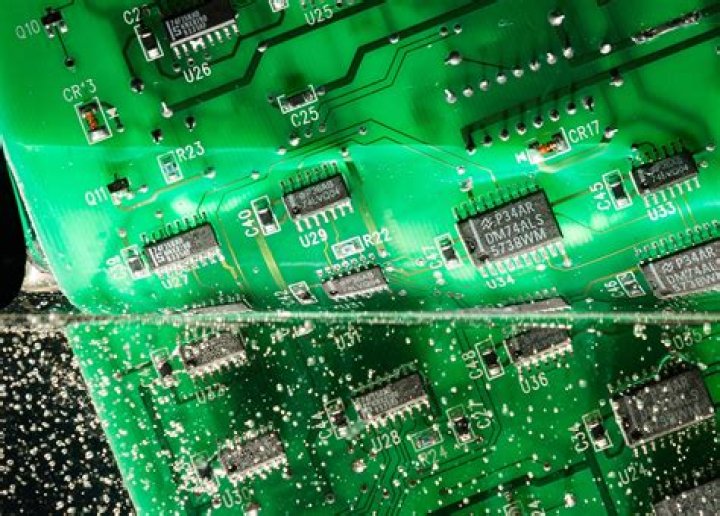

Is conformal coating waterproof?

While conformal coatings can offer a moisture resistant layer of protection, most cannot be considered waterproof. ... Conformal coating can, however, prevent current leakage or corrosion due to ambient moisture.

How do you test conformal coating?

Using a test probe system like the Positector 6000 can quickly give you conformal coating thickness measurements without damaging the circuit board. Test coupons are the ideal method for measuring the coating thickness, whether is it spraying or dipping, and can be kept as a physical record of the performance.

How do you store a PCB?

It's essential that printed circuit boards be stored in warm, dry rooms with low humidity levels and consistent temperatures. You may utilize moisture barrier bags for this purpose, which should, in turn, be kept in a dry storage cabinet or in boxes.

How many times can you rework a PCB?

The total number of heat and cooling cycles should be part of the decision to limit the number of rework cycles. In general, the typical number of rework attempts (multiply by two to get to the number of heat cycles) for Class-2 and Class-3 PCBs is three.

What is ENIG finish PCB?

Electroless nickel immersion gold (ENIG or ENi/IAu), also known as immersion gold (Au), chemical Ni/Au or soft gold, is a metal plating process used in the manufacture of printed circuit boards (PCBs), to avoid oxidation and improve the solderability of copper contacts and plated through-holes.

Is conformal coating necessary?

Using conformal coating is absolutely necessary for your PCBs if you want to protect them from contaminants and dangerous environments. For instance, excess moisture can speed up decomposition, reduce insulation resistance and result in conductor corrosion.

Why is conformal coating used?

Conformal coatings can be used in a wide range of environments to protect printed circuit boards from moisture, salt spray, chemicals and temperature extremes in order to prevent such things as corrosion, mould growth and electrical failures.

How do you remove urethane conformal coating?

Removal Procedure

Reapply solvent several times as most solvents evaporate rapidly. Rub the treated surface carefully with a brush or wood stick to dislodge the coating. A wedge-shaped applicator tip, knife, or heated blade may be effective in removing some coatings, particularly polyurethanes.

How do you get black resin out of a PCB?

Heat the epoxy residue with a soldering iron set to 500-600°F. The epoxy will soften and lose adhesion, and can then be easily scrapped off. Again, this removal method can be used on metal, glass or any surface that will not be adversely affected by high temperatures, not PCB material.

How do you remove green coating from PCB?

There are several safe and reliable ways to remove solder mask from the circuit board surface. Grinding and scraping, milling, micro blasting, and chemical stripping are the most common.

What dissolves conformal coating?

Dow Corning and other companies produce very popular conformal coatings based on silicones. They offer great protection while being light, durable and easy to rework. Almost without exception, silicone coatings may be removed by either the VOC-Free Flux Remover — UltraClean™ or the No-Clean Flux Remover – VeriClean™.

How do I uninstall PCB?

Sharp: cutting pliers

To remove a component from a PCB, the most practical method is to cut each leg with very thin and sharp cutting pliers. You can then remove the component and desolder the legs one after the other. Obviously, it works only if your component has legs. The component is destroyed in the process.

What causes a PCB to fail?

Environmental Factors: Exposure to heat, dust and moisture, accidental impact (drops and falls), and power overloads/surges can be causes of circuit board failure. However, the most damaging cause of premature circuit board failure is electrostatic discharge (ESD) at the assembly stage.

How do I know if my PCB is bad?

Unplug anything that doesn't require cutting. 3 Look for scratches, burn marks or misplaced solder. These are clear signs that the board is at least partially bad and needs professional work or replacement. Scratches can expose and damage the copper connections beneath the lamination.
