It includes a contactor as an essential component, while also providing power-cutoff, under-voltage, and overload protection.

Do contactors have built in overload protection?

Contactors are used to control power in a variety of applications. When applied in motor-control applications, contactors can only start and stop motors. ... However, some smaller-rated motors have overload protection built into the motor (such as a household garbage disposal).

Do contactors have overloads?

Contactors are used to control electrical loads and motors without providing overload protection.

What is special about a lighting contactor?

Lighting contactors are relay switches that control the flow of electricity through a circuit powering the lighting in a given area. ... A lighting contactor switch operates at a lower but safer load and controls the high voltage/current circuit using an electromagnet. Turn the power off for the entire system.

What is the difference between contactor and overload relay?

A contactor joins 2 poles together, without a common circuit between them, while a relay has a common contact that connects to a neutral position. Additionally, contactors are commonly rated for up to 1000V, while relays are usually rated to only 250V.

How to Connect up a Contactor Control so 2 way Switching can Control a Large Load

When would you use a contactor instead of a relay?

Relays are used to control contacts of an electrical circuit due to a change of parameters or conditions in the same circuit or any other associated circuit. Contactors, on the other hand, are used to interrupt or establish connections in an electrical circuit repeatedly under different conditions.

When would you use a contactor?

A contactor is a special type of relay used for switching an electrical circuit on or off. They are most commonly used with electric motors and lighting applications.

What is the difference between a lighting contactor and a general purpose contactor?

Definite purpose contactors are the 'Kias' of the contator world. Made cheap, sold cheap, made to be thrown away when they act up. Lighting contators are made to be repairable and are much more durable then DP contactors.

Can you use a motor contactor for lighting?

Contactors are useful in commercial and industrial applications, particularly for controlling large lighting loads and motors. One of their hallmarks is reliability.

Why use a contactor instead of a switch?

Why are Contactors Used? Contactors are used for high power applications. They allow a lower voltage and current to switch a much higher power circuit, so they are generally larger and more heavy-duty than control relays, enabling them to switch higher power loads on and off for many thousands of cycles (Figure 1).

What is the overload protection do on the contactor?

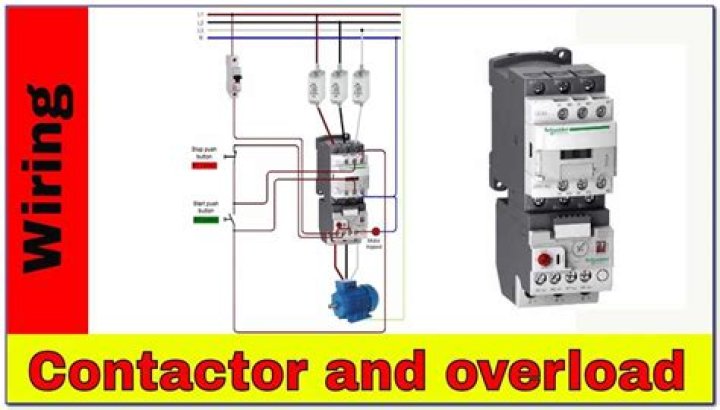

Overload relays protect the motor, motor branch circuit, and motor branch circuit components from excessive heat from the overload condition. Overload relays are part of the motor starter (assembly of contactor plus overload relay). They protect the motor by monitoring the current flowing in the circuit.

How does a contactor overload work?

When current is too high for too long, heaters open the relay contacts carrying current to the coil of the contactor. When the contacts open, the contactor coil de-energizes, which results in an interruption of the main power to the motor.

Do all motors need overload protection?

EVERY motor needs overload protection of some type. Some small motors are impedance protected by design. Some motors can be overload protected by breakers or fuses. Some motor have internal temp probes that shut down the motor starter.

What protects a motor in line with a motor contactor?

A magnetic motor starter is an electromagnetically operated device that starts and stops a connected motor load. Magnetic starters consist of an electrical contactor and an overload which provides protection in case of a sudden loss of power.

Is overload protection the same as surge protection?

No surge protector. ... There is a difference between surge protection and overload protection. Overload protection, which is what this device has, will disconnect the load (trip the breaker) if the total current exceeds the individual (or combined) outlet rating (in this case 15 amps per outlet).

What are overload protection devices?

An overcurrent protection device (OCPD) is a piece of equipment used in electrical systems that are at risk of experiencing overcurrent due to overloads, short circuits, or ground faults. ... The most common of these protection devices are fuses, circuit breakers, and overcurrent relays.

Why do electrical contactors fail?

Electrical failure – Three different electrical issues can cause contactor failure. The insulation between the coil wires can break down and cause a short. The coil can become grounded through another metal component when the wiring insulation deteriorates. The coil can also become stuck in an open position.

How long will a contactor last?

For example, a properly applied contactor will have a life span of 10,000 to 100,000 operations when run under power; which is significantly less than the mechanical (non-powered) life of the same device which can be in excess of 20 million operations.

When should you replace contactor contacts?

Your contactor can fail electrically in one of three ways. The coil can become shorted, grounded, or open. Your technician will use a meter to determine the resistance crossing your contactor. If the readings are outside of a very narrow range; your contactor should be replaced.

What are definite purpose contactors used for?

Definite purpose contactors provide high performance with flexibility and reliability and are designed to match numerous applications. They are ideal for resistive heating, for motors and compressors in air conditioning and refrigeration, as well as for food service equipment.

What are definite purpose contactors?

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are subjected to stringent quality assurance inspections and testing procedures.

What is the purpose of vacuum contactors in electrical panel?

They ensure safe switching of operational currents and overload currents in categories AC-1 to AC-4 – even during voltage dips.

What is the difference between contactor and breaker?

An electronic contactor is a simple switching device, whereas the circuit breaker is a protective system. The primary function of a contactor is controlling the power. A circuit breaker does the protecting. Contactor works under normal situations.

What is the difference between AC contactor and DC contactor?

An AC contactor has a high starting current with a maximum operating frequency of 600 times/hour. That of a DC contactor is about 1200 times/hour. A DC contactor uses a magnetic quenching arc, while an AC contactor uses a grid arc as an extinguishing device.

What is the difference between a control relay and a contactor?

Control Relay: It is a device through which contacts in one circuit are operated by an alteration in conditions in the same circuit or in associated circuits. Contactor: It is a device which is used for repeatedly establishing and interrupting an electric circuit under normal conditions.
