Do you have to ground a metal outlet box? The only requirement is that the application is grounded. Metal-sheathed wiring depends on bonding with the metal electrical box for grounding.

Do I have to ground metal junction box?

So while you may not have to connect the equipment grounding conductor to the box, the boxes do have to be grounded and bonded. Since you're using EMT, the boxes can be grounded and bonded via the conduit. If you were using nonmetallic conduit, you'd have to ground the boxes some how.

What happens if a metal box isn't grounded?

A grounded metal box is important to have as it sends the electricity through the ground to the breaker box that is also grounded. Surges in the electricity a box that is not grounded allows the electricity to go where it wants to. This is not a good thing and can cause electrocution or fire.

Is it OK to ground to metal box?

Since the box is grounded through the conduit (which is as good a ground conductor as any), you don't even have to terminate the ground wire to the box as long as the Z-wave switch has a metal yoke that contacts the box, although you can get a grounding screw (any 10-32 machine screw will do in a pinch), screw it into ...

How do you ground a metal junction box?

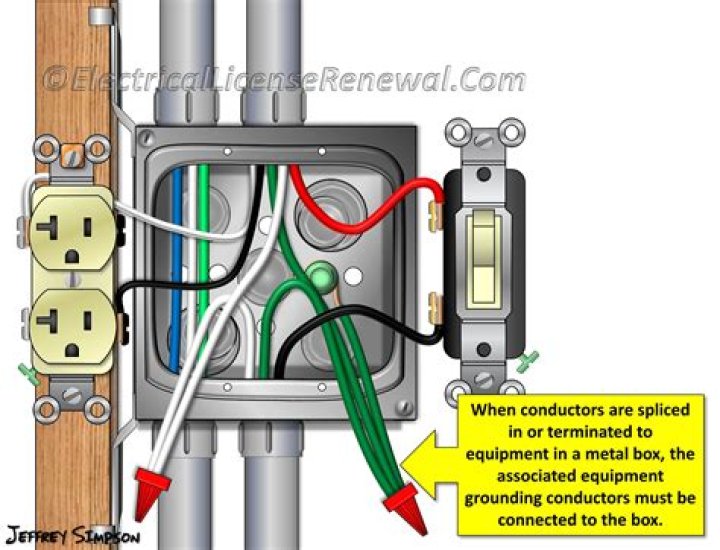

If a metal box is being used, best practice is to insert a green grounding screw into the threaded hole in the back of the box or enclosure. The equipment-grounding wires then connect to the screw, making the metal box part of the grounding system.

How To Ground And Bond A Metal Electrical Box

What if my junction box doesn't have a ground wire?

Nope, you have non grounded cables (two wire), so you don't have a ground. There is no need to cut the grounding wire in the fixture, just wrap it in a ball and place it in the box out of the way of any energized connections. You may want to tape the bundle.

What happens if your house is not grounded?

If there is no ground connection or a poor ground connection in the house, electricity could travel through your body to the ground. In this case you would end up becoming the ground connection – a condition that can lead to serious injury or also death.

How do you know if your box is grounded?

The simple way to find out is to use a volt meter and put the red lead in the hot side of the outlet or touch it to the black wire. The other lead touch it to the metal box. If you get a reading of around 110 to 120 volts it's grounded.

How do you know if a socket is earthed?

Insert the Negative wire in the Earthing of the Socket (Top single Hole). The Bulb must Glow with Full Brightness as before. If the Bulb does NOT Glow at all then there is NO Earthing / Grounding. If the Bulb Glows Dim, then it means the Earthing is Not Proper.

Do all grounds in a box need to be connected?

all of the grounds must be connected unless it is an isolated ground. 310.4 concerns parallel conductors for the same circuit.

How do you ground a Romex to a metal box?

To install this type of clamp, insert the threaded end into a knockout hole in the box, then thread on the locknut onto the threaded end from inside the box. Tighten the nut with pliers. Insert the cable through the clamp saddle and into the box, and tighten the screws on the saddle to secure the cable.

Where does the ground wire go in a junction box?

If the junction box is metal (not plastic) the ground wire is also connected to the metal junction box itself, usually by a special green screw that connects to a tapped threaded hole on the junction box back side, or by a grounding clip that secures the ground wire to the edge of the metal box.

Can any wire be used as a ground wire?

The main types of grounding wire most used includes bare copper and gauged copper wire. ... As a base, the wire contained within acts as a ground. Contractors for outdoor applications prefer this type of copper wire, as it is protected from the elements. Another commonly used type of grounding wires is gauged copper wire.

Does a subpanel need a ground rod?

Yes, any sub panel outside of the main building requires it's own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod - only the ground wire.

How do you ground a panel box?

1. Place the tapered tip of a ground rod at the desired location. ...
2. Drive into ground with the hammer. ...
3. When only 3 to 4 inches remain above the surface, attach the grounding wire with the clamp and tighten with the wrench.
4. Thread loose end of the wire through the wall next to the service panel.
5. Turn off the main breaker.

Do houses need grounding rods?

Household electrical systems are required by the National Electrical Code (NEC) to have a grounded system connected to earth ground via a ground rod. The Ground Rod is usually located very close to your main electrical service panel. ... You should not see the ground rod, as it must be buried to be effective.

Does a house need a ground wire?

Household electrical systems are required by the National Electrical Code to have a grounded system connected to earth ground via a ground rod. These rods are eight feet long, driven into the ground. ... There should also be a ground wire running to the cold water service.

What is improper grounding?

When an electrical system is not grounded properly, a hazard exists. The most common OSHA electrical violation is improper grounding of equipment and circuitry. ... When a circuit is not grounded properly, a hazard exists because unwanted voltage cannot be safely eliminated.

Is it OK to install a light fixture without a ground wire?

Yes, if you have a metal light fixture your fixture needs to be grounded. The ground wire exits your junction box, but it is not attached to your junction box.

What happens if light doesn't have a ground wire?

If by chance you are installing an electrical light fixture that has no ground wire into an electrical box with no ground wire as well, then simply connect together the hot wire from the electrical box to the hot (black or red) wire on the light fixture. ... Make sure to use wire nuts to attach the wires together.

Can I attach ground wire to mounting screw?

Can I attach ground wire to mounting screw? Hook the screw loop around the green ground screw on your mounting bracket or light fixture and tighten the screw to hold it in place. If your light fixture has its own green ground wire you will need to connect the two ground wires using a wire nut.

Do junction boxes need to be secured?

Securing Cables

Article 334.30 states that cables coming out of the junction boxes should be secured within 12 inches of the box in all boxes equipped with cable clamps. These cable clamps are not to be removed. 314.17(C) states that cables must be secured to the receptacle box.
