An electromagnet is a type of magnet in which the magnetic field is produced by an electric current. Electromagnets usually consist of wire wound into a coil. ... However, unlike a permanent magnet that needs no power, an electromagnet requires a continuous supply of current to maintain the magnetic field.

What does electromagnets need to work?

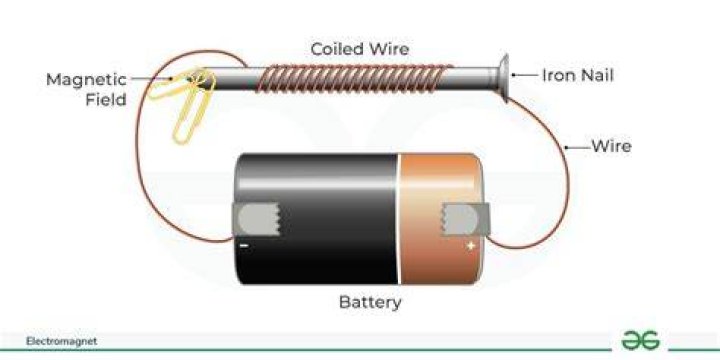

All electromagnets work on the principle that an electric current in a wire produces a magnetic field. ... Simply coil a length of wire round a piece of iron, such as a long iron nail, and pass an electric current through the wire. When the current flows a magnetic field is created and the iron becomes magnetised.

How are electromagnets powered?

When an electric current flows in a wire, it creates a magnetic field around the wire. This effect can be used to make an electromagnet . A simple electromagnet comprises a length of wire turned into a coil and connected to a battery or power supply.

Can magnets work without electricity?

They contain internal energy. It can be removed as the magnetism is lost. With the magnetic field there is an electric field vector circling the magnet, but eddy currents waste the electric potential. So the permanent magnet does no work.

Can you power a lightbulb with a magnet?

Unfortunately, however, the current created by moving a magnet over a single wire doesn't provide enough energy quickly enough to actu- ally light the bulb. To light a bulb, or to power anything else, you need to find a way to generate more power, which is the amount of energy produced in a certain time.

Turning Magnetism Into Electricity (Electrodynamics)

Can magnets create electricity?

Magnetic fields can be used to make electricity

Moving a magnet around a coil of wire, or moving a coil of wire around a magnet, pushes the electrons in the wire and creates an electrical current. Electricity generators essentially convert kinetic energy (the energy of motion) into electrical energy.

How much electricity does an electromagnet use?

That corresponds to about 10 kW. Note that the "force" of a magnet depends greatly on the geometry: if you can get really close to the poles over a large area, they work extremely well; but if you are picking up an oddly shaped object, it will be much harder (saturation effects will rapidly come into play).

What happens to the electromagnet if the electricity doesn't flow?

Moving charges create magnetic fields, so when the coils of wire in an electromagnet have an electric current passing through them, the coils behave like a magnet. When the electricity stops flowing, the coils don't act like a magnet anymore.

Why do we use electromagnets in electric showers?

This operates a solenoid (electromagnetic switch) that opens a valve on the water inlet pipe. With the valve open, pressurized cold water flows into the shower from your ordinary household supply. ... The large temperature dial you turn controls this valve, making the water hotter or colder as you require.

Why is it better to use an electromagnet in a scrapyard?

an electromagnet can be switched on and off • so it can be used to lift a car body • and release a car body • so it can easily be used to move car bodies from one place to another in the scrapyard • a permanent magnet cannot be switched off to release a car body • so would not be as useful in the scrapyard • the ...

What items are needed for an electromagnet?

To create your own electromagnet, you will need the following materials: Large iron nail (approximately 3 inches in length) Thin coated copper wire. Dry cell batteries.

Why do electromagnets get hot?

Unlike ordinary magnets, electromagnets heat up. ... Basically, electromagnets are coils of wire wrapped around a metal core, which in turn are connected to a battery. Although they are easy to make, they can have a problem with overheating if given more voltage than their wires can withstand.

How are electromagnets used in a circuit breaker?

Magnetic MCB

This uses an electromagnet. If the current exceeds the rating of the circuit-breaker the pulling force of the electro-magnet attracts an iron latch which breaks the electrical contacts.

How do electromagnets work in electric bells?

The electromagnet attracts A An electric bell contains a make and break' switch, which the iron armature. keeps the bell ringing. it breaks the circuit, so a current no longer flows. The coil and core are no longer magnetic and the springy metal strip returns to its original position, and the bell rings once.

Does electromagnet wire need to be insulated?

It is very important to insulate the wire otherwise it will short out the turns and the magnet will be ineffective. You get the most current from a battery when its fully charged. Also, its a good idea not to withdraw the current at too high a rate.

Why would an electromagnet not work?

The current may be taking a short cut through your metal pipe, for example. 3) Not enough turns of wire. Magnet wire used in motors is not very thick, so that many turns can be wrapped around in a tight space. To have fewer turns of thicker wire means you have to put more current in it to get the same field.

Can electromagnets repel metal?

The electromagnet is acting as an electromagnetic ring launcher. ... The current creates its own magnetic field that opposes the field of the electromagnet, and the result is that the electromagnet and the piece of metal are repelled.

What are the disadvantages of electromagnet?

Disadvantages: One of the disadvantages of electromagnets is that they heat up very fast and due to this heat generation lose of electrical energy is very much. ... As the magnetic field is due to the electric current in electromagnets, short-circuit can damage the electromagnets and they can harm the operator badly.

Can you use an electromagnet on AC current?

Because alternating current reverses direction 120 times per second, so do the north and south poles of an AC-powered magnet. ... You can make your own AC electromagnet in about an hour using easy-to-obtain electrical parts.

Is an electromagnet stronger with more current?

Strength of an Electromagnet

An electromagnet is stronger if there are more turns in the coil of wire or there is more current flowing through it. A bigger bar or one made of material that is easier to magnetize also increases an electromagnet's strength.

Which appliances does not use electromagnet?

Therefore the correct answer is D, electric-heaters don't require electromagnets for generating heat, rather the other mentioned appliances require electromagnets.

Can magnets spin a fan?

Whenever you place a large magnet next to it, the repelling force of the magnets would cause the fan to move in a constant motion and spin. The fan in motion would spin a motor and could generate small amounts of current.

Do magnets last forever?

How long does a permanent magnet last? A permanent magnet, if kept and used in optimum working conditions, will keep its magnetism for years and years. For example, it is estimated that a neodymium magnet loses approximately 5% of its magnetism every 100 years.

Can you use magnets to turn a turbine?

Magnets are important for electric generators because spinning a magnet near a coil of wire produces electricity. For example, a wind turbine is using wind to spin the magnet, a hydroelectric facility does the same, but with the power of moving water. A magnet is characterized by its two poles; North and South.

Do circuit breakers use an electromagnet to break the circuit?

Instead of a piece of wire, circuit breakers use an electromagnetic switch. When the circuit breaker is on, the current flows through two points of contact. When the current is at a normal level the adjacent electromagnet is not strong enough to separate the contact points.
