Whereas DC circuits have resistance, AC circuits often have resistance and another property, known as reactance. Impedance is the combination of resistance and reactance. ... Because it only affects changing current, reactance is specific to AC power and depends on the frequency of the current.

Is there reactance in a DC circuit?

When steady dc supply is connected, there is no change of flux and hence no induced EMF is developed and inductive reactance offered to steady DC supply is zero.

What is reactance in DC circuit?

In electrical circuits, reactance is the opposition presented to alternating current by inductance or capacitance. Greater reactance gives smaller current for the same applied voltage.

Why can't reactance occur in a DC circuit?

In short, there is no frequency in DC supply i.e. frequency in DC = 0. ... This is the reason why inductive reactance is zero in DC power supply.

What is the reactance of an capacitor in a DC circuit?

The capacitive reactance of a capacitor connected to DC is infinity. Note : XC∝1fand′f′ for DC=0. Hence XC=∝(infinity).

Inductive Reactance, Impedance, & Power Factor - AC Circuits - Physics

Can DC current pass through capacitor?

Current cannot pass through a dieletric material in a capacitor. In fact charge is induced at the second plate. In steady state no dc can flow. In transient terms a current flows but it doesn't pass through the capacitor itself, charge mearly builds up at the second plate.

What is reactance in a circuit?

reactance, in electricity, measure of the opposition that a circuit or a part of a circuit presents to electric current insofar as the current is varying or alternating. Steady electric currents flowing along conductors in one direction undergo opposition called electrical resistance, but no reactance.

What is the difference between resistance and reactance?

Resistance and reactance are the properties of an electrical circuit that opposes the current. The main difference between reactance and resistance is that resistance measures the opposition to a flow of current, whereas reactance measures the opposition to a change in current.

Is reactance the same as impedance?

Impedance is the combination of resistance and reactance. ... Reactance is a property that opposes a change in current and is found in both inductors and capacitors. Because it only affects changing current, reactance is specific to AC power and depends on the frequency of the current.

What is the reactance of an inducer in a DC circuit?

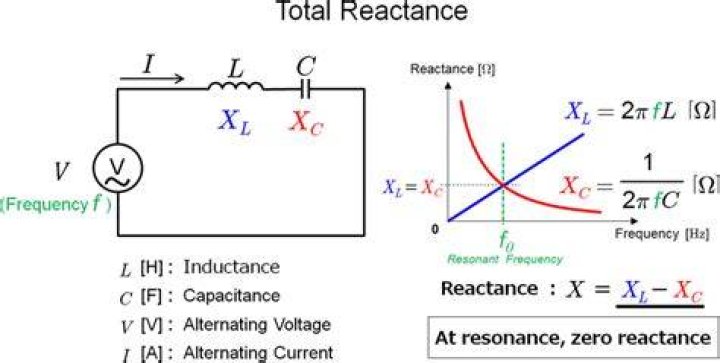

The slope shows that the “Inductive Reactance” of an inductor increases as the supply frequency across it increases. Then we can see that at DC an inductor has zero reactance (short-circuit), at high frequencies an inductor has infinite reactance (open-circuit).

What is inductive reactance of DC?

When an alternating or AC voltage is applied across an inductor the flow of current through it behaves very differently to that of an applied DC voltage. ... Inductive Reactance which is given the symbol X_L, is the property in an AC circuit which opposes the change in the current.

Why does the term inductive reactance not apply to DC circuits?

This is because, only induced voltage opposes the current flow in DC circuit when the current approaches to its maximum value and once it reaches to a steady state value, there will be no more inductive effect. In case of AC circuits, current is continuously changing, therefore inductive effect is present at all time.

Is there impedance in a DC circuit?

A simple DC circuit with a 100 Ohm resistor to curb the current. ... When you combine the resistance of your resistor, and the resistance and reactance of your capacitor and inductor together, then you get yourself a total impedance.

How do you find the reactance of a circuit?

The formula for calculating the inductive reactance of a coil is: inductive reactance, or X_L, is the product of 2 times p (pi), or 6.28, the frequency of the ac current, in hertz, and the inductance of the coil, in henries. X_L =2^p x f x L.

What is inductive and capacitive reactance?

If the reactance releases energy in the form of a magnetic field, it is called inductive reactance whereas if the reactance releases energy in the form of an electric field, it is called capacitive reactance. ... An ideal resistor will have zero reactance, whereas ideal inductors and capacitors will have zero resistance.

What is capacitive reactance?

The opposition to the flow of alternating current due to capacitance is called "capacitive reactance." It is measured in ohms just like resistance and inductive reactance. ... In capacitors, the current leads voltage by 90 degrees.

What are reactance and impedance in alternating current circuit?

Reactance is defined an electrical quantity due to which alternating current is opposed by inductor or capacitor or combination of both of them in a circuit. Impedance is the net opposing factor to alternating current. Reactance may also be called impedance offered either by inductor or capacitor.

What is self reactance?

Self inductance is defined as the induction of a voltage in a current-carrying wire when the current in the wire itself is changing. ... Inductive reactance is the reduction in current flow in a circuit due to induction.

What forms reactance in an AC circuit?

The inductive reactance of an inductor increases as the frequency across it increases therefore inductive reactance is proportional to frequency ( X_L α ƒ ) as the back emf generated in the inductor is equal to its inductance multiplied by the rate of change of current in the inductor.

Why is Z used for impedance?

Impedance (Z), in electrical devices, refers to the amount of opposition faced by direct or alternating current when it passes through a conductor component, circuit or system. Impedance is null when current and voltage are constant and thus its value is never zero or null in the case of alternating current.

What is reactance function?

Reactance, denoted X, is a form of opposition that electronic components exhibit to the passage of alternating current (alternating current) because of capacitance or inductance. ... Resistance and reactance combine to form impedance, which is defined in terms of two-dimensional quantities known as complex number.

Why do inductors block AC?

The equation of inductive reactance is, ... The opposition by the inductor due to the inductive reactance property is proportional to the supply frequency that means if supply frequency increases the opposition also be increased. For this reason, an inductor can totally block the very high-frequency AC.

What is the frequency of DC supply?

DC is the acronym for direct current. DC has a frequency of zero.

Does inductor allow DC current?

The inductor stores electrical energy in the form of magnetic energy. The inductor does not allow AC to flow through it, but does allow DC to flow through it.
