Simply put, a stud is a piece of lumber that is part of the framing of a wall. ... Ceiling joists are kind of like studs for your ceiling. These horizontal boards form the framing for your ceiling, and they are generally set in intervals of either 16 inches or 24 inches.

Do stud finders work on ceilings?

Stud finders measure density to find beams, so they don't work on popcorn ceilings. If your nail penetrates the ceiling and doesn't hit a solid surface, check again an inch away; if you don't find one there either, measure 24 inches in from the wall and check there instead.

Where are the studs in the ceiling?

The studs are usually located in 16 or 24 inches. You can independently calculate the location of the beams – it's considered an engineering way. Thanks to it, you can approximately determine the location of the studs. Then you can either knock the ceiling or poke a nail into it.

How far apart are studs in the ceiling?

Ceiling joists are usually installed either 16 or 24 inches on center, which means roughly 16 or 24 inches apart.

How much weight can ceilings hang?

A standard drywall ceiling can hold up to 20 pounds of direct weight. A good example is a small hanging plant or ceiling fan. But you will still need to use some reinforcement before hanging such items. If you use joists to support the extra weight, you can hang up to 30 pounds on the drywall ceiling.

HOW TO FIND A CEILING JOIST in a plywood ceiling

Is it safe to screw into ceiling?

If you want to hang something from a wall or ceiling but need some extra support that a standard screw or nail won't provide, you can use a screw hook. ... Its straight screw side that fits into a wall or ceiling with a hook on the end so objects, such as plants, holiday decorations or wreaths can hang from the ceiling.

How much weight can a ceiling stud support?

If you have another floor above your garage, the ceiling\floor structure can usually support up to 40 lbs/SqFt (including the weight of the floor above it). If you do not have another floor above, the ceiling trusses may only be able to hang a maximum of 10 lbs/SqFt.

How do you find a stud in a plaster ceiling?

Tie a string or dental floss around the magnet, and dangle it against the wall. Move it slowly across, and you will notice that the magnet will stick to the parts of the ceiling that have studs. It works because the magnet is attracted to the nails that hold the stud parts together.

Can you use your iPhone as a stud finder?

The iPhone beeps when its magnetometer, in the upper right of the phone, is near metal. Stud Find is an iPhone application that uses the device's built-in magnetometer to find metal studs, screws, nails and anything metallic in a wall.

How do you find studs in drywall?

1. Locate the nearest light switch or power outlet. ...
2. Look for dimples in the wall. ...
3. Use windows as a guide. ...
4. Tap the wall. ...
5. Drill a hole. ...
6. Fish around with a wire hanger. ...
7. Try a stud finder app. ...
8. Or just use a stud finder!

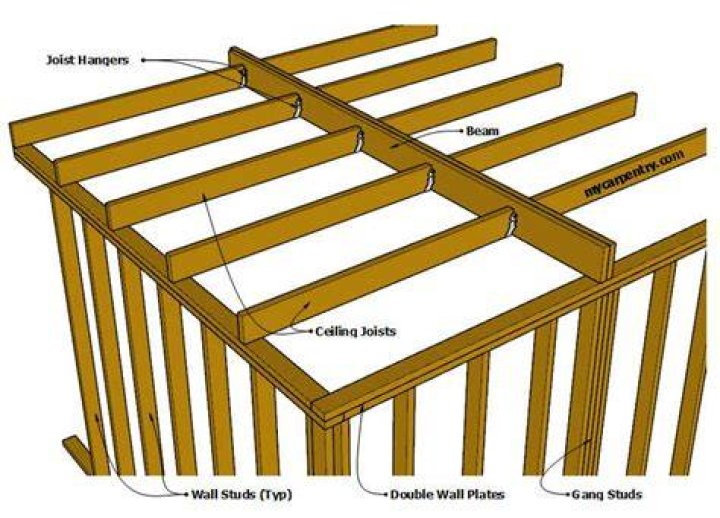

What is a ceiling joist?

Ceiling Joists are the horizontal members that provide a structure to fix the ceiling, and support and fix the diagonal rafters that define the roof shape and are attached at the top to a ridge beam. In many modern constructions the ceiling joists are substituted by the bottom cord of a factory manufactured truss.

Are ceiling joists load bearing?

Walls that run perpendicular (at a 90 degree angle) to the ceiling joists are load-bearing. Walls that run parallel (in the same direction) as the ceiling joints are non load-bearing. Ceiling joists are spliced over the wall.

Do plaster ceilings have studs?

It's pretty simple to find a stud in common drywall. ... Plaster can be too thick or dense to find a stud with common stud finders, which is probably why you're finding that these don't work. And if the lath is a metal wire type, instead of older wood lath, a stud finder will produce false readings.

Are there studs in plaster ceilings?

Plaster Ceilings

A stud finder is impractical on plaster, and tapping is useless. If you have access to the attic, measure from a sidewall to the nearest parallel joist and then transfer that measurement to the ceiling below. Confirm by making test holes with a long nail or a 1/8-inch drill bit.

Can I hang a chair from my ceiling?

If you want to attach a hanging chair to the ceiling, test the ceiling first. If it is safe, drill a hole in a desired place and use chemical anchor to attach an eye screw or wall plug to the ceiling. Attach the rest of the elements and test the construction - if it can hold two people, attach the hanging chair.

Can you hang a swing from the ceiling?

If you have a finished ceiling, you will need to remove some of the trim or paneling on the ceiling to determine the joist depth. To hang a swing from a single joist or beam, it needs to be a 2 x 8 joist or 4 x 4 beam.

How much weight can a plasterboard ceiling take?

How much weight can I hang from the ceiling? Generally, if you have another floor above your garage, the cover can support up to 40 pounds / square foot (including the weight of the floor above). If you don't have a floor above, the rafters can hang up to 10 PSI.

What do I need to know before drilling a ceiling?

Safety: Before any drilling, take the time to find out where your electrical wiring, gas or water lines are. DON'T drill around an electrical outlet, any light switches, etc. There are instruments available to detect metal pipe work, electrical cables, etc.

How do I stop my ceiling from drilling through wires?

“One common rule is to avoid drilling around light switches and sockets, as the electrical wires can go horizontally and vertically around these fixtures,” Williams explains. “You can also get an idea of where wires and pipes run by looking in the attic and basement to see where they go up or down through framing.”
