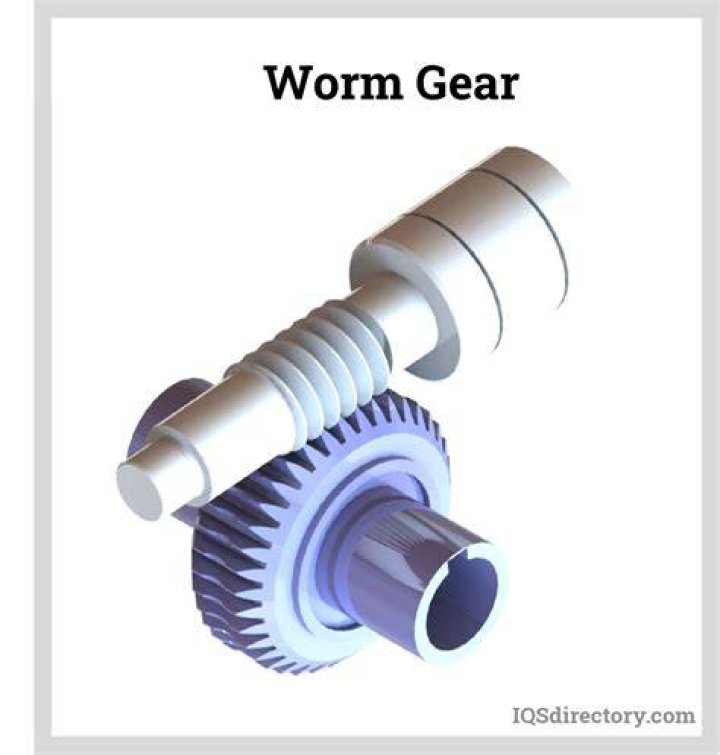

Worm gears are often used for their ability to provide large speed reduction and high torque multiplication. ... In theory, as long as the coefficient of friction between the gear and the worm is larger than the tangent of the worm's lead angle, the worm gear is considered self-locking and will not back drive.

Are worm gear bidirectional?

Bi-Directional Operation: “The ability of the input to drive the output both clockwise and counter-clockwise.” Like most gear types, Spiroid and Helicon are able to operate bi-directionally.

Do worm gears work in two directions?

Yep, they are designed to work in both directions of revolution of the motor. However, normally, a helical worm gear-unit cannot be back-driven (that's why they are used for conveyors, so that the wont slip in reverse in case of a power failure).

Is a worm and wheel mechanism reversible?

Worm and Wheel? reversible; a gear cannot drive a worm.

Are worm gears less efficient?

For example, worm-gear speed reducers with ratios up to 30:1, or those with 2-in. center distances or less, are often a better value than helical reducers. Such worm-gear units offer about 78% efficiency, compared to 62% in our example, because the worm gear and wheel are smaller and generate lower friction losses.

Worm Gear (Worm Drive): What is it, How it works, why huge velocity ratio and mechanical advantage?

Can worm wheel drive the worm?

Worm gears are often used for their ability to provide large speed reduction and high torque multiplication. But their self-locking properties can also be beneficial in many applications. ... In a worm gear assembly, the worm is typically the driving component. Self-locking means that the gear cannot drive the worm.

How do I make my worm drive reversible?

-To make a worm drive reversible, it is necessary to increase number of stars. -In a “typical” worm drive the angle of the teeth on the worm gear is close to perpendicular to the axis of rotation, which makes the worm non reversible.

What are the disadvantages of worm gears?

• Worm gear materials are expensive.
• Worm drives have high power losses.
• A disadvantage is the potential for considerable sliding action, leading to low efficiency.
• They produce a lot of heat.

What are the disadvantage of worms?

The main disadvantage of worm drives is their low performance offered by these gearbox stages, which can be close to 15% due to the high friction and associated axial stresses.

Is the direction of travel reversible?

The flow of power cannot be reversed since the follower can not move the cam in a complete circle. The direction of travel is not reversible in the mechanism to the right because of the shape of the cam, it does not allow the cam to be turned counterclockwise because the follower would be in the way.

Why are worm drive saws better?

Worm drive saws offer more durability and power because they have larger teeth which have a more loading capacity than regular circular saws. This feature enables the user to handle loads with high shock. It can handle tougher projects because it has great muscle to pitch cut.

How do worm gears transmit power?

With a worm gear, sliding motion is the only transfer of power. As the worm slides across the tooth of the wheel, it slowly rubs off the lubricant film, until there is no lubricant film left, and as a result, the worm rubs at the metal of the wheel in a boundary lubrication regime.

Why is it called a worm gear?

The reason why the worm gear is called a worm gear is derived from bionics. ... Worm gear mechanisms are commonly used to transmit motion and power between two staggered shafts. The worm gear and the worm are equivalent to the gear and the rack in the middle plane, and the worm is similar in shape to the screw.

Why worm wheel is made of bronze?

The phosphor bronze is widely used for worms drive in order to reduce wear of the worms which will be excessive with cast iron or steel. Worm gear sets are usually used to reduce speed and increase torque. ... The gear's strength would increase if bronzed.

How does a worm gear reducer work?

How Does a Worm Gear Reducer Work? A worm pinion is a screw used to input power to the assembly. When coupled with a standard spur gear fitted with slightly angled teeth in a perpendicular alignment, known as a worm gear or worm wheel, the pairing becomes a worm gear reducer.

What is a helical worm gear?

Helical worm gears are compact design geared motors using both advantages from helical and worm gears. The combination offers high ratios with increased efficiency, keeping the high load carrying capacity of a worm gear unit. The Series C range is a top quality design and uses high quality materials and components.

Is it worth having a worm farm?

Worm farms are an efficient way to reduce household waste and produce nutrient-rich fertiliser for the garden. In fact, worms can consume and compact waste so well that they can reduce the volume of organic matter by 95 per cent.

Can a worm farm be profitable?

Worm farming can be excellent home-based business. ... Making a worm farm profitable is no different that any other home business. Other than the aspects peculiar to worm farming, in order to make your worm farm successful you must follow the same basic requirements that make any business successful.

Can you use too much vermicompost?

Because of the various levels of nitrogen and other nutrients in the vermicompost, you should be careful when using it on indoor plants. Too much compost can burn houseplants. ... If you have more vermicompost than necessary for outdoor plants, you can use it on indoor plants but you don't want to go overboard.

Do worm gears increase torque?

Worm gears can be used to either greatly increase torque or greatly reduce speed. They are also the smoothest and quietest of the gear systems, as long as they are properly mounted and lubricated.

What are the advantages of a worm set reducer?

The worm gear reducer has many characteristics ideal for power transmission applications. The advantages can include: Self locking (ability to stop and hold load) and overhauling (ability to operate in reverse). Supports very high overhung and thrust loads.

Can bevel gears be used instead of worm gears?

A bevel gear is used to transmit power between two non-intersecting and mostly perpendicular shafts. ... Worm gears are used to transmit power between non-intersecting shafts (they can be perpendicular) where high gear reductions are required. Bevel Gears are used between INTERSECTING shafts (mostly perpendicular).

What is lead in worm gear?

Lead angle is the angle at which the gear teeth are aligned compared to the axis. This is also the point of contact between the drive and the gear. This is also known as helix angle.

How do you work out worm gear ratios?

Number of Threads in Worms

The speed transmission ratio of a worm and worm gear set is obtained by dividing the number of teeth of the worm gear by the number of threads of the worm.

Why are worm gears used in machines?

The primary benefit of worm gears is their ability to provide high reduction ratios and correspondingly high torque multiplication. They can also be used as speed reducers in low- to medium-speed applications.
