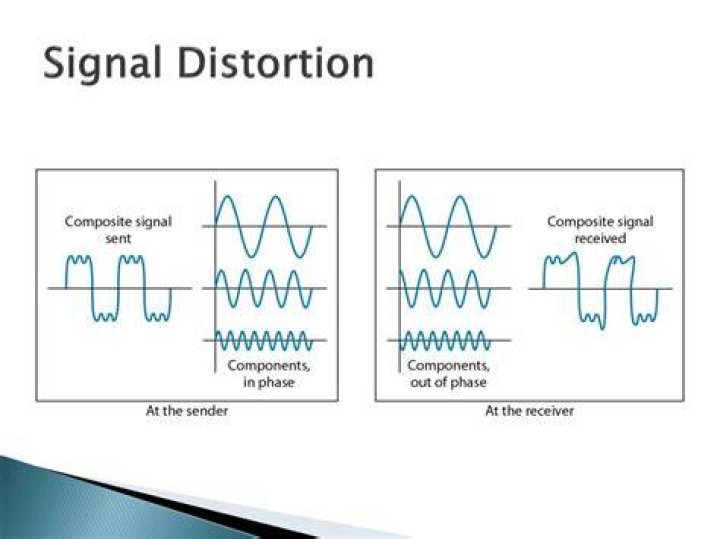

Noise can degrade or distort a signal on a network; what are some of its causes? Two common sources of noise are: ... * crosstalk-Occurs when a signal traveling on one wire or cable infringes on the signal traveling over an adjacent wire or cable.

What does the RG rating measure?

In a coaxial cabling, what does the RG rating measure? The materials used for shielding and conducting cores.

Which of the following problems could cause optic loss in fiber optic cable?

The most common causes of fiber optic malfunctions

Insufficient transmitting power. Excessive signal loss due to a cable span that's too long. Excessive signal loss due to a contaminated connector. Excessive signal loss due to faulty splices or connectors.

What data throughput can an SFP+ accommodate?

The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 16 Gbit/s. As we all know, SFP+ can support 8 Gbit/s Fibre Channel, 10 Gigabit Ethernet and 16G Fibre Channel. Therefore, there are three common SFP+: 8G SFP+, 10G SFP+ and 16G SFP+.

Is a serial cable with an RJ 45 connector is capable of being used through an RJ 45 Ethernet port?

A serial cable with an RJ-45 connector is capable of being used through an RJ-45 ethernet port. ... In order to achieve 1000Base-T CAT5e cable, 2 pairs of copper are needed.

Understanding Signal Integrity

Why should you terminate coaxial cable with connectors?

Why should you terminate coaxial cable with connectors that are rated for the exact cable type? A mismatched connector will have different impedance ratings, causing data errors. ... A wavelength mismatch occurs when transmissions are optimized for one type of cable but sent over a different type of cable.

When using RFID What is an Arpt?

When using RFID, what is an ARPT (Active Reader Passive Tag)? It is a tag that is activated by an active reader, and uses power from the reader's radio to power its transmission.

What is SFP+ port?

The SFP+ specification supports single-mode fiber interconnects to 40 km, but some vendors support up to 80 km distances. SFP+ modules are specified for Fibre Channel (FC) at up to 8 Gbps, but some vendors support up to 16 Gbps rates.

Can you use SFP+ in SFP port?

SFP and SFP+ modules look exactly the same. And as they have the same size, your SFP transceiver will fit seamlessly into an SFP+ switch port and vice versa. ... If you plug an SFP device into an SFP+ port, the speed will be locked at 1 Gbps.

What is the difference between SFP and RJ45?

When SFP port vs. RJ45 port, SFP port supports connectivity through varieties of fiber cables and the copper twisted pairs, and a wide range of link distances, but RJ45 port accepts only twisted pair cables and a shorter distance. Since every thing has both two sides, it is not always the best to choose SFP slot.

How can you tell if fiber optic cable is bad?

If a lot of red light is visible, the connector is bad and should be replaced. If you look from the other end and see light coming only out of the fiber, that indicates a good connector. If the whole ferrule glows, it's bad. OTDRs can determine the bad connector if the cable is long enough.

What happens when a fiber optic cable breaks?

If when installing the fiber optic infrastructure the cable gets bent or deformed, the core can break or worse, crack. The damage can cause signal distortion and an interminable list of faults. If this happens, you better save yourself the trouble and just cut the cord in pieces.

What is acceptable fiber loss?

For multimode fiber, the loss is about 3 dB per km for 850 nm sources, 1 dB per km for 1300 nm. ... For singlemode fiber, the loss is about 0.5 dB per km for 1310 nm sources, 0.4 dB per km for 1550 nm.

What is the maximum supported throughput of a Cat6 cable?

The maximum supported throughput of a Cat6 cable is 10Gbps.

What is the fastest Ethernet standard that can?

10 Gigabit Ethernet is the fastest and most recent of the Ethernet standards. IEEE 802.3ae defines a version of Ethernet with a nominal rate of 10Gbits/s that makes it 10 times faster than Gigabit Ethernet. Unlike other Ethernet systems, 10 Gigabit Ethernet is based entirely on the use of optical fiber connections.

Can a continuity tester be used on a live network segment?

A continuity tester should not be used on a live network segment. In order to achieve 1000Base-T over CAT5e cable, 2 pairs of copper are needed. ... A time domain reflectometer sends a signal and analyzes the return signal's change in amplitude to determine where cable imperfections may exist.

Will a 1Gb SFP work in a 10Gb port?

Will 1Gb SFP transceivers/modules work with 10Gb SFP+ ports? The answer is “Yes” in most cases. There are many vendors providing 10Gb switches that can take both a 10G SFP+ and a 1G SFP in the 10Gb SFP+ slot, but not at the same time for obvious reasons. This option is supported by dual speed operation.

How do I know if my SFP is single mode or multimode?

1. Black color coded bale clasp designates a Multi-mode SFP.
2. The color of the compatible fiber optic patch cord or pigtail is orange.

Can I use 10G SFP+ run at 1G?

Most SFP and SFP+ transceivers only run at its rated speed as they are manufactured, thus 10Gb SFP+ optics on 10Gb switch can not auto-negotiate down to 1Gb if the other end is gigabit switch. ... But when plugging a 1Gb SFP module in the 10G SFP+ port, the 10Gb switch will run at 1Gb.

What is DAC cable?

A Direct Attach Copper cable or a DAC cable is a twinax copper cable that connects directly the ports (or line cards) within active equipment, such as switches, routers, servers or data storage devices, in a data network.

What speed is SPF?

SFPs are mainly classified based on their speed capabilities. Some of the types are 100Base, 1000Base Gigabit, and 10Gig (SFP+). For most Fiber SFP modules, the transmission speed is 1 Gigabit, but the newer versions such as SPF+ have a higher speed of transmission, from 10 to 25 Gigabit.

What is LC fiber connector?

The LC connector is a small form factor (SFF) connector, which is designed to join LC fibers where a connection or disconnection is required. ... Hence, LC stands for Lucent Connector mostly. In addition, LC can also stand for Little Connector and Local Connector.

What is a UHF RFID?

The Ultra High Frequency (UHF) band is the frequency range from 300 MHz to 1 GHz. RFID systems that operate in this frequency band are called Ultra High Frequency (UHF) RFID Systems. ... These tags cannot easily be read while attached to objects containing water and animal tissues because water absorbs UHF waves.

How far can RFID be read?

Generally speaking RFID tag maximum read distances are as follows: 125 kHz. and 134.3 kHz. Low Frequency (LF) Passive RFID Tags -read distance of 30 cm (1 foot) or less - usually 10 cm (4 inches) unless you are using a very large tag which can have a read distance of up to 2 meters when attached to metal.

How does the 802.11 data frame indicate?

How does the 802.11 data frame indicate how a large packet should be fragmented? ... the duration field determines how long the station can transmit a packet, which then determines how it is divided.
