An ammeter is a device which measures the amount of current flowing in a circuit. It is a very low resistance(nearly zero) device. If it will be connected in parallel, it would draw most of the current and would get damaged. ... Hence, it is connected in parallel.

What happens when ammeters are connected in parallel?

When ammeter is connected in parallel to the circuit, net resistance of the circuit decreases. Hence more current is drawn from the battery, which damages the ammeter.

Is an ohmmeter connected in series or parallel?

In the simplest ohmmeters, the resistance to be measured may be connected to the instrument in parallel or in series. ... If in parallel (parallel ohmmeter), the instrument will draw more current as resistance increases. If in series (series ohmmeter), current will decrease as resistance rises.

Do you connect a voltmeter in parallel?

A voltmeter is used to measure potential energy difference, voltage (in volts or millivolts) across a circuit component. A voltmeter is always connected in parallel with the circuit component you are measuring.

Why voltmeter is connected in parallel?

In order for a voltmeter to measure a device's voltage, it must be connected in parallel to that device. This is necessary because objects in parallel experience the same potential difference. The potential differentiation of the circuit is measured by a voltmeter and it has high internal resistance.

Voltmeters and Ammeters | Circuits | Physics | Khan Academy

How must ammeters be connected in a circuit when used to measure current?

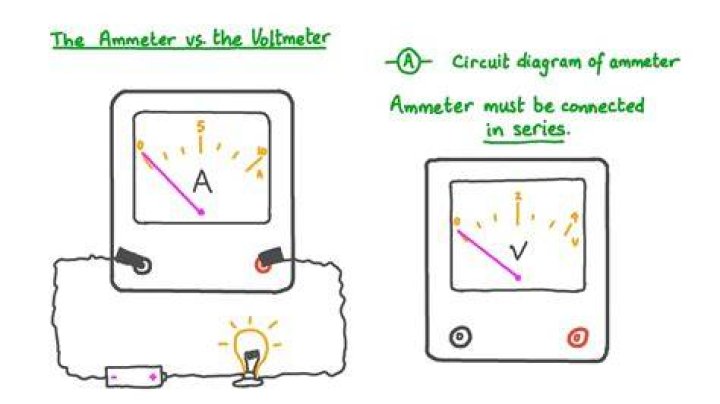

The ammeter is connected in series with the circuit, so that the current to be measured flows directly through the ammeter. ... Answer: To measure the total current, the ammeter must be placed at position 1, as all the current in the circuit must pass through this wire, and ammeters are always connected in series.

Can you connect an ohmmeter to a live circuit?

Never use an ohmmeter on a live circuit because an ohmmeter is its own power source. You will at best get an inaccurate reading, at worst damage the meter or yourself. Match the meter to the supply. If you are working with DC then use a DC meter; if working with AC then use an AC meter.

How do you connect an ohmmeter in a circuit?

Connect the negative probe of the ammeter to one end of a resistor. Finally connect the other end of the resistor to the negative terminal of the power supply. The ammeter is now connected so that the current that flows through the resistor will also flow through the ammeter, also know as an in-series connection.

What makes a series parallel circuit different from a parallel circuit?

In a series circuit, all components are connected end-to-end, forming a single path for current flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.

Why are ammeters not connected in parallel?

An ammeter is a device which measures the amount of current flowing in a circuit. It is a very low resistance(nearly zero) device. If it will be connected in parallel, it would draw most of the current and would get damaged.

Why are ammeters connected in series and voltmeters in parallel?

Ammeter is always connected in series because it has low internal resistance. The current to be measured in the circuit should not be practically affected by the Ammeter, hence the need to have a low internal resistance. Voltmeter is always connected in parallel because it has high internal resistance.

Is an ammeter connected in series or parallel in a circuit Why?

Ammeter aims at measuring the current in the circuit, hence it is connected in series so that the same current that is there in the circuit flows through it and gets measured. Ammeter has low resistance because we do not want to change the current that is flowing through the circuit.

What happens if an ideal ammeter is connected in parallel with the load?

An ammeter has a very low internal resistance. So, if it is connected in parallel with a load, it will short-out that load in resulting a high current flowing through the ammeter may severely damage the ammeter (and possible harm the user), although most are fitted with fuses to protect them.

What happens when an ammeter is set up in a parallel connection with the part of the circuit where you want to measure current?

As an Ammeter has very low internal resistance therefore ammeter connected in series so that all the current flowing in the circuit element must flow through the ammeter in order for it to measure the current. So if we connect it across i.e. in parallel to any circuit element, we will be shorting that element.

What might happen if we connect an ammeter in parallel to a high value resistor?

The problems with connecting an ammeter in parallel

The second is that the current drawn increases so you're changing the current you're trying to measure. A low resistance in parallel with a high resistance has an effective resistance of a little less than the low resistance.

How are ammeters placed in a circuit?

An ammeter is placed in series in the branch of the circuit being measured, so that its resistance adds to that branch. Normally, the ammeter's resistance is very small compared with the resistances of the devices in the circuit, and so the extra resistance is negligible.

How should ammeters and voltmeters be connected in a circuit?

A voltmeter is connected in parallel with a device to measure its voltage, while an ammeter is connected in series with a device to measure its current.

How are clamp on ammeters used?

Clamp-on ammeter or simply 'clamp meter' is an instrument that is used to measure the current flowing through a conductor. An AC Clamp meter basically consists of a current transformer in its jaws, bar CT usually. Utilizing the principle of current transformer, the reading will be displayed.

Why do you never apply an ohmmeter to a live network?

Ohmmeters should never be connected to an energized circuit (that is, a circuit with its own source of voltage). Any voltage applied to the test leads of an ohmmeter will invalidate its reading.

What is the danger of using an ohmmeter in an active circuit?

By measuring the value of current, it can display a calculated value of ohmic resistance. Because it has an internal voltage source, ohmmeters cannot ever be connected in live circuits as they could cause damage to equipment or injury to the operator.

In what instrument can find the ohmmeter?

An ohmmeter is an electrical instrument that measures electrical resistance (the opposition offered by a circuit or component to the flow of electric current). Multimeters also function as ohmmeters when in resistance-measuring mode.

How do you read an ammeter in a parallel circuit?

V=IR, here V is the potential difference across a resistance R through which a current I is flowing. The ammeter is connected in series with the circuit. So its reading will show the value of the current flowing in the circuit. Hence, the reading of the ammeter is equal to 1A.

What is the relationship between current and resistance in a circuit?

The relationship between current, voltage and resistance is expressed by Ohm's Law. This states that the current flowing in a circuit is directly proportional to the applied voltage and inversely proportional to the resistance of the circuit, provided the temperature remains constant.

How is an ammeter connected in a circuit to measure current flowing through it give circuit diagram?

An ammeter should be connected in series with the circuit for measuring current. In a circuit diagram ammeter is represented by a circle with the letter A. ... If we want to measure the current flowing through the resistor then we should connect the ammeter in series with the resistor as shown below.
