You can't derive an OR (or AND, NOR, NAND) gate from only XOR (or XNOR) gates, because they are not universal gates. Here is an argument against XOR and XNOR as universal gates. An XOR gate is a parity generator.

Is XOR a universal logic gate?

Note that neither the Exclusive-OR gate or the Exclusive-NOR gate can be classed as a universal logic gate as they can not be used on their own or together to produce any other Boolean function.

Which gates are called universal gates?

A universal gate is a gate which can implement any Boolean function without need to use any other gate type. The NAND and NOR gates are universal gates.

How many universal gates are there?

We have two universal gates – NAND gate and NOR gate. Note: The NAND gate is the abbreviation for Not AND and the NOR gate is the abbreviation for Not OR. In digital circuits we mostly use the NANA and the NOR gate to perform the operation of all the gates because these gates are economical and easier to fabricate.

Why are they called universal gates?

Logic gates are the circuits which can have one or more inputs but only one output. ... Any logic gate can be created using a mixture of basic gates. But using a single type of NAND or NOR gate a basic gate can be created. Hence, they are called Universal gates.

#59 EXOR and EXNOR gates implementation using Universal gates ( NAND & NOR ) || EC Academy

Why Universal gates are called universal?

∴ NAND and NOR gates are called universal gates because they can be combined to produce any of the other gates like OR, AND, and NOT gates.

Which Mcq is universal gate?

Among the following, the NAND gate is the universal gate.

Why is NAND and NOR universal gates?

The NAND & NOR gates are called universal gates because they perform all the logical operations of basis gates like AND, OR, NOT. Answer: ... NOR AS AND An AND gate gives a 1 output when both inputs are 1; a NOR gate gives a 1 output only when both inputs are 0.

What do you mean by universal logic gate?

A universal gate is a logic gate which can implement any Boolean function without the need to use any other type of logic gate. The NOR gate and NAND gate are universal gates. This means that you can create any logical Boolean expression using only NOR gates or only NAND gates.

What is not logic gate?

In digital logic, an inverter or NOT gate is a logic gate which implements logical negation. In mathematical logic it is equivalent to the logical negation operator (¬). The truth table is shown on the right.

HOW DO OR and XOR logic gates differ?

OR is true if at least one of the operands is true. XOR is true if exactly one of the operands is true.

WHY AND OR and NOT gates are called basic gates?

The AND, OR and NOT gate are considered as the basic gate since we form the basic circuit with the help of these gates only. Then furthermore, the more gates are formed with the help of these basics only such as XOR, NOR, NAND and even XNOR. Hence, they are considered as basic blocks.

What is NOR gate prove it as universal gate?

A NOR gate is a logic gate which gives a positive output only when both inputs are negative. Like NAND gates, NOR gates are so-called "universal gates" that can be combined to form any other kind of logic gate.

What is bubbled and gate?

A bubbled OR gate is the combination of two NOT gates and one OR gate. That is, the output of two NOT gates is made as input of OR gate. ... This expression represents NAND gate. Hence, a bubbled OR gate is equivalent to a NAND gate.

Which of these sets of logic gates are not designated as universal gates?

XOR, NOR, NAND. OR, NOT, AND. NOR, NAND, XNOR. Using any one of these 2 gates - NAND, NOR we can design all logic gates.

What is the expression of XOR gate?

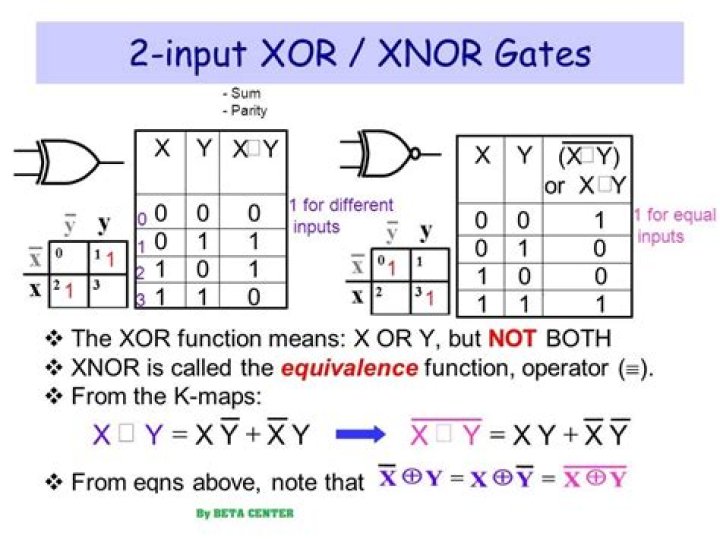

The exclusive OR gate works the same as an OR gate, but will output 1 only if one or the other (not both) inputs are 1. The XOR gate is indicated with the extra curved line to the left of the main shape. The Boolean expression is written as Q = A XOR B.

What does the NOR gate do?

The NOR gate is a digital logic gate that implements logical NOR - it behaves according to the truth table to the right. A HIGH output (1) results if both the inputs to the gate are LOW (0); if one or both input is HIGH (1), a LOW output (0) results. NOR is the result of the negation of the OR operator.

Is called as universal gate?

A universal gate is a gate that can implement any Boolean function without any other form of the gate being needed. The NAND and NOR gates are universal gates.

Is XNOR opposite of XOR?

XNOR stands for "eXclusive NOR". It is the opposite of the XOR operation. It is sometimes called XAND ("eXclusive AND").

Is XOR and nor the same?

NOR: NOR gate is formed by a combination of NOT and OR gates. NOR gate gives an output of 1 if both inputs are 0, otherwise 0. ... XOR: XOR gate or Exclusive-OR gate is a special type of logic gate which gives 0 as output if both of the inputs are either 0 or 1, otherwise it gives 1.

What is the practical application of XOR and XNOR gate?

XOR / XNOR gates are the most common components in digital electronics. These gates have wide applications in combinational and sequential circuits. In this chapter, the proposed XOR / XNOR gates were used to design the multi-bit programmable inverter / buffer circuits and expansion component.
