The plastic pipe manufacturers like this provision. If a water distribution system is designed for a maximum flow rate of 8 ft./sec., you will never need a water hammer arrestor for CPVC or PEX tubing. So, if you only install CPVC or PEX tubing, you don't have to read any further.

Is water hammer a problem with PEX?

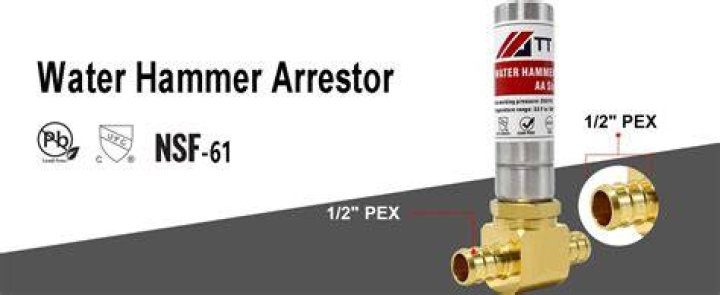

Water hammer arrestors can be installed on PEX plumbing. ... The phenomenon is potentially destructive to your pipes over time and should be managed using a device known as a water hammer arrestor.

Are water hammer arrestors required?

The general rule is that water hammer arrestors are required on all quick closing valves. ... If these hoses are reasonably flexible, chances are they will absorb the potential water hammer before it returns to the piping system.

Where should a water hammer arrestor be placed?

Exactly where to place the hammer arrestor will depend on the actual piping arrangement. The best places are either close to the pump, isolation or check valve that is originating the hammer, or at more distant points where the pipe changes direction, for example at the top of a pump riser.

Can you install a water hammer arrestor horizontally?

Water hammer arrestors can be installed vertically, horizontally, or at any angle in between. The most important thing when installing an arrestor is to place it as close to the valve as possible.

Water Hammer And Water Hammer Arrestors

When should a water hammer arrestor be installed?

Install water hammer arrestors to prevent clanking pipes

When a valve closes quickly and stops the flow, that momentum shakes and pounds pipes.

Do PEX pipes hammer?

PEX pipe and can be crimped or clamped. Water hammer occurs when the flow of water is abruptly stopped by a fast-closing valve, if there is no air to absorb the shock the pressure will rattle and shake your pipes and your fixtures and appliances can be damaged by the pressure spike.

Is there a whole house water hammer arrestor?

They are usually installed at each fixture above the valve so that there is the least amount of shock on the line; however, a whole house water arrestor can work too as long as it can absorb excess water pressure.

How do I stop water pipes from hammering?

1. Is air pockets the problem? Another issue that can cause a similar banging sound is actually air pockets in your pipes. ...
2. Close valves half-way. ...
3. Replace intake connections. ...
4. Install water hammer arresters. ...
5. Secure the pipe. ...
6. Install pressure limiting valve. ...
7. Install different taps. ...
8. Call the plumber.

Does PEX make noise?

Having spent a lot of time in two residents that use PEX, it is not a silent solution. Yes it has fewer fitting connections and therefore there is less turbulence as water flows through it, however it is still loud.

How do you make a water hammer arrestor?

1. Step 1: Find the Noisy Faucet. ...
2. Step 2: Turn Off the Water. ...
3. Step 3: Locate the Hot Water Line. ...
4. Step 4: Drain Water and Blot Dry. ...
5. Step 5: Sand Ends of Pipe. ...
6. Step 6: Insert the Copper Tee. ...
7. Step 7: Place a Fire Extinguisher Nearby. ...
8. Step 8: Heat the Fluxed Areas.

Why do pipes knock when hot water is on?

If your pipes are knocking when hot water is turned on...

…you likely have pipes that are expanding and grinding against walls or joists. All kinds of pipe material expands in hot temperatures. ... And as those pipes swell, they can rub and bump against surrounding metal, causing the banging/knocking noises you hear.

Can water hammer damage pipes?

Water hammer is a serious problem that will cause erosion and damage to the pipes, valves, fittings and can cause pipe bursts. Modern plumbing systems are designed with chambers of air to ease the damage caused by water hammers.

What happens if a water hammer arrestor doesn't work?

The best solution to your problem is to get a pressure reducing valve and set it for about 20 lbs less than your existing pressure. If you still get hammer, turn down the pressure even further, until you stop getting the hammer. The best brand of pressure reducing valves, in my opinion is Watts.

What is a hammer arrestor for?

Water hammer arrestors are used to absorb the shock when water flowing in a piping system suddenly stops due to fast closing shutoff valves, dishwashers, and clothes washers. This action protects against annoying and potentially damaging effects of water hammer.

Can a hammer arrestor be installed upside down?

Installation and maintenance

For washing machines, screw it onto the male fitting — right side up, upside down or sideways. For dishwashers and other appliances, use compression fittings. Arrestors should always be installed as close as possible to the noise-making fixture.

Can a hammer arrestor be installed sideways?

They can be horizontal. However, you can also mount them on the washer and keep them vertical is you want.

Can you put a hammer arrestor upside down?

Yes, they have a piston that is sealed, so they can mount them upside down.

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

Why do I hear tapping in my walls?

Tapping in walls could be attributed to the presence of pests such as mice, rats, termites, and wasps, to mention a few. ... Expansion and contraction of pipes could cause tapping or clicking sounds that may be heard through the walls. Heating ducts may also emit tapping sounds as the heating system turns on.

How do I stop the expansion noise in my pipe?

You can lower your hot water temperature to reduce the expansion of the metal. In extreme circumstances you can have a professional reach inaccessible areas, such as behind a drywall, to install insulation and cancel out the noise.

Does PEX expand and contract?

PEX pipe expands and contracts at a rate of 1.1 in. per 100 ft. per 10° F Delta-T. Utilizing pipe supports with PEX for suspended-piping applications in conjunction with fixed anchor points can reduce this expansion and contraction rate to a more than acceptable level.
