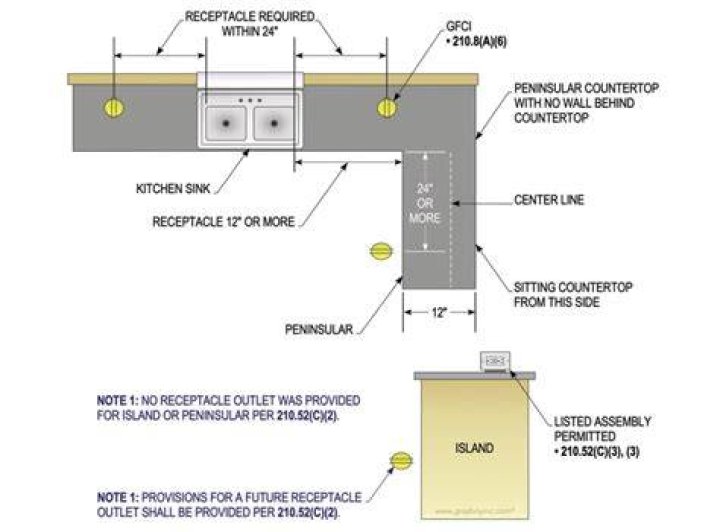

The main reason you need an outlet on a fixed kitchen island is that it's required by the NEC (National Electrical Code). ... If your island is uninterrupted and is larger than 12 inches by 24 inches, you'll need one outlet.

Is it code to have an outlet on a kitchen island?

In the 2017 National Electrical Code (NEC), only one receptacle outlet is required to be installed for each uninterrupted, basic island countertop space that has a long dimension of 24 inches or greater, and a short dimension of 12 inches or greater. That's it, a minimum of one receptacle outlet.

How many outlets do you need in a kitchen island?

An island countertop measuring 12 ft x 4 ft would require four receptacle outlets. Remember, up to 45 square feet of countertop requires three receptacle outlets, but a countertop area greater than 45 square feet up to 63 square feet requires a fourth receptacle outlet.

Where should an outlet be placed in a kitchen island?

Another outlet option is the power strip The power strip can be installed on the top rail of the side panel of the island, sitting right below the countertop. This option works nicely if a design has been incorporated into the side of the island.

Where do outlets go in an island?

1. pop-up receptacles in the countertops,
2. outlets recessed in filler strips beside the cabinet doors, and.
3. a power strip affixed to the top rail of the side panel, just below the countertop's lip.

Island Outlets Part 2

Does island outlet require GFCI?

All kitchen small appliance circuits needs to be GFCI protected. Island outlets should be part of the 2 (or more) required small appliance circuits. ... That will protect all of the downstream circuits.

What is code for outlets in kitchens?

In kitchens, electrical outlets should be placed no farther than 48 inches apart, so that no point on the countertop is more than 24 inches away from a receptacle. Any countertop 12 inches wide or more should have an outlet on the wall behind the countertop.

What type of receptacles are required in the kitchen?

Kitchens must have at least two 20-amp outlets. These outlets are used to power high voltage appliances such as toasters, blenders, and microwave ovens.

How close can an outlet be to a kitchen sink?

Kitchen Outlets

This applies even if there isn't a nearby sink, such as on a bar or island. Additionally, no point on the wall should be farther than 24 inches from an outlet in either direction (meaning 4 feet total between outlets), so you must have an outlet within 2 feet of the kitchen sink.

Do kitchen outlets need to be on their own circuit?

The National Electrical Code (NEC) requires that kitchens have at least two separate 20-amp, 120-volt circuits for counter-top outlets, which must also be no more than 4 feet apart.

Do you need an outlet on every wall?

The US National Electrical Code, Section 210.52, states that there should be an electrical outlet in every kitchen, bedroom, living room, family room, and any other room that has dedicated living space. ... The US NEC also advises on type.

Can you put an outlet in a countertop?

Pop up outlets are an alternative solution, and can be concealed in the counter where they are less noticeable. You can also put them in the bottom of your cabinets, they are hidden when not in use, but pop down when needed. Consider pop up outlets for ALL of your electrical needs.

Do all kitchen counter outlets need to be GFCI?

In kitchens, all outlets that serve countertop surfaces should be equipped with GFCI outlet protection. That would include any outlets on walls, behind wet areas (sinks, etc.) that have features such as countertop breakfast bars (open counter surfaces above sinks used to sit at on the opposite side).

How many outlets do you need on a kitchen countertop?

Requirement: Provide at least two 20-amp, 120-volt circuits to supply power to GFCI (Ground Fault Circuit Interrupter) receptacles for countertop and eating areas. Why: The 20 amps are required (vs. 15 amp) for the higher power requirements found in kitchens. Think toaster ovens, blenders, and mixers.

How do you hide an outlet in a backsplash?

Low and Horizontal Outlet Strips

If you have countertop space without an upper-cabinet above it, consider placing outlets a little lower than normal, and horizontally, along the very start of your backsplash tile. This placement, combined with well-matched cover plates, will also help your outlets to disappear.

How far above a counter should an outlet be?

On countertop outlets, it is standard to install outlet boxes so the tops are between 15 and 20 inches from the countertop surface. Make sure all outlet boxes are set at exactly the same height, since these outlets will be highly visible.

How many circuits do you need in a kitchen?

A kitchen requires at least 7 electrical circuits to properly handle the basic elements. Something to keep in mind is if an appliance has a motor, it should have its own electrical circuit.

How many outlets can you have in a kitchen circuit?

Your kitchen must have at least two outlets, each on separate circuits, so that if one breaker trips, you still have power.

Where are electrical receptacles not permitted to be located?

For example, a sun-room in a dwelling has no wall space because of floor-to-ceiling windows. Receptacles are not usually installed in the ceiling because receptacles located more than 5.5 feet (1.7 meters) above the floor cannot be counted as required receptacles.

Does a dishwasher require its own circuit?

The dishwasher circuit should be a dedicated 120/125-volt, 15-amp circuit. ... You may also elect to feed the dishwasher with a 20-amp circuit using 12/2 NM wire with a ground.

What appliances need their own breaker?

Appliances drawing enough power to require their own circuit include ovens, stoves, dryers, washing machines, dishwashers and hot tubs. Some garbage disposals, space heaters, microwaves, refrigerators, freezers and garbage disposals also might require enough wattage to demand separate circuits.

Does a refrigerator require a separate circuit?

2 Answers. In the US, under the NEC, a residential kitchen fridge is not required to be on a dedicated circuit. It is certainly a good idea and best practice, but not a requirement. A fridge can be on one of the minimum two required "small appliance branch circuits".

Can you have an outlet under a sink?

Typically there are outlets (receptacles) under the sink. The dishwasher as well as the disposal is plugged into an outlet with an appliance cord. The vast majority of the homes I inspect have one or more outlets deliberately installed there just for those reasons.

Where are GFCI outlets required?

The NEC mandates GFCI protection in many areas of the home: bathrooms, garages, outdoor receptacles, crawl spaces, basements, kitchens and anything within six feet of a sink or water source. While that may seem like a lot, the entirety of a home is not covered.
