Impedance is the combination of resistance and reactance. ... Reactance is a property that opposes a change in current and is found in both inductors and capacitors. Because it only affects changing current, reactance is specific to AC power and depends on the frequency of the current.

How do you calculate impedance from reactance?

How do you calculate reactance from impedance? Ans- To calculate impedance, calculate resistance and reactance of a circuit, label resistance as R and reactance as X. Square both R and X, and sum the two products together. Take the square root of the sum of the squares of R and X to get impedance.

Is inductive reactance the same as impedance?

The opposition to current flowing through a coil in an AC circuit is determined by the AC resistance, more commonly known as Impedance (Z), of the circuit. ... In other words, an inductors electrical resistance when used in an AC circuit is called Inductive Reactance.

What's the difference between impedance and resistance?

Resistance is a concept used for DC (direct currents) whereas impedance is the AC (alternating current) equivalent. Resistance is due to electrons in a conductor colliding with the ionic lattice of the conductor meaning that electrical energy is converted into heat.

What is difference between reactance and resistance?

Resistance and reactance are the properties of an electrical circuit that opposes the current. The main difference between reactance and resistance is that resistance measures the opposition to a flow of current, whereas reactance measures the opposition to a change in current.

Impedance, Resistance and Reactance - difference

What exactly is impedance?

electrical impedance, measure of the total opposition that a circuit or a part of a circuit presents to electric current. Impedance includes both resistance and reactance (qq. v.). ... Impedance reduces to resistance in circuits carrying steady direct current.

What is capacitive impedance?

Impedance of a capacitive element; it is measured in ohms and is a measure of how much the capacitive element “controls or impedes” the level of current through the network.

What is capacitive reactance?

The opposition to the flow of alternating current due to capacitance is called "capacitive reactance." It is measured in ohms just like resistance and inductive reactance. ... In capacitors, the current leads voltage by 90 degrees.

What is the difference between capacitive reactance and inductive reactance?

If the reactance releases energy in the form of a magnetic field, it is called inductive reactance whereas if the reactance releases energy in the form of an electric field, it is called capacitive reactance. ... An ideal resistor will have zero reactance, whereas ideal inductors and capacitors will have zero resistance.

What is the relation between reactance resistance and impedance *?

Reactances resist currents without dissipating power, unlike resistors. Inductive reactance increases with frequency and inductance. Capacitive reactance decreases with frequency and capacitance. Impedance represents total opposition provided by reactance and resistance.

What is meant by reactance and impedance of an AC circuit?

Reactance is defined an electrical quantity due to which alternating current is opposed by inductor or capacitor or combination of both of them in a circuit. Impedance is the net opposing factor to alternating current. Reactance may also be called impedance offered either by inductor or capacitor.

How do you measure impedance?

Impedance is calculated by dividing the voltage in such a circuit by its current. In short, impedance can be described as limiting the flow of current in an AC circuit. Impedance is indicated by the symbol “Z” and measured in ohms (Ω), the same unit used to measure DC resistance.

What is capacitive reactance measured in?

Capacitive reactance is measured in ohms of reactance like resistance, and depends on the frequency of the applied voltage and the value of the capacitor.

How do you calculate reactance with impedance and resistance?

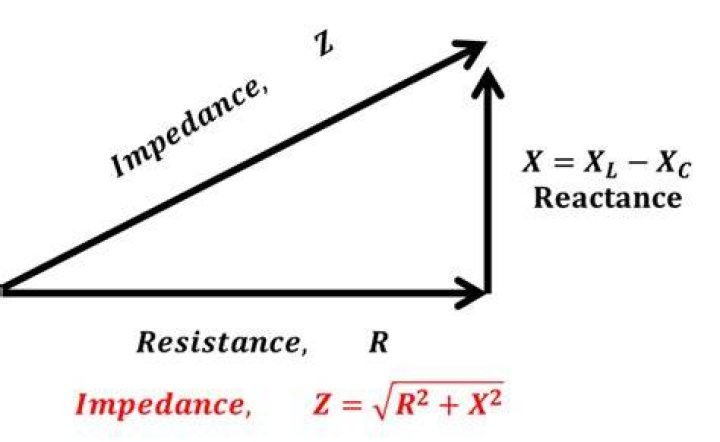

The formula Z = R + jX is represented by the picture above. You can see that: The reactances are on the y-axis (the imaginary axis) and they may go up or down, depending on wish influence is higher, the one of the capacitor or the one of the inductor. The resistance is always on the X-axis.

What unit is reactance?

Reactance is mathematically symbolized by the letter “X” and is measured in the unit of ohms (Ω).

How is reactance calculated?

The formula for calculating the inductive reactance of a coil is: inductive reactance, or X_L, is the product of 2 times p (pi), or 6.28, the frequency of the ac current, in hertz, and the inductance of the coil, in henries. X_L =2^p x f x L. L = the inductance value of the coil in henries.

What is the difference between inductance and reactance?

Inductance is a physical property of the coil or conductor, units in Henries, and is independent of the frequency of the signal in the component. Reactance, in units of Ohms, is dependent on the frequency of the signal.

What is the relationship between capacitive reactance and capacitance?

It can also be said that if the frequency or capacitance is increased, the opposition to current flow decreases; therefore, capacitive reactance, which is the opposition to current flow, is inversely proportional to frequency and capacitance.

How do you calculate inductive reactance and capacitive reactance?

This resultant is called REACTANCE; it is represented by the symbol X; and expressed by the equation X = XL − XC or X = XC − X L. Thus, if a circuit contains 50 ohms of inductive reactance and 25 ohms of capacitive reactance in series, the net reactance, or X, is 50 ohms − 25 ohms, or 25 ohms of inductive reactance.

What do you mean by reactance and impedance?

Impedance is the combination of resistance and reactance. ... Reactance is a property that opposes a change in current and is found in both inductors and capacitors. Because it only affects changing current, reactance is specific to AC power and depends on the frequency of the current.

Can reactance be negative?

Resistance is always positive, while reactance can be either positive or negative. Resistance in a circuit dissipates power as heat, while reactance stores energy in the form of an electric or magnetic field.

Why there is no reactance in direct current?

When steady dc supply is connected, there is no change of flux and hence no induced EMF is developed and inductive reactance offered to steady DC supply is zero.

How do you convert impedance to resistance?

So when using resistors in AC circuits the term Impedance, symbol Z is the generally used to mean its resistance. Therefore, we can correctly say that for a resistor, DC resistance = AC impedance , or R = Z.

What is a synonym for impedance?

electrical resistance, resistivity, immunity, ohmic resistance, underground, resistor, resistance, opposition, electric resistance.

What is low impedance?

Low impedance is in a range of approximately 4 to 16 ohms. Low impedance speakers are used in various sound systems such as household stereo system and car audio system. High impedance usually means an impedance of several-hundred ohms to several-k ohms.
